1979 Yamaha MX100 (MX100F) Rear Wheel Diagram

← All diagrams

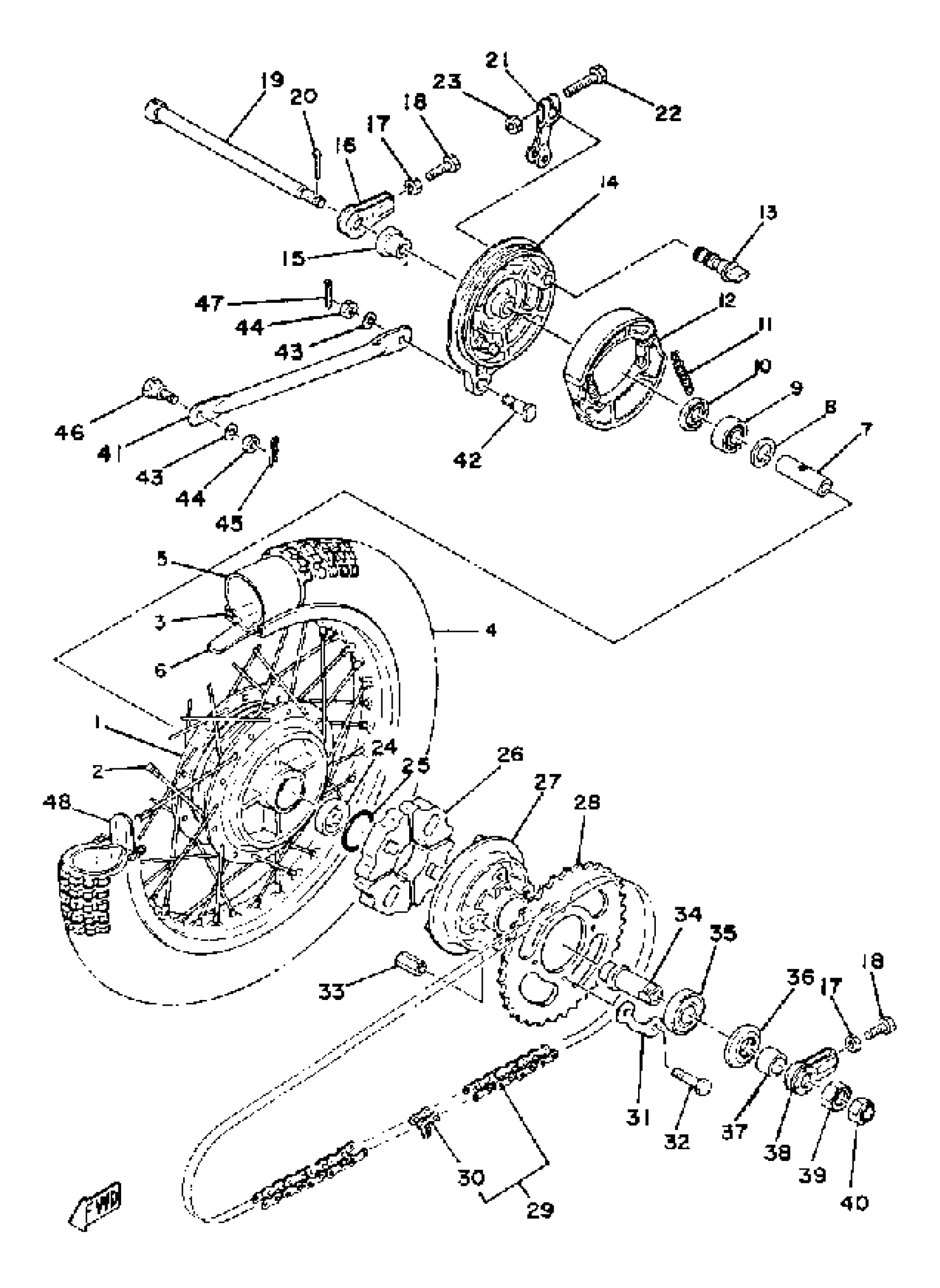

Find the part on the Rear Wheel diagram for your 1979 Yamaha MX100 (MX100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Yamaha MX100 (MX100F) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR

99999-02213-00

1
Out of stock

2

SPOKE SET

538-25304-10-00

1
Out of stock

3

RIM (1.60-16)

94416-16003-00

1

$169.42

In stock

4

TIRE (3.00-16)

94130-16368-00

1
Out of stock

5

TUBE (3.00-16)

94230-16075-00

1
Out of stock

6

BAND, RIM

94330-16058-00

1

$18.18

In stock

7

SPACER

90560-12145-00

1

$17.22

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BEARING

93306-30102-00

1
Out of stock

10

OIL SEAL (21X37X7-102)

93104-21016-00

1
Out of stock

11

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

12

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

13

CAMSHAFT

4GL-25351-00-00

1

$62.50

In stock

14

PLATE, BRAKE SHOE

1M3-25321-02-38

—

$70.18

In stock

15

COLLAR 195253830000

90387-12102-00

—
Out of stock

16

PULLER, CHAIN

241-25389-10-00

—

$32.18

In stock

17

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

18

BOLT HEXAGON 167253790000

90101-06016-00

—

$6.37

In stock

19

AXLE, WHEEL

390-25381-01-00

1
Out of stock

20

PIN, COTTER

91490-20025-00

—

$1.31

In stock

21

LEVER, CAMSHAFT

5DV-25355-00-00

1
Out of stock

22

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

23

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

24

BRG.

93306-30101-00

—

$31.58

In stock

25

O-RING (102)

93210-41041-00

—

$5.86

In stock

26

DAMPER, CLUTCH

304-25364-01-00

—

$21.12

In stock

27

CLUTCH, HUB

296-25366-01-33

—
Out of stock

28

SPROCKET, DRVN 49T

13M-25449-20-00

1
Out of stock

28

SPROCKET, DRIVEN (48T)

2U2-25448-11-00

—
Out of stock

28

SPROCKET,DRVN47T

4U5-25447-10-00

1
Out of stock

29

CHAIN, DRIVE

9Y580-52103-00

1
Out of stock

30

. JOINT, CHAIN

94600-03001-00

1
Out of stock

31

WASHER

4AW-25412-00-00

—

$4.24

In stock

32

BOLT(1AJ)

90101-08672-00

—

$2.69

In stock

33

NUT(3KX)

90179-08639-00

—

$7.95

In stock

34

SHAFT, SPROCKET

167-25387-00-00

—

$47.57

In stock

35

BEARING(3BN)

93306-00438-00

—

$32.22

In stock

36

OIL SEAL (30X42X8-102)

93106-30004-00

—

$10.98

In stock

37

COLLAR 167253860000

90387-18144-00

—
Out of stock

38

PULLER, CHAIN(L.H)

241-25388-00-00

—

$30.49

In stock

39

NUT, HEXAGON

90170-18165-00

—

$7.82

In stock

40

NUT 3532518200

90171-10004-00

—

$5.32

In stock

41

BAR, TENSION

1T9-25371-00-00

1
Out of stock

42

BOLT 1022537300

90109-08183-00

—

$6.18

In stock

43

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

44

. NUT

95380-08700-00

1

$3.07

In stock

45

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

46

BOLT (183-25378-00)

90109-08368-00

—

$7.00

In stock

47

PIN, COTTER

91490-20025-00

—

$1.31

In stock

48

SPACER, BEAD

5X2-25394-00-00

—

$42.62

In stock
