1979 Yamaha MX100 (MX100F) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1979 Yamaha MX100 (MX100F), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

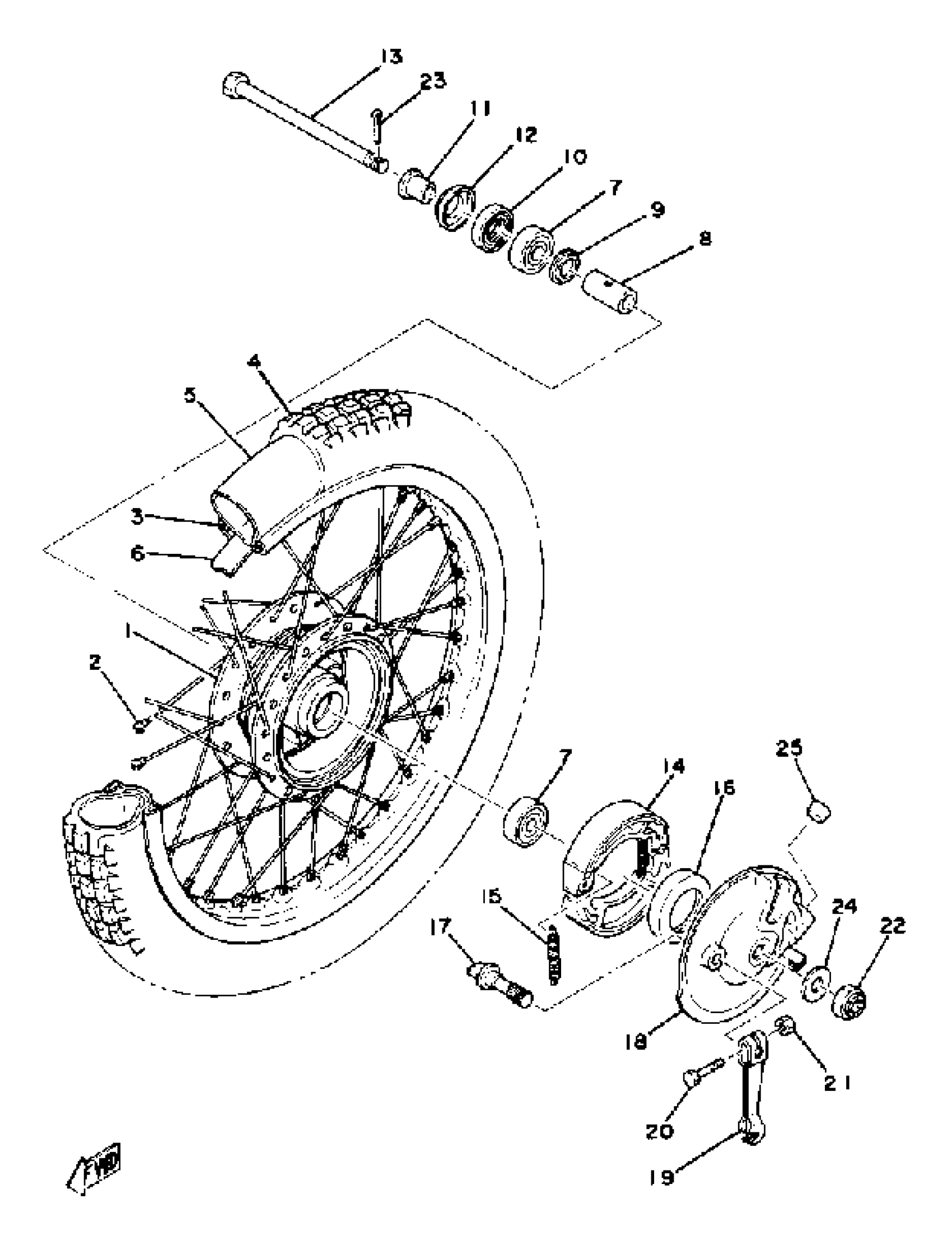

1979 Yamaha MX100 (MX100F) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

248-25111-00-98

—
Out of stock

2

SPOKE SET, FRONT

276-25104-40-00

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

4

250X18 FRONT TIRE

(94125-18533-00)

1
Out of stock

5

TUBE (5H5)

94225-18194-00

1

$31.80

In stock

6

BAND, RIM

94325-18059-00

1
Out of stock

7

BEARING

93306-30102-00

1
Out of stock

8

SPACER

90560-12138-00

—

$12.83

In stock

9

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

10

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

11

COLLAR

90387-12616-00

1
Out of stock

12

COVER HUB DUST

481-25118-01-00

1

$6.31

In stock

13

SHAFT, WHEEL (462)

90102-12015-00

1

$14.29

In stock

14

BRAKE SHOE KIT

2JL-W253E-20-00

—

$25.53

In stock

15

SPRING, TENSION (566).

90506-16150-00

1

$6.98

In stock

16

SEAL,OIL

93105-47007-00

—
Out of stock

17

CAMSHAFT

4GL-25351-00-00

—

$62.50

In stock

18

PLATE, BRAKE SHOE

3M1-25121-00-98

1
Out of stock

19

LEVER, CAMSHAFT 1

5H0-25155-00-00

1
Out of stock

20

BOLT, HEXAGON (538)

90101-06278-00

—

$1.82

In stock

21

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

22

NUT,CASTLE

90171-12058-00

1
Out of stock

23

PIN, COTTER

91490-30030-00

—

$7.15

In stock

24

WASHER, PLATE

90201-12047-00

—

$7.54

In stock

25

PLUG 288251390000

90338-18014-00

—

$7.57

In stock
