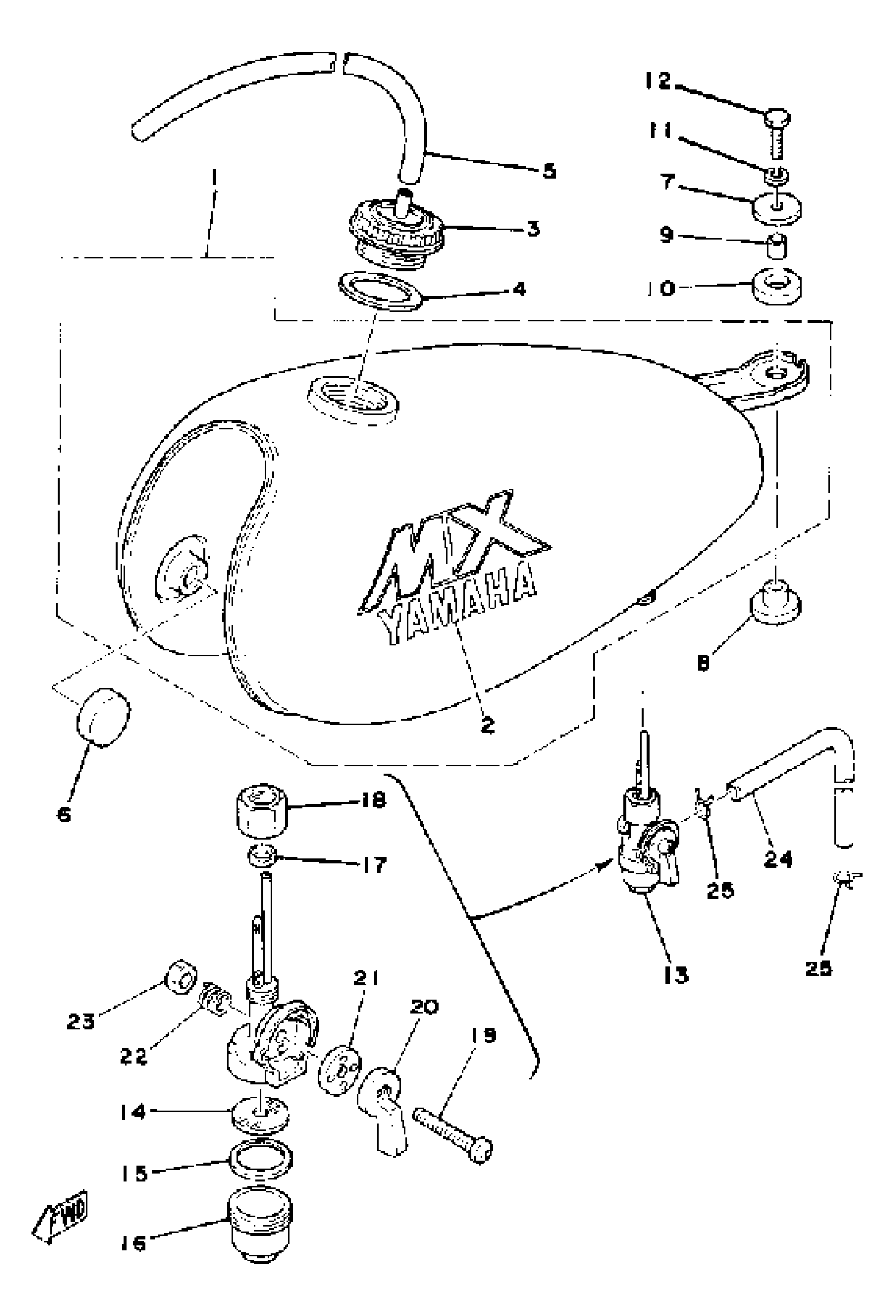

Yamaha MX100F (MX100) 1979 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(538-24110-00-W2)

Unavailable

2

GRAPHIC, FUEL TNK 1

(3M1-24244-00-00)

Unavailable

3

BODY, CAP

322-24611-02-00

$57.99

4

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

5

HOSE (L600)

90445-083J5-00

$10.49

6

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

7

WASHER PLATE 248217570000

90201-06074-00

$9.49

8

GROMMET (462)

90480-14088-00

$5.60

9

COLLAR

90387-07020-00

$8.49

10

WASHER, PLATE (462)

90202-14077-00

$4.29

11

WASHER, SPRING

92995-06100-00

Unavailable

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

FUEL COCK ASSY

367-24500-04-00

Unavailable

14

. NET, FILTER 2

355-24515-00-00

Unavailable

15

GASKET

102-24522-02-00

$5.49

16

. CUP, FILTER

122-24521-00-00

Unavailable

17

GASKET, NUT

122-24532-00-00

Unavailable

18

. NUT

603-24531-01-00

Unavailable

19

SCREW, PAN HEAD

98517-05030-00

Unavailable

20

LEVER, COCK

(355-24524-01-00)

Unavailable

21

VALVE

355-24523-00-00

Unavailable

22

WASHER, WAVE

(355-24518-00-00)

Unavailable

23

NUT, HEXAGON (663)

95380-05600-00

Unavailable

24

HOSE (L420)

90445-092K1-00

Unavailable

25

CLIP 101235600

90467-08003-00

Unavailable
