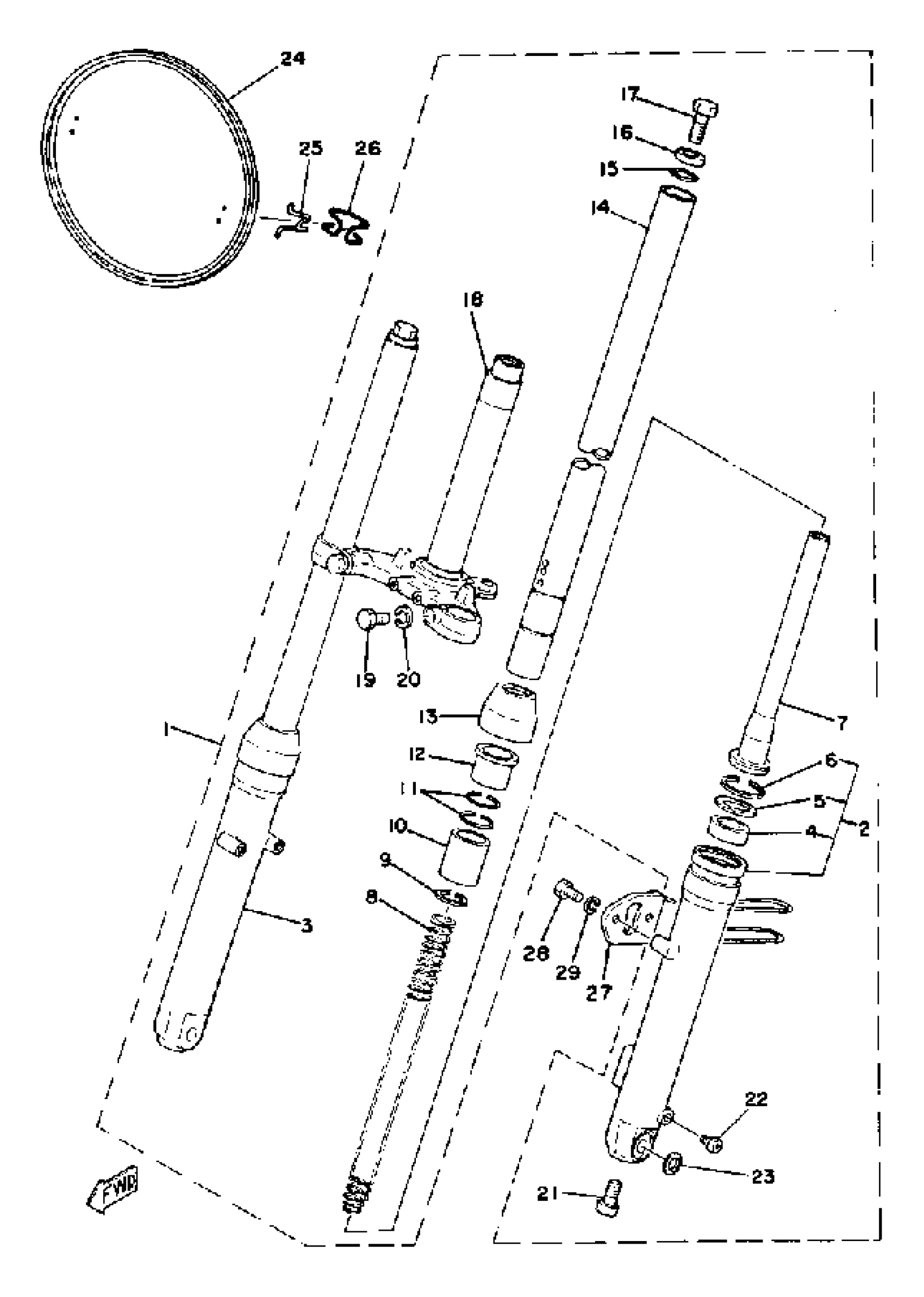

Yamaha MX100F (MX100) 1979 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(1T9-23101-00-00)

Unavailable

2

. TUBE, OUTER (LEFT)

1T9-23126-00-35

Unavailable

3

. TUBE, OUTER 2 (462-23136-02)

462-23136-02-38

Unavailable

4

OIL SEAL (5R6)

93110-27010-00

Unavailable

5

. WASHER, OIL SEAL

462-23146-02-00

Unavailable

6

. CLIP, OIL SEAL

462-23156-02-00

Unavailable

7

. CYLINDER COMP, FRONT FORK

462-23170-02-00

Unavailable

8

. SPRING, FRONT FORK

1T9-23141-00-00

Unavailable

9

. CIRCLIP

462-23183-02-00

Unavailable

10

. PISTON, FRONT FORK

462-23171-02-00

Unavailable

11

. RING, PISTON

462-23157-02-00

Unavailable

12

. METAL, SLIDE 1

462-23125-02-00

Unavailable

13

SEAL,DUST

462-23144-02-00

Unavailable

14

TUBE,INNER 1

3UL-23124-00-00

Unavailable

15

GASKET

462-23114-02-00

Unavailable

15

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

16

. WASHER, CAP

276-23112-50-00

Unavailable

17

BOLT, CAP

205-23111-40-00

Unavailable

18

UNDER BRACKET COMP.

1T9-23340-00-90

Unavailable

19

BOLT (8J7)

97013-10030-00

Unavailable

20

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

21

SCREW, PAN HEAD(6B0)

97885-06025-00

Unavailable

22

.. PLUG, DRAIN

451-23119-01-00

Unavailable

23

. WASHER, SPECIAL

462-23392-02-00

Unavailable

24

PLATE, NUMBER

(2X6-23485-00-00)

Unavailable

25

STAY, PLATE

431-23486-02-00

Unavailable

26

BAND

2J5-23489-00-00

Unavailable

27

HOLDER, CABLE 1

1T9-23318-00-00

Unavailable

28

BOLT (661)

97013-06012-00

Unavailable

29

WASHER, SPRING

92995-06100-00

Unavailable
