Description

Price

1

FLYWHL MAGNETO ASSEMBLY

(3M1-81300-20-00)

Unavailable

2

BASE, MAGNETO

437-81309-20-00

Unavailable

3

ROTOR ASSEMBLY

(3M1-81350-20-00)

Unavailable

4

. COIL, SOURCE

511-81312-20-00

Unavailable

5

SCREW, PAN HEAD

98517-04025-00

Unavailable

6

CONTACT BREAKER ASSY

2A6-81321-20-00

$49.99

7

SCREW, PAN HEAD

110-81346-21-00

$5.49

8

CONDENSER

1K8-81325-20-00

$63.99

9

. LUBRICATOR

116-81331-20-00

Unavailable

10

SCREW, PAN HEAD

110-81346-21-00

$5.49

11

LEAD WIRE ASSEMBLY

(3M1-81315-20-00)

Unavailable

12

CLAMP, LEAD

104-81328-20-00

$6.99

13

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

14

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

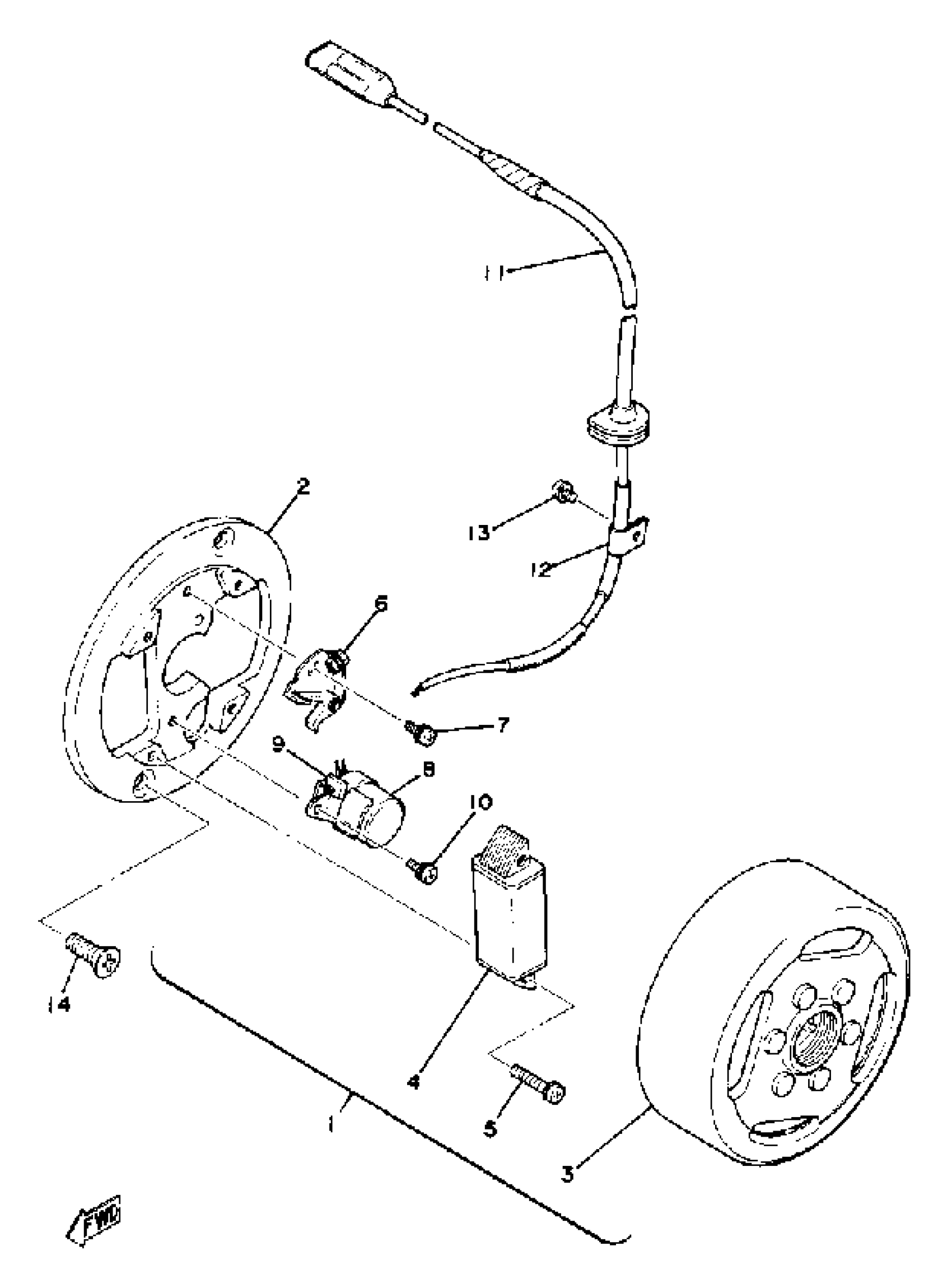

Yamaha MX100F (MX100) 1979 FLYWHEEL MAGNETO Diagram

FLYWHL MAGNETO ASSEMBLY

BASE, MAGNETO

ROTOR ASSEMBLY

. COIL, SOURCE

SCREW, PAN HEAD

CONTACT BREAKER ASSY

SCREW, PAN HEAD

CONDENSER

. LUBRICATOR

SCREW, PAN HEAD

LEAD WIRE ASSEMBLY

CLAMP, LEAD

SCREW, PAN HEAD(3XP)

SCREW, OVAL HEAD (92701-06012)
