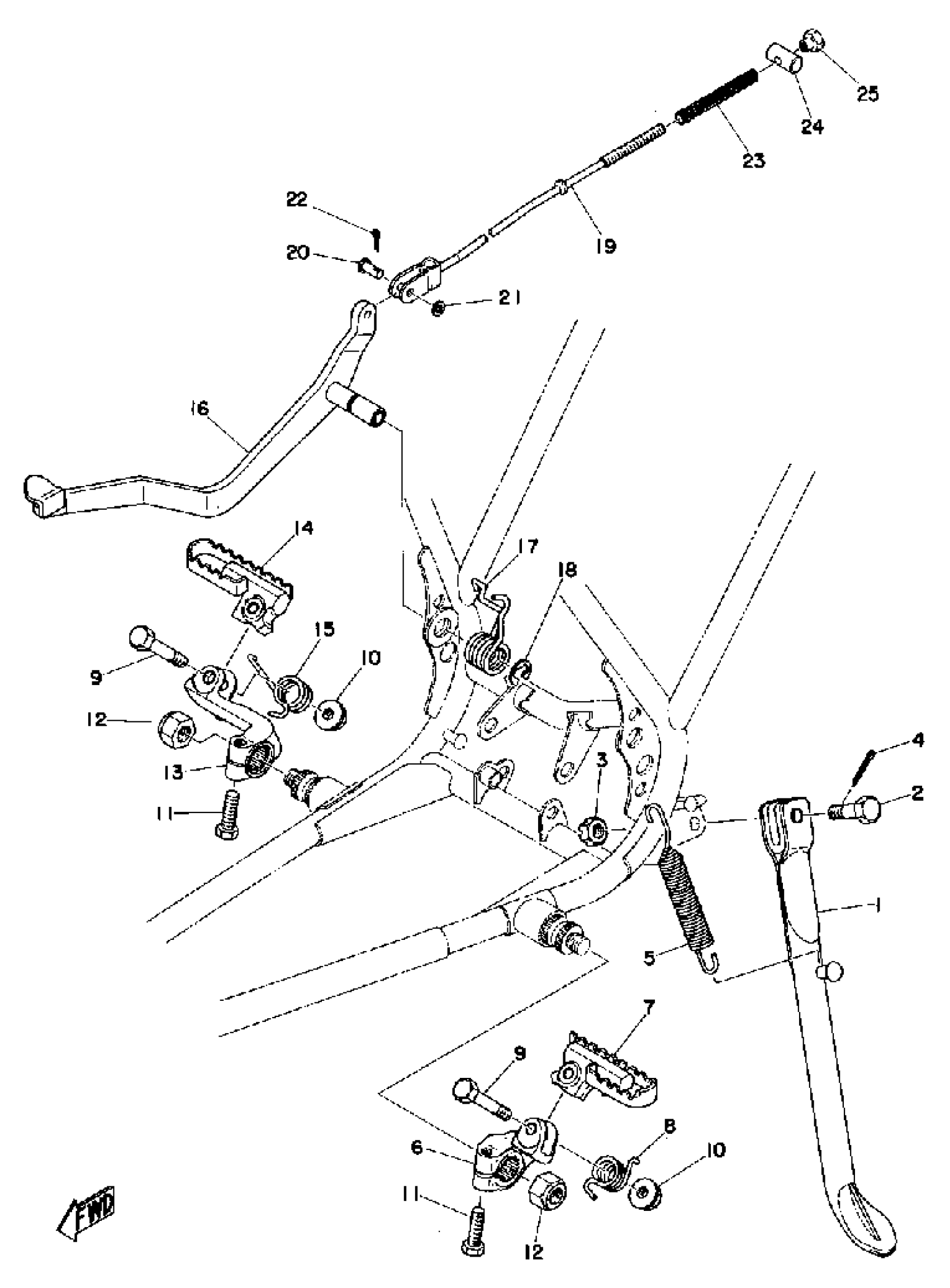

Yamaha MX100A (MX100) 1974 STAND - FOOTREST - BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

401-27311-00-00

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT, CASTLE

95307-10900-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING, TENSION (1L9)

90506-26270-00

$15.99

6

FOOTREST 1

401-27411-00-00

Unavailable

7

FOOTREST 1

401-27411-00-00

Unavailable

8

SPRING, TORSION (401-27426-00)

90508-26259-00

Unavailable

9

BOLT (157-27416-00)

90109-08376-00

Unavailable

10

NUT, U

95617-08100-00

$9.49

11

BOLT (682)

97013-08025-00

$8.49

12

NUT(3GG)

90179-12588-00

$7.49

13

BRACKET, FOOTREST 2

(401-27422-00-00)

Unavailable

14

SPRING, TORSION (401-27426-00)

90508-26259-00

Unavailable

15

SPRING, TORSION (401-27456-00)

90508-26260-00

Unavailable

16

PEDAL, BRAKE

437-27211-00-33

Unavailable

17

SPRING, TORSION

90508-40165-00

Unavailable

18

CIRCLIP (137)

93430-10015-00

Unavailable

19

ROD, BRAKE

403-27231-01-00

Unavailable

20

PIN, WITH HOLE (248-27228-00)

90240-06006-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

PIN, COTTER

91490-25020-00

Unavailable

23

SPRING, (180-27236-00)

90501-10245-00

Unavailable

24

PIN 1562723700

90249-12008-00

Unavailable

25

NUT (25K)

90179-06411-00

Unavailable
