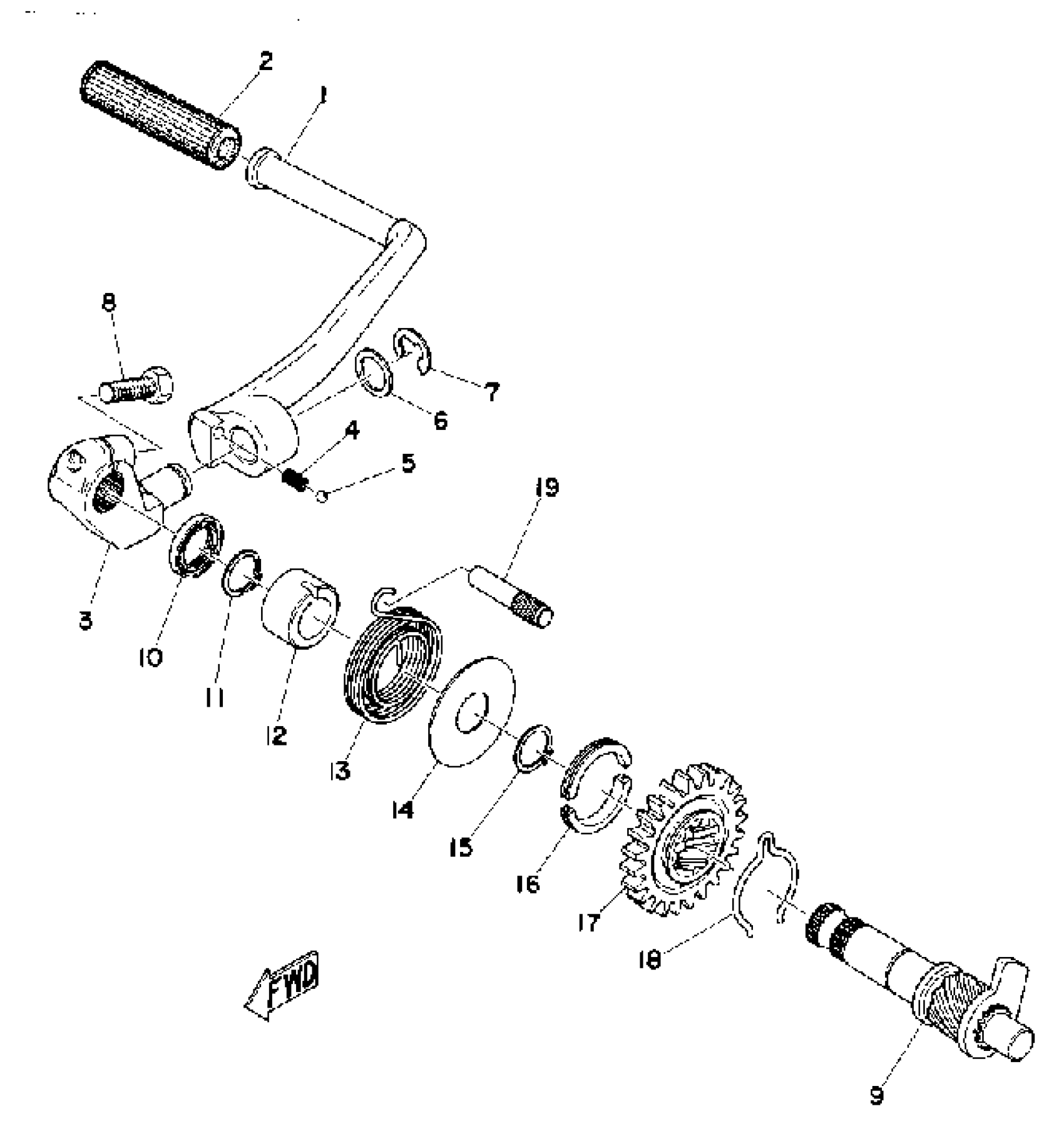

Yamaha MX100A (MX100) 1974 KICK STARTER Diagram

#

Description
Price

1

CRANK, KICK

401-15611-00-93

Unavailable

2

COVER, KICK LEVER

156-15618-01-00

$7.99

3

BOSS, KICK CRANK

401-15621-00-00

Unavailable

4

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

5

BALL (12R)

93507-32031-00

$4.73

6

WASHER PLATE 278156130000

90201-15234-00

$8.49

7

CIRCLIP

99006-10600-00

$9.49

8

BOLT, SOCKET

91317-08025-00

$8.49

9

KICK AXLE ASY

403-15660-02-00

Unavailable

10

OIL SEAL (17X25X4-401)

93101-17062-00

$14.99

11

CIRCLIP(1EY)

99009-17400-00

$4.73

12

SPACER

401-15666-00-00

Unavailable

13

SPRING TORSION 401156650000

90508-26041-00

$7.49

14

COVER, SPRING

401-15676-00-00

$7.99

15

CIRCLIP(4A6)

99009-30400-00

$8.49

16

HOLDER, KICK GEAR

248-15654-00-00

Unavailable

17

GEAR, KICK

(305-15641-00-00)

Unavailable

18

CLIP 315156870000

90468-26048-00

Unavailable

19

STOPPER, KICK SPRING

257-15668-00-00

Unavailable
