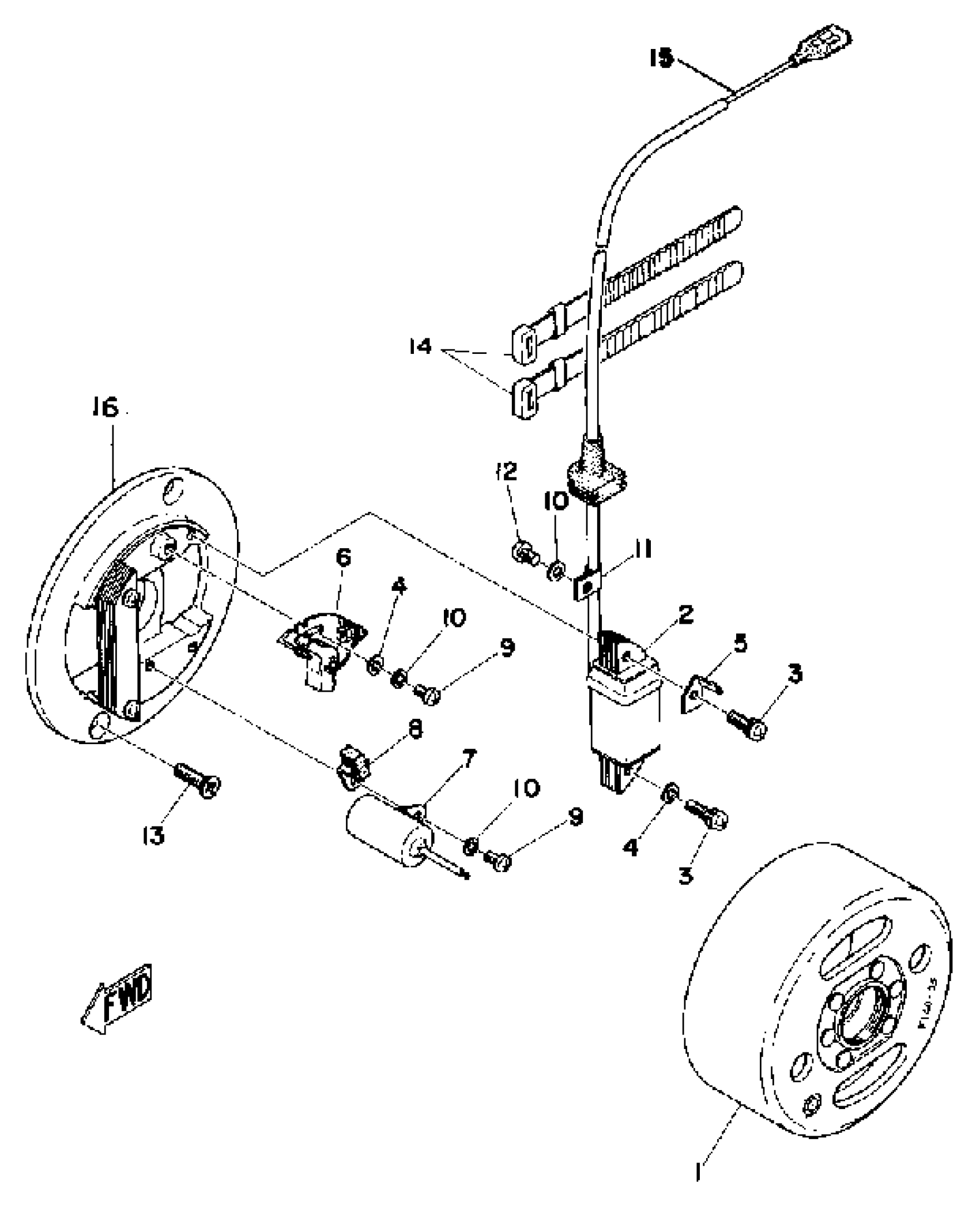

Yamaha MX100A (MX100) 1974 FLYWHEEL MAGNETO Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY

(427-81300-11-00)

Unavailable

1

ROTOR ASSEMBLY

(427-81350-11-00)

Unavailable

2

. COIL, SOURCE

296-81312-10-00

Unavailable

3

SCREW, PAN HEAD

(296-81348-11-00)

Unavailable

4

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

5

. PLATE, TIMING

296-81332-20-00

Unavailable

6

. CONTACT BREAKER ASSY

207-81321-90-00

Unavailable

7

. CONDENSER 2

207-81326-90-00

Unavailable

8

. LUBRICATOR

207-81331-10-00

Unavailable

9

SCREW, PAN HEAD

110-81346-21-00

$5.49

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

FLYWHL MAGNETO ASSEMBLY

(288-81300-11-00)

Unavailable

12

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

13

SCREW, FLAT

98707-06014-00

$8.49

14

BAND, SWITCH CORD

437-83936-01-00

$7.99

15

FLYWHL MAGNETO ASSEMBLY

(427-81300-11-00)

Unavailable

16

FLYWHL MAGNETO ASSEMBLY

(427-81300-11-00)

Unavailable
