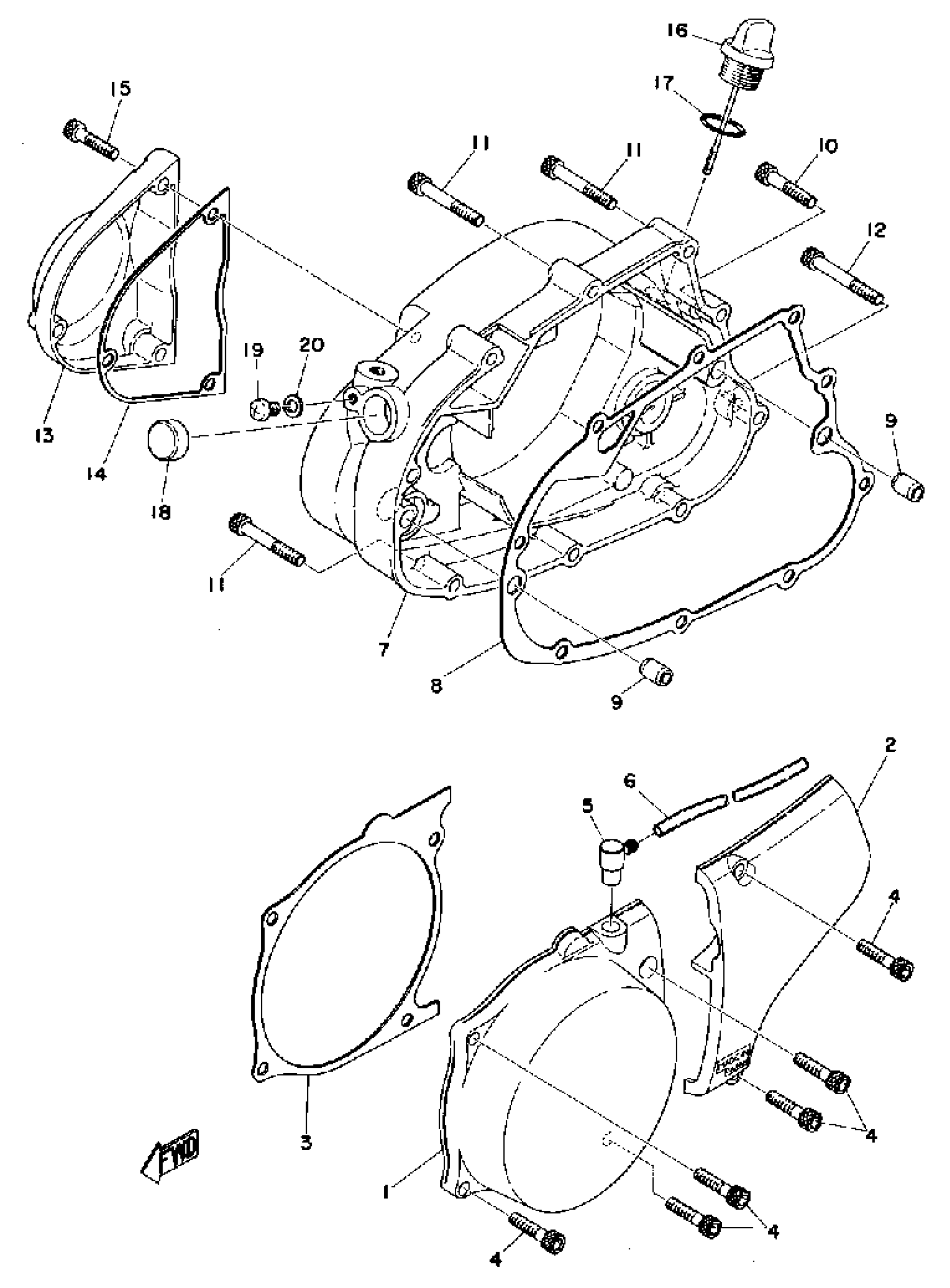

Yamaha MX100A (MX100) 1974 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE L

1X0-15411-00-00

Unavailable

2

COVER, CRANKCASE R

401-15421-00-00

Unavailable

3

GASKET 1

401-15455-01-00

Unavailable

4

BOLT,SOCKET

91317-06025-00

$5.60

5

BREATHER

583-15371-00-00

$6.99

6

HOSE

(90446-07009-00)

Unavailable

7

COVER, CRANKCASE 3

401-15431-00-00

Unavailable

8

GASKET, CRANKCASE COVER 1

3UL-15451-00-00

$20.99

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

11

BOLT,SOCKET

91317-06040-00

$3.76

12

BOLT,SOCKET

91317-06045-00

$4.99

13

COVER, OIL PUMP

1X0-15416-00-00

Unavailable

14

GASKET, OIL PUMP COVER 1

3UL-15456-01-00

$11.99

15

BOLT,SOCKET

91317-06025-00

$5.60

16

PLUG, OIL LEVEL

401-15362-00-00

Unavailable

17

O-RING (646)

93210-19123-00

Unavailable

18

PLUG 363174810000

90338-20023-00

Unavailable

19

SCREW PAN HEAD

98580-06010-00

Unavailable

20

WASHER, SPRING

92995-06100-00

Unavailable
