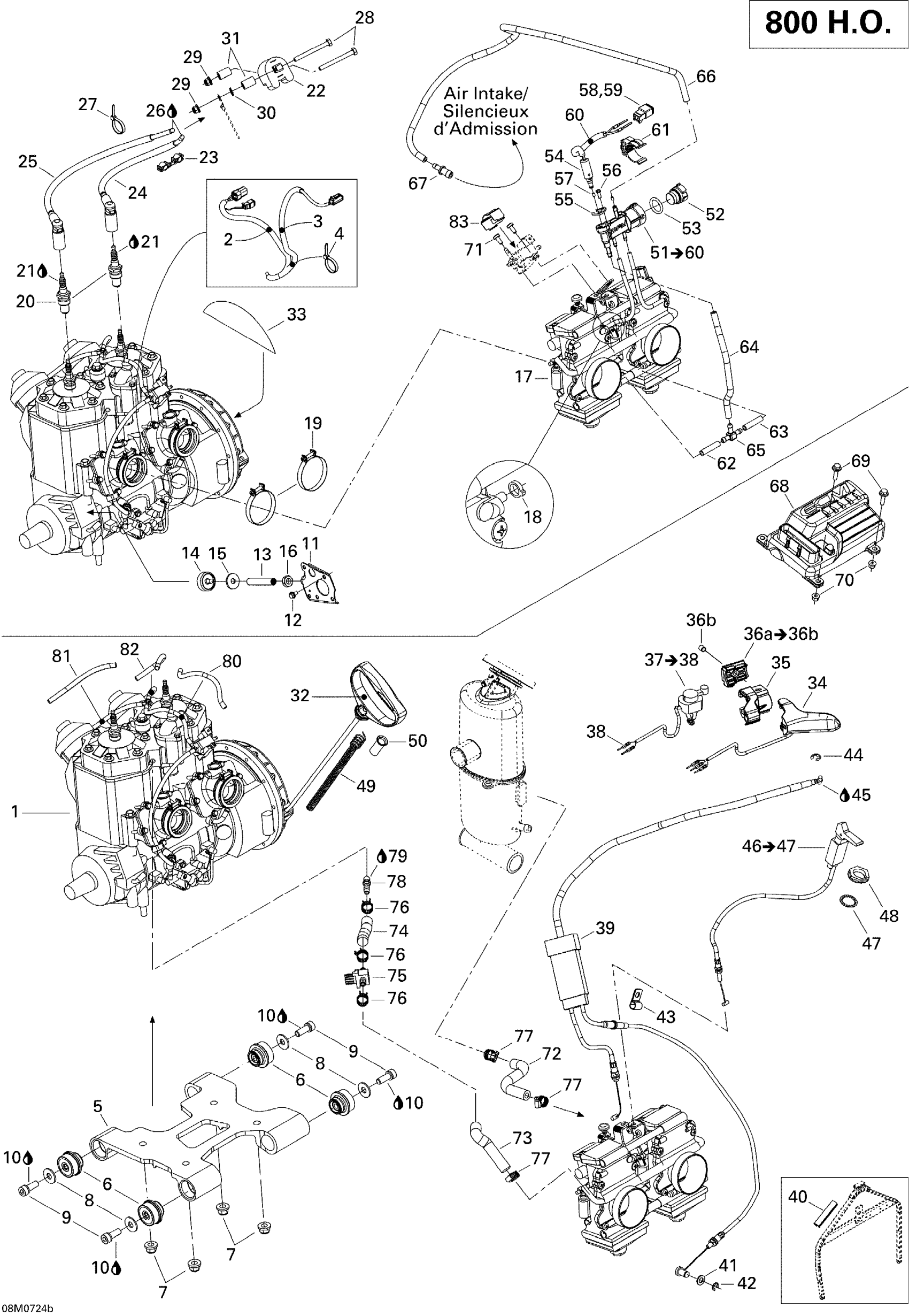

Ski-Doo MX Z XRS 800 HO PTEK, 2007 01- Engine 800HOPTEK Diagram

#

Description
Price

1

Engine 793 H.O.

400702633

Unavailable

2

Was 409901800 Tubing (13 mm)

219704400

$14.49

3

Tubing 10 MM 1000MM Long

219704407

$2.79

4

Tie Wrap 142 mm

293750002

$1.25

5

ENGINE SUPPORT - Call your local BRP dealership

512060051

Unavailable

6

Rubber Mount

512059691

$47.99

7

Hex. Flange Elastic Nut M10

233201414

$1.58

8

Flat Washer M10 | 4X4

250200014

$1.49

9

TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership

235202544

Unavailable

10

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

11

PLATE - Call your local BRP dealership

512059840

Unavailable

12

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

13

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

14

STOPPER - Call your local BRP dealership

512059610

Unavailable

15

WASHER - Call your local BRP dealership

512059057

Unavailable

16

Hex. Jam Nut M14

232170411

$1.48

17

Carburetor Kit TM40-B322

403138778

Unavailable

18

Tie Wrap 94 mm | 4X4

293750001

$1.03

19

Gemi Clamp

512059835

$11.60

20

Spark Plug NGK BR9ECS

415128524

$10.59

21

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

22

Ignition Coil

512059968

$51.99

23

Plastic Clip, Spark Plug Wire

410914600

$5.61

24

CABLE ASSY, 300 MM - Call your local BRP dealership

512059695

$57.99

25

Cable Ass’y, 375 mm

512059696

$80.99

26

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

Tie-Rap 180 mm

414115200

$0.11

28

Hex. Screw M6 X 60

207066044

$0.67

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

EXTERNAL TOOTH LOCK WASHER - Call your local BRP dealership

394001900

Unavailable

31

Spacer

517203200

$16.18

32

Starter Grip

572084400

$14.83

33

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

34

Throttle Handle Ass'y | Includes 45 to 46

512060219

Unavailable

35

LOWER HOUSING - Call your local BRP dealership

512060197

Unavailable

36a

Upper Housing Ass'y

512060198

Unavailable

36b

Socket Set Screw M8 X 10

414440800

$4.12

37

Kill Switch

515177454

$63.49

38

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

39

THROTTLE CABLE - Call your local BRP dealership

512060084

$79.99

40

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

41

Flat Washer 8 mm, Nylon

234081100

$1.39

42

Circlip

414753500

$0.71

43

TIE CLAMP - Call your local BRP dealership

293750042

Unavailable

44

Circlip

414274500

$0.90

45

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

46

CHOKE CABLE - Call your local BRP dealership | Includes 47 to 48

512059266

Unavailable

47

Lock Washer, Interior Teeth

394103300

Unavailable

48

PLASTIC NUT - Call your local BRP dealership

512059094

Unavailable

49

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

50

TUBE - Call your local BRP dealership

512059536

Unavailable

51

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

Unavailable

52

CAP - Call your local BRP dealership

270600009

Unavailable

53

O-RING - Call your local BRP dealership

293300042

Unavailable

54

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

Unavailable

55

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

56

Screw K40 X 10

241140060

$1.48

57

STARTER JET - Call your local BRP dealership

404161825

Unavailable

58

Female Terminal Housing, 2 Circuits

515175670

$8.39

59

Female Lock, 2 Circuits

515175675

$4.55

60

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

61

SUPPORT - Call your local BRP dealership

512058919

Unavailable

62

Polyurethane Hose 10000Mm Long

219704410

$56.99

63

Polyurethane Hose 10000Mm Long

219704410

$56.99

64

Polyurethane Hose 10000Mm Long

219704410

$56.99

65

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

66

Polyurethane Hose 10000Mm Long

219704410

$56.99

67

Straight Fitting

293710035

$8.89

68

CALIBRATED MODULE - Call your local BRP dealership

512060310

Unavailable

69

Hex.Flange Screw M5 X 20

207652044

$1.90

70

Hex. Flange Elastic Nut M5

233251414

$1.04

71

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

72

FORMED HOSE - Call your local BRP dealership

509000171

Unavailable

73

Was 509000407 Hose 8 mm

219704420

$50.99

74

Was 509000407 Hose 8 mm

219704420

$50.99

75

Valve 5/16” | Grand Touring 500.

512059324

$44.99

76

Spring Clamp

414655700

$0.72

77

Tridon Gear Clamp

293650170

$1.99

78

Male Connector 1/8"-27 NPT

512060196

$10.33

79

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

80

Was 409901700 Tubing (9 mm)

219704399

$84.99

81

Was 409901700 Tubing (9 mm)

219704399

$84.99

82

Was 409901700 Tubing (9 mm)

219704399

$84.99

83

Heating Element Bracket

512059809

Unavailable
