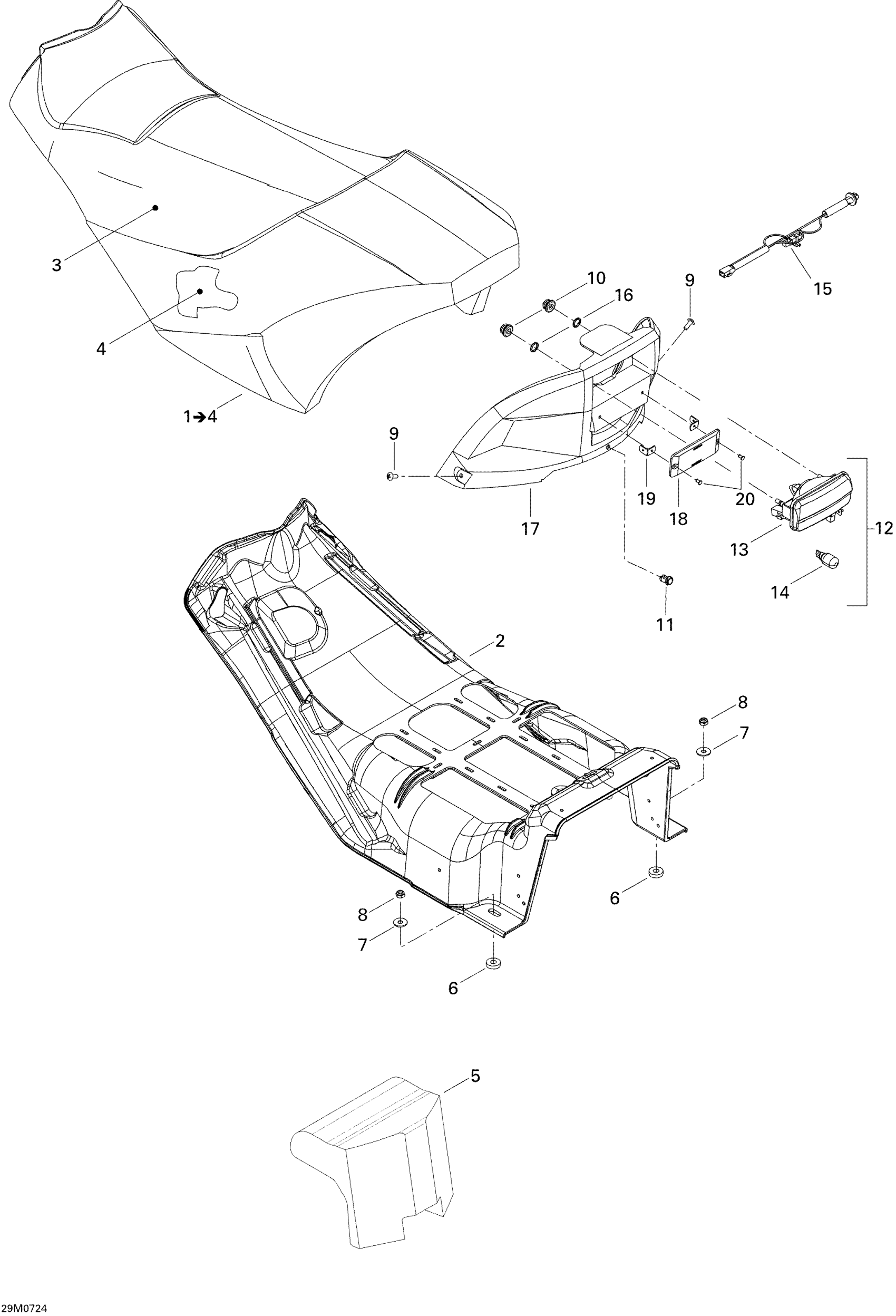

Ski-Doo MX Z XRS 600 HO SDI, 2007 09- Seat Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

SEAT BASE - Call your local BRP dealership

510004658

Unavailable

3

Seat Cover

510004770

Unavailable

4

Seat Foam Pu

510004753

Unavailable

5

FOAM EPP - Call your local BRP dealership

510004765

Unavailable

6

WASHER - Call your local BRP dealership

510004418

Unavailable

7

Flat Washer 8 mm

234082410

$1.47

8

Hex. Elastic Stop Nut M8

232581414

$0.56

9

Torx Truss Screw M6 X 16

250000721

$1.69

10

Stopper Rubber

705014429

$5.95

11

Tuflok Plastic Rivet

293150230

$1.47

12

Not Available As Spare Part - Friction Washer

Unavailable

13

Rear Lens Box | MX Z X 600RS

710000652

Unavailable

14

BULB - Call your local BRP dealership | MX Z X 600RS

710000653

Unavailable

15

WIRING HARNESS - Call your local BRP dealership | MX Z X 600RS

511000508

Unavailable

16

O-Ring

293300006

$4.44

17

Trunk

510004627

Unavailable

18

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

19

ANGLE - Call your local BRP dealership

510004443

Unavailable

20

Pop Rivet 5/32

390403000

$0.40
