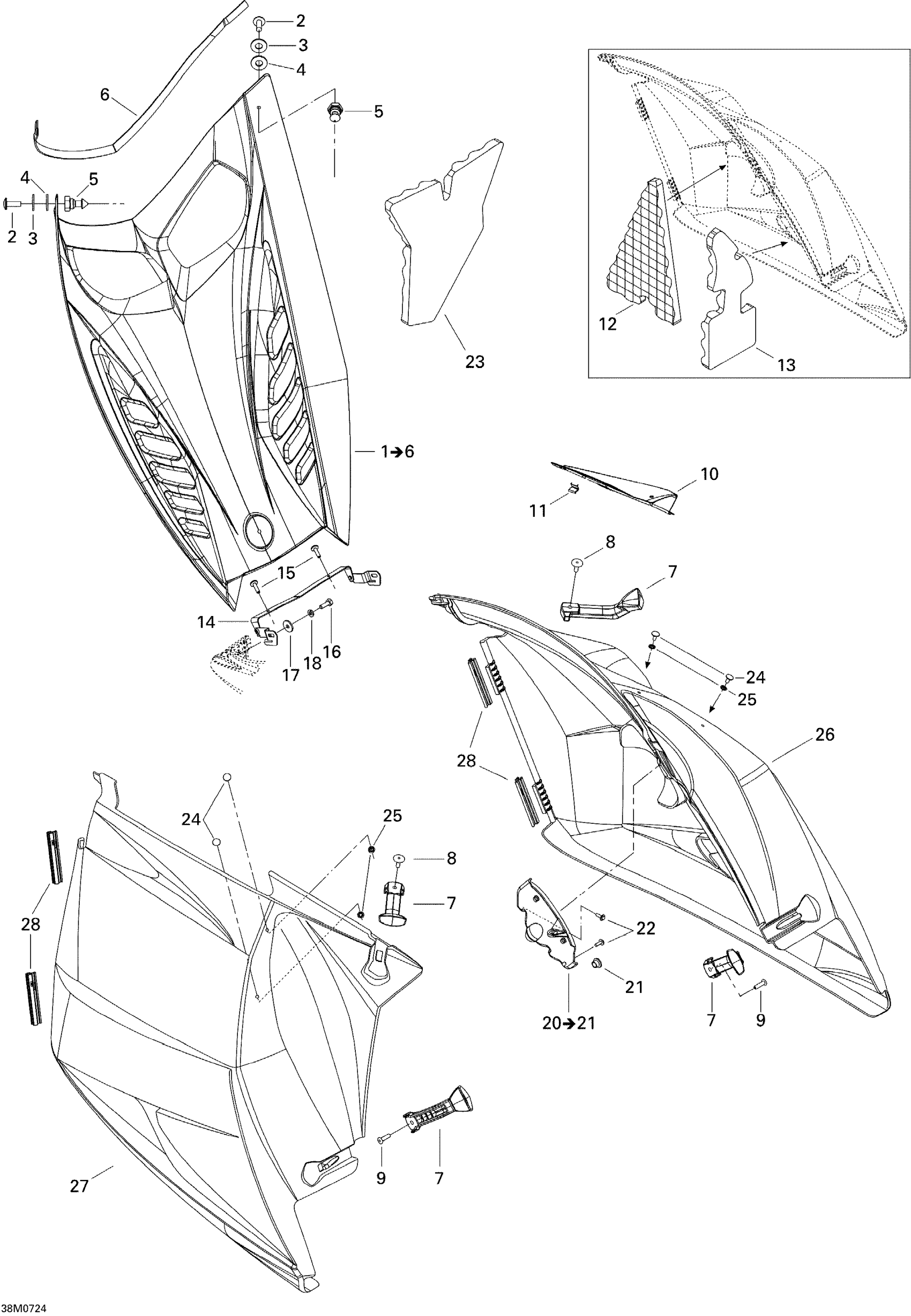

Ski-Doo MX Z XRS 600 HO SDI, 2007 09- Hood Diagram

#

Description
Price

1

Hood XRS Ass'y | Includes 1 to 6

517303706

Unavailable

2

Torx Screw M5 X 14

250000742

$1.47

3

Washer M5

250200025

$0.74

4

Rubber Washer 5 mm

250200024

$2.19

5

Knob

517303729

Unavailable

6

Gasket, Neoprene 2000Mm Long

219704476

$15.36

7

Panel Latch

517302448

$14.99

8

Pop Rivet 3/16”

293150087

$0.93

9

Pop Rivet 3/16”

390410100

$0.57

10

RH PANEL GRILL - Call your local BRP dealership

517302938

Unavailable

11

CLIP - Call your local BRP dealership

517302789

Unavailable

12

RH PANEL FRONT FOAM - Call your local BRP dealership

517303082

Unavailable

13

RH PANEL REAR FOAM - Call your local BRP dealership

517303492

Unavailable

14

HINGE - Call your local BRP dealership

517303679

Unavailable

15

Pop Rivet 3/16"

293150103

$0.55

16

Hex. Screw M6 X 18

207161844

$0.76

17

Flat Washer

224061121

$0.53

18

Lock Washer M6, Black

234161471

$0.53

20

RH CONSOLE - Call your local BRP dealership | Includes 25 to 26

517303482

Unavailable

21

Black, Cap

275500241

$3.49

22

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

23

HOOD FOAM - Call your local BRP dealership

517303755

Unavailable

24

Windshield Dart

517303070

$1.09

25

Push Nut

250100034

$1.29

26

RH PANEL, YELLOW, B-190 - Call your local BRP dealership | Black/Yellow Model

517303180

Unavailable

27

LH PANEL, YELLOW B-190 - Call your local BRP dealership

517302805

Unavailable

28

Hinge Lock

517302823

$13.99
