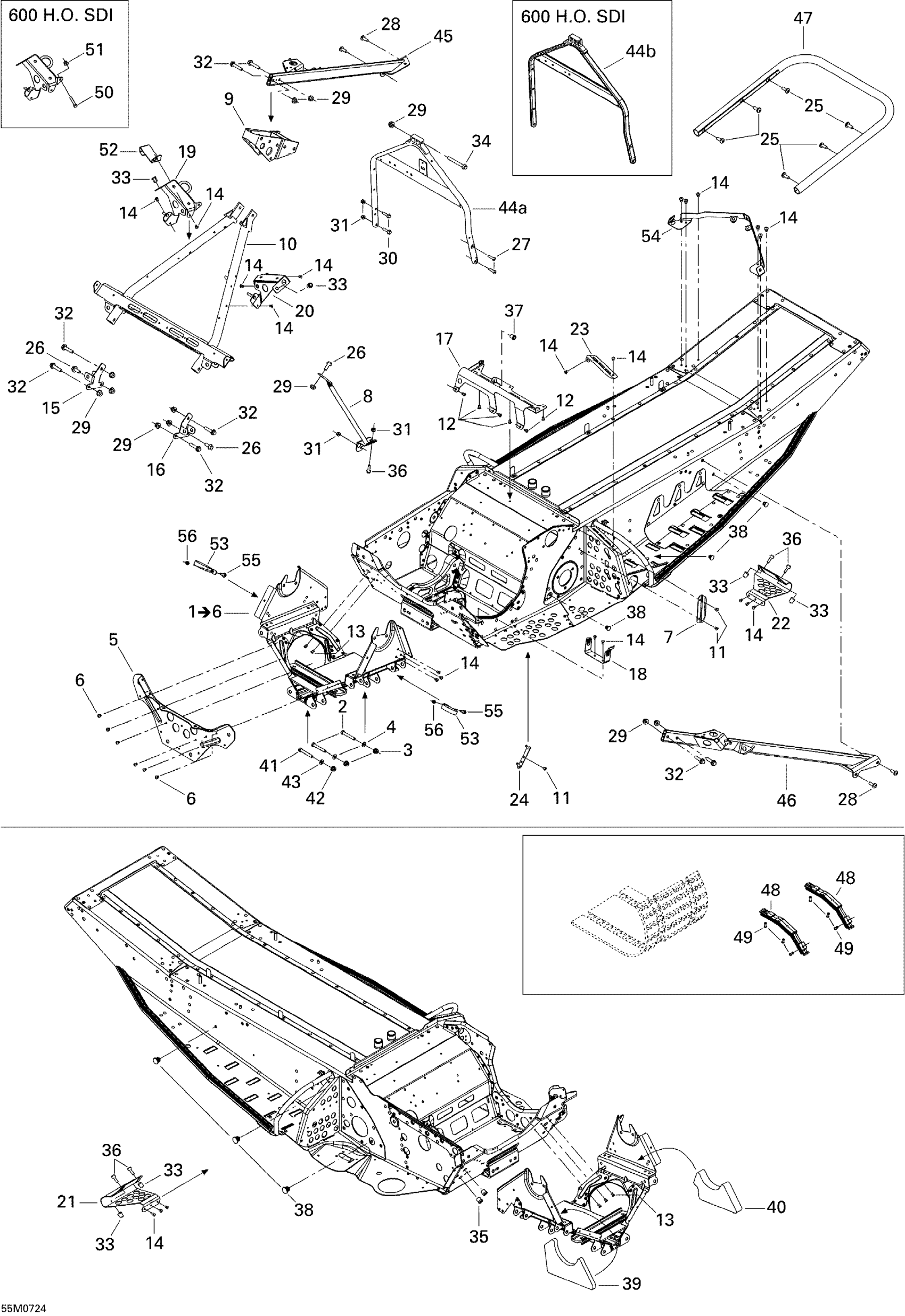

Ski-Doo MX Z XRS 600 HO SDI, 2007 09- Frame and Components 600 Diagram

#

Description
Price

1

Cross Member | Includes 1 to 6

518325423

$529.99

2

Hex. Screw M8 X 55

207085544

$1.68

3

Hex. Flange Elastic Nut M8

233281414

$1.47

4

Flat Washer 8 mm

234081410

$0.83

5

FRONT PLATE - Call your local BRP dealership

518325422

Unavailable

6

Avex Rivet

390909100

$0.30

7

CABLE PROTECTOR - Call your local BRP dealership

518317504

Unavailable

8

BRACE, BLACK - Call your local BRP dealership

518323472

Unavailable

9

BRACKET BLOCK - Call your local BRP dealership

518323854

Unavailable

10

UPPER CROSS MEMBER - Call your local BRP dealership

518324739

Unavailable

11

Pop Rivet 3/16"

390402200

$0.35

12

Pop Rivet 3/16"

390402400

$0.35

13

Avex Rivet

390909100

$0.30

14

Avex Rivet

390909200

$0.30

15

RH SHOCK BRACKET - Call your local BRP dealership

518322461

Unavailable

16

LH SHOCK BRACKET - Call your local BRP dealership

518322462

Unavailable

17

INTAKE AIR ADMISSION SUPPORT - Call your local BRP dealership

518323532

Unavailable

18

GUARD BELT BRACKET, BLACK - Call your local BRP dealership

518322726

Unavailable

19

RH Console Support

518323535

Unavailable

20

LH Console Support

518323536

Unavailable

21

RH TOE HOLD - Call your local BRP dealership

518324391

Unavailable

22

LH TOE HOLD - Call your local BRP dealership

518324392

Unavailable

23

PLATE, BLACK - Call your local BRP dealership

518323105

Unavailable

24

TRUNK BRACKET, BLACK - Call your local BRP dealership

518323896

Unavailable

25

Hex. Screw M8 X 20

236282084

$1.48

26

Hex. Flange Screw M8 X 20

207682044

$1.15

27

Socket Head Screw M6 X 20, Scotch Grip

205862044

$4.12

28

Pan Head Torx Screw M8 X 12

250000887

$1.90

29

Hex. Flange Elastic Nut M8

233281414

$1.47

30

Hex. Flange Screw M6 X 25

207662544

$0.64

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

32

Hex. Flange Screw M8 X 35

207683544

$1.69

33

Insert

293450275

$12.99

34

Hex. Flange Screw M8 X 70

207687044

$7.41

35

Insert

293450166

$4.29

36

Hex. Flange Screw M6 X 20

207662044

$2.00

37

Threaded Insert M6 X 1.0

250100242

Unavailable

38

Panel Fastener

518321954

$7.69

39

RH FRONT FOAM - Call your local BRP dealership

518323453

Unavailable

40

LH FRONT FOAM - Call your local BRP dealership

518323007

Unavailable

41

Hex. Screw M8 X 55

207085544

$1.68

42

Hex. Flange Elastic Nut M8

233281414

$1.47

43

Flat Washer 8 mm

234081410

$0.83

44a

Not Available As Spare Part - Friction Washer

Unavailable

44b

HANDLE SUPPORT - Call your local BRP dealership

518324505

Unavailable

45

RH MEMBER - Call your local BRP dealership

518324182

Unavailable

46

LH Member

518324183

Unavailable

47

REAR BUMPER - Call your local BRP dealership

518325226

Unavailable

48

Front Protector

518324071

Unavailable

49

Pop Rivet 3/16”

390410100

$0.57

50

Hex. Flange Screw M6 X 35

207063544

$1.37

51

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

52

BRACKET - Call your local BRP dealership

518325230

Unavailable

53

RETAINER - Call your local BRP dealership

518325231

Unavailable

54

BRACKET ASS'Y - Call your local BRP dealership

518325236

Unavailable

55

Hex.Flange Screw M5 X 20

207652044

$1.90

56

Hex. Flange Elastic Nut M5

233251414

$1.04
