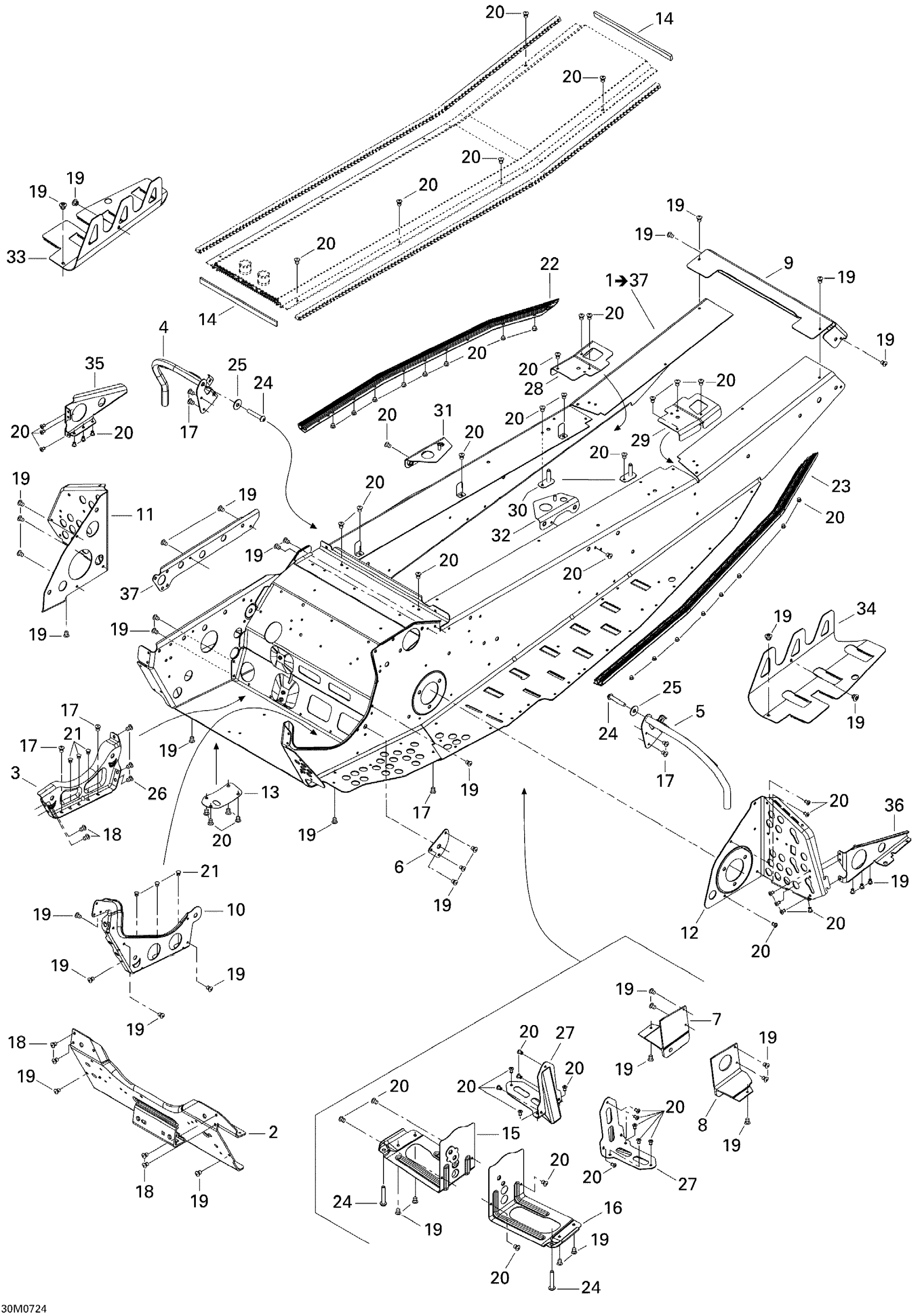

Ski-Doo MX Z XRS 600 HO SDI, 2007 09- Frame Diagram

#

Description
Price

1

Frame | Includes 1 to 37

415129234

Unavailable

2

FRONT PAN - Call your local BRP dealership

518323239

Unavailable

3

ENGINE SUPPORT, BLACK - Call your local BRP dealership

518323346

Unavailable

4

RH TOE HOLD SUPPORT - Call your local BRP dealership

518324162

Unavailable

5

LH TOE HOLD SUPPORT - Call your local BRP dealership

518324163

Unavailable

6

OUTER REINFORCEMENT - Call your local BRP dealership

518323507

Unavailable

7

RH SLIDE BRACKET - Call your local BRP dealership

518324488

Unavailable

8

LH SLIDE BRACKET - Call your local BRP dealership

518324489

Unavailable

9

Rear Cap

518325252

Unavailable

10

INNER REINFORCEMENT, BLACK - Call your local BRP dealership

518323241

Unavailable

11

RH Footrest Reinforcement

518323805

Unavailable

12

LH FOOTREST REINFORCEMENT - Call your local BRP dealership

518324527

Unavailable

13

PLATE - Call your local BRP dealership

518324169

Unavailable

14

GASKET - Call your local BRP dealership

293200104

Unavailable

15

RH Reinforcement, Black

518324634

Unavailable

16

LH REINFORCEMENT, BLACK - Call your local BRP dealership

518324635

Unavailable

17

Avex Rivet

390909200

$0.30

18

Avex Rivet

390909100

$0.30

19

Pop Rivet 3/16"

390402200

$0.35

20

Pop Rivet 3/16"

390402400

$0.35

21

HENROB RIVET - Call your local BRP dealership

390910300

Unavailable

22

RH Roller

518324953

Unavailable

23

LH ROLLER - Call your local BRP dealership

518324954

Unavailable

24

SOCKET HEAD SCREW M8 X 20, SCOTCH GRIP - Call your local BRP dealership | Package Hunter

205982086

Unavailable

25

Flat Washer 8 mm

234082410

$1.47

26

Hemlock Rivet, 6.5 mm

293150096

$3.27

27

CENTER REINFORCEMENT - Call your local BRP dealership

518325242

Unavailable

28

RH FRAME REINFORCEMENT - Call your local BRP dealership

518324431

Unavailable

29

LH FRAME REINFORCEMENT - Call your local BRP dealership

518324432

Unavailable

30

Tank Bracket

518322791

Unavailable

31

RH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324385

Unavailable

32

LH FRAME REINFORCEMENT, BLACK - Call your local BRP dealership

518324386

Unavailable

33

RH LINER TUNNEL, YELLOW - Call your local BRP dealership

518325266

Unavailable

34

LH LINER TUNNEL, YELLOW - Call your local BRP dealership

518325267

Unavailable

35

RH BRACKET - Call your local BRP dealership

518323187

Unavailable

36

LH BRACKET - Call your local BRP dealership

518323188

Unavailable

37

RH TUNNEL STIFFENER - Call your local BRP dealership

518323328

Unavailable
