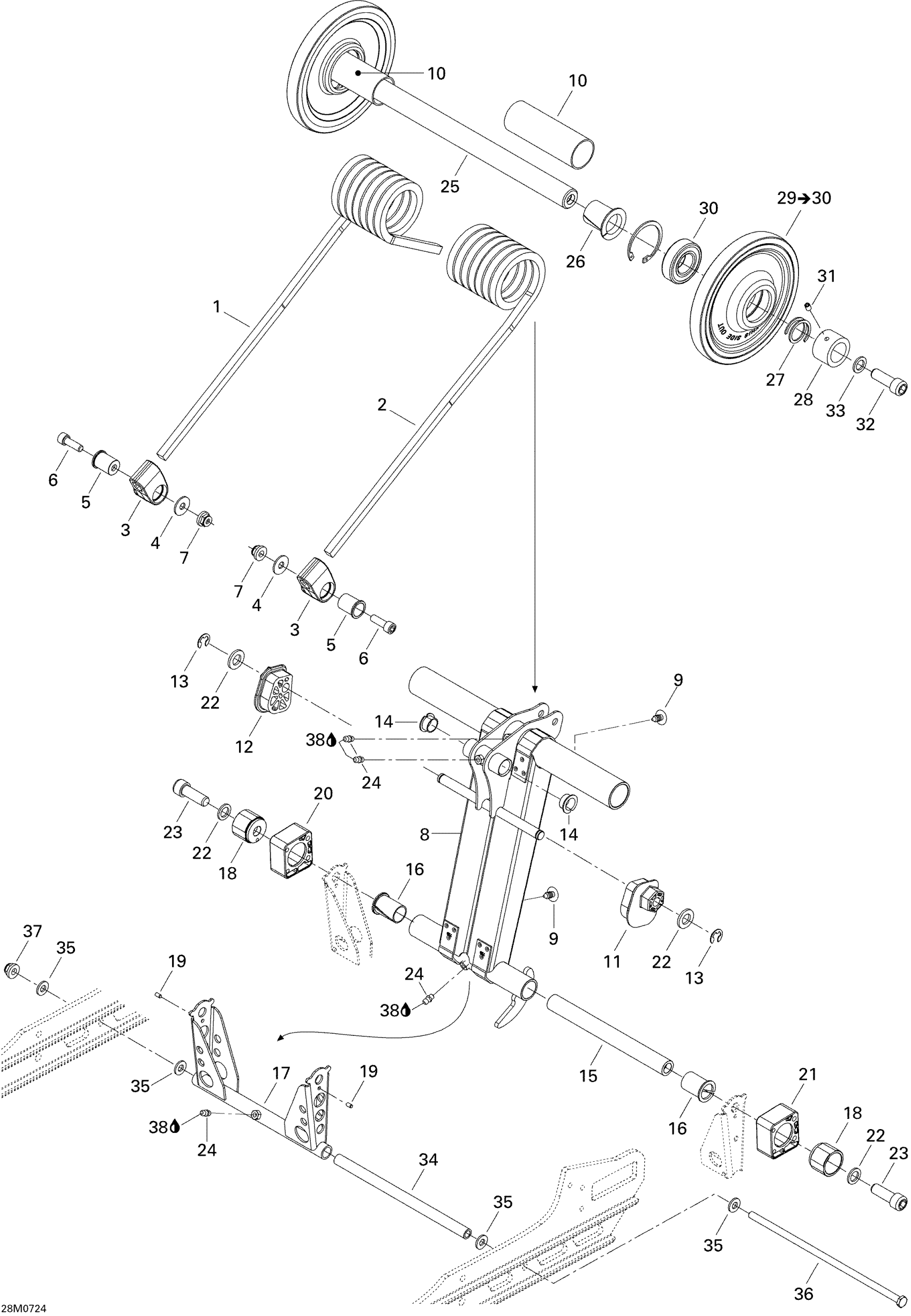

Ski-Doo MX Z XRS 600 HO SDI, 2007 08- Rear Arm Diagram

#

Description
Price

1

RH Spring

503191287

$79.49

2

LH Spring

503191289

$79.49

3

SPRING SUPPORT - Call your local BRP dealership

503191539

Unavailable

4

Flat Washer 8 mm

234082410

$1.47

5

Spring Support Kit

861805547

$10.49

6

Socket Head Screw M8 X 25

205082544

$1.15

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Rear Arm

503191119

Unavailable

9

Black, Dart

414644300

$0.98

10

Plastic Bushing

503191041

Unavailable

11

LH CAM ADJUSTER - Call your local BRP dealership

503190023

Unavailable

12

RH CAM ADJUSTER - Call your local BRP dealership

503190022

Unavailable

13

E-Circlip

293370013

$0.65

14

Swivel Bushing

503191555

$7.83

15

Lower Shaft

503192330

$45.99

16

Cushion

503191640

$5.93

17

PIVOT ARM - Call your local BRP dealership

503191091

Unavailable

18

Block Guide

503189488

$39.99

19

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

20

RH Block, 4 Positions

503190622

Unavailable

21

LH Block, 4 Positions

503191563

Unavailable

22

Washer | 7415/7416. 7417/7418.

503189148

$2.85

23

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

24

Grease Fitting

408200700

$3.49

25

Upper Shaft

503191360

Unavailable

26

CUSHION - Call your local BRP dealership

503190619

$4.49

27

Axle Spring

503189146

$9.59

28

RETAINER RING - Call your local BRP dealership

503190570

Unavailable

29

WHEEL 155 ASS'Y - Call your local BRP dealership | Includes 28 to 29

503191046

Unavailable

30

Ball Bearing

293350115

$12.11

31

Socket Set Screw M6 X 8

206260844

$1.48

32

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

33

Washer

503189276

$3.28

34

Pivot Arm Axle

503189156

$21.99

35

Washer

503189157

$3.28

36

Bolt M8 X 248mm

503192440

$30.49

37

Hex. Flange Elastic Nut M8

233281414

$1.47

38

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable
