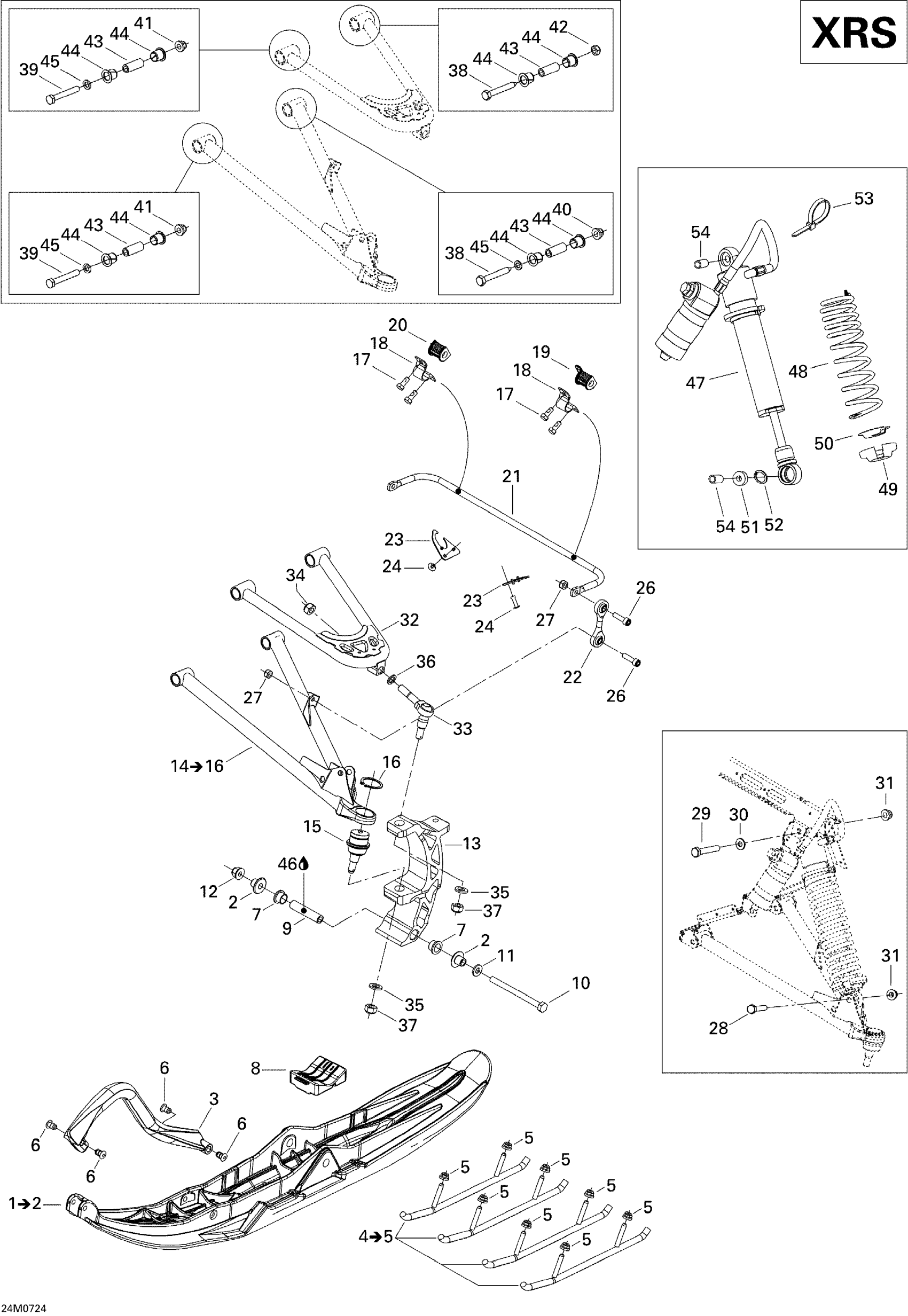

Ski-Doo MX Z XRS 600 HO SDI, 2007 Front Suspension And Ski Diagram

#

Description
Price

1

RH Pilot SKI 5.7, Blue | Includes 1 to 2

505072156

Unavailable

1

LH Pilot SKI 5.7, Blue | Includes 1 to 2

505072157

Unavailable

2

Ski Bushing

505071781

$14.90

3

Yellow Handle | Model-MX-Z TNT

505070917

$40.27

4

Carbide Runner Kit (Rond Runner) | Includes 10f to 10f1

860201220

$130.57

5

Hex. Flange Elastic Nut M8

233281414

$1.31

6

Retainer 17mm long

505071812

$4.30

7

Leg Bushing

505072690

$5.75

8

Ski Stopper

505071779

$15.64

9

BUSHING - Call your local BRP dealership

505071271

Unavailable

10

Hex. Screw M10 X 130 | Model-RT STD

250000703

$8.64

11

Washer

732900049

$0.55

12

Flange Nut M10

732610084

$6.30

13

RH SKI LEG - Call your local BRP dealership

505071395

Unavailable

13

LH SKI LEG - Call your local BRP dealership

505071396

Unavailable

14

RH Lower Arm Ass'y | Includes 14 to 16

860513200

Unavailable

14

LH Lower Arm Ass'y | Includes 14 to 16

860513500

Unavailable

15

Ball Joint

505073636

$48.48

16

Circlip

293370035

$2.48

17

Hex. Screw With Nylon

250000118

Unavailable

18

CLAMP - Call your local BRP dealership

506095800

Unavailable

19

LH BUSHING - Call your local BRP dealership

505071475

Unavailable

20

RH BUSHING - Call your local BRP dealership

505071476

Unavailable

21

STABILISATOR - Call your local BRP dealership

505071477

Unavailable

22

BALL JOINT - Call your local BRP dealership

505071479

Unavailable

23

PLUG - Call your local BRP dealership

505071253

Unavailable

24

Pop Rivet 3/16"

293150103

$0.52

26

Socket Head Screw M8 X 30

205083044

$1.06

27

Hex. Elastic Stop Nut M8

232581414

$0.54

28

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

29

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

30

Washer

503189564

$0.70

31

Hex. Flange Elastic Nut M10

233201414

$1.45

32

RH UPPER ARM, BLUE - Call your local BRP dealership

505072074

Unavailable

32

LH UPPER ARM, BLUE - Call your local BRP dealership

505072075

Unavailable

33

Upper Ball Joint

505072049

Unavailable

34

Hex. Flange Elastic Nut M12

250000047

$1.79

35

Flat Washer 12 mm

234021410

$0.66

36

Washer

503189276

$3.10

37

Hex. Flange Elastic Nut M12

250000047

$1.79

38

Hex. Screw M10 X 75

250001063

$11.18

39

Hex. Screw M10 X 75

250001063

$11.18

40

Hex. Flange Elastic Nut M10

250100165

$0.81

41

Hex. Flange Elastic Nut M10

250100165

$0.81

42

Hex. Flange Elastic Nut M10

250100165

$0.81

42

Elastic Flange Nut M10

232501416

$1.43

43

Aluminium Bushing

505070960

$10.84

44

Arm Bushing

505070566

$3.04

45

Washer

503189564

$0.70

46

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

47

RH Front Shock

505071995

Unavailable

47

LH Front Shock

505071996

Unavailable

48

YELLOW SPRING - Call your local BRP dealership | EUR

505072187

Unavailable

49

Spring Stopper

505072635

$32.81

50

Cap

505071199

Unavailable

51

RADIAL BALL-JOINT - Call your local BRP dealership

414562900

Unavailable

52

INTERIOR CIRCLIP - Call your local BRP dealership

371910600

Unavailable

53

Tie-Rap 180 mm

414115200

$0.10

54

BUSHING - Call your local BRP dealership

506120200

Unavailable
