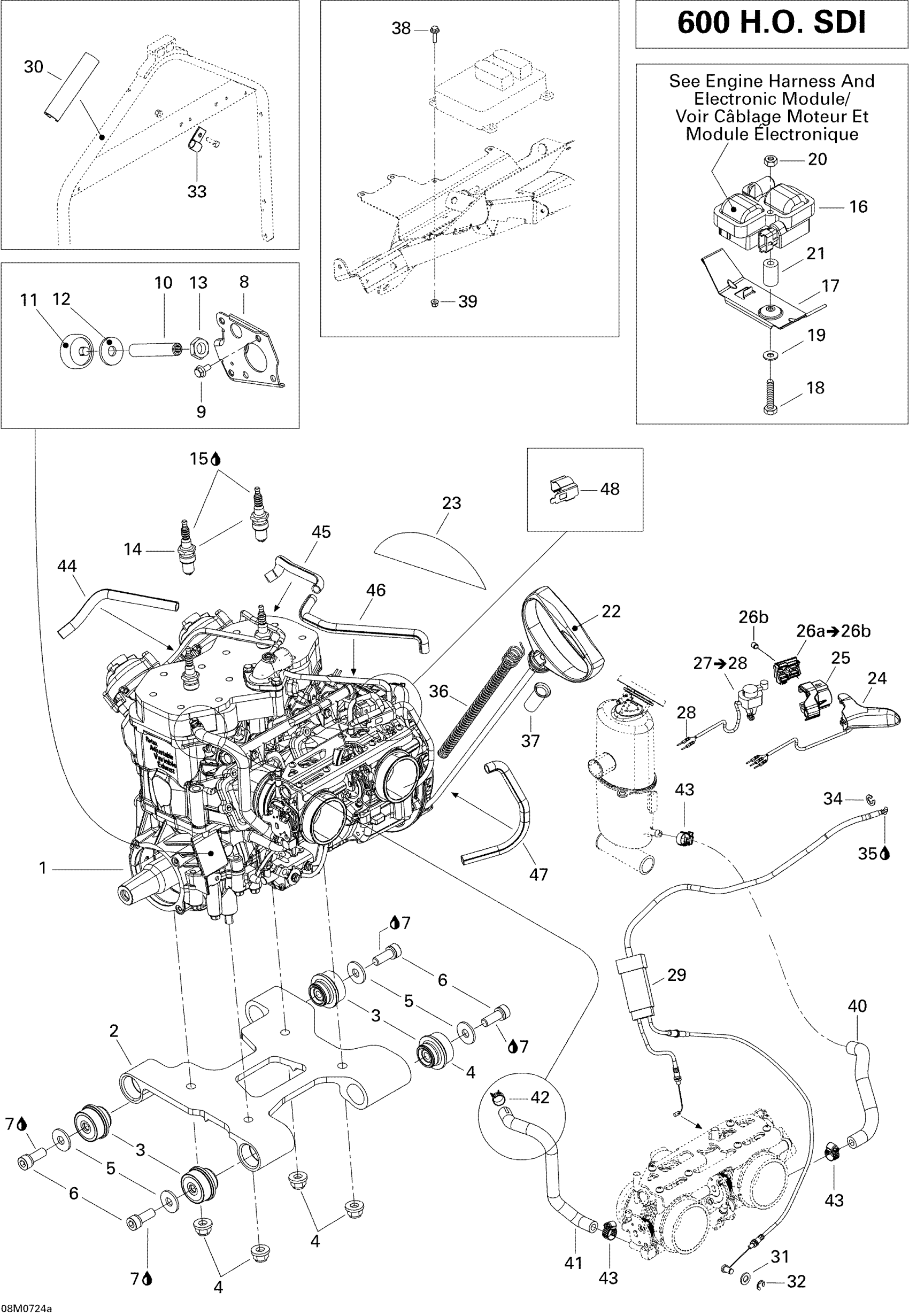

Ski-Doo MX Z XRS 600 HO SDI, 2007 Engine 600HOSDI Diagram

#

Description
Price

1

Engine 593 H.O. SDI

400509773

Unavailable

2

ENGINE SUPPORT - Call your local BRP dealership

512060051

Unavailable

3

Rubber Mount

512059691

$44.58

4

Hex. Flange Elastic Nut M10

233201414

$1.26

5

Flat Washer M10 | 4X4

250200014

$1.17

6

TORX LOW HEAD SOCKET SCREW M10 X 25 - Call your local BRP dealership

235202544

Unavailable

7

Sealant LOCTITE 222MS - Call your local BRP dealership

413703400

Unavailable

8

PLATE - Call your local BRP dealership

512059840

Unavailable

9

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.56

10

STOPPER SCREW - Call your local BRP dealership

250500007

Unavailable

11

STOPPER - Call your local BRP dealership

512059610

Unavailable

12

WASHER - Call your local BRP dealership

512059057

Unavailable

13

Hex. Jam Nut M14

232170411

$1.25

14

Spark Plug NGK BR8ECS

512060029

$9.70

15

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

16

Ignition Coil

278001546

$129.32

17

COIL SUPPORT - Call your local BRP dealership

512059865

Unavailable

18

Hex. Screw M6 X 45

207064544

$2.02

19

Flat Washer 6 mm

234061410

$1.04

20

Elastic Stop Nut M6

232561414

$1.55

21

SPACER - Call your local BRP dealership

512059812

Unavailable

22

Starter Grip

572084400

$14.54

23

REFLECTIVE SHEET - Call your local BRP dealership

512059893

Unavailable

24

Throttle Handle Ass'y | Includes 45 to 46

512060219

Unavailable

25

LOWER HOUSING - Call your local BRP dealership

512060197

Unavailable

26a

Upper Housing Ass'y

512060198

Unavailable

26b

Socket Set Screw M8 X 10

414440800

$4.00

27

Kill Switch

515177454

Unavailable

28

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

29

THROTTLE CABLE - Call your local BRP dealership

512060086

Unavailable

30

PROTECTOR - Call your local BRP dealership

512059750

Unavailable

31

Flat Washer 8 mm, Nylon

234081100

$1.00

32

Circlip

414753500

$0.59

33

TIE CLAMP - Call your local BRP dealership

293750042

Unavailable

34

Circlip

414274500

$0.74

35

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66

36

ROPE GUIDE - Call your local BRP dealership

512059535

Unavailable

37

TUBE - Call your local BRP dealership

512059536

Unavailable

38

Hex.Flange Screw M5 X 20

207652044

$1.56

39

Hex. Flange Elastic Nut M5

233251414

$1.66

40

FORMED HOSE - Call your local BRP dealership

512059563

Unavailable

41

HOSE-FORMED - Call your local BRP dealership This part replaces 512059990.

605354601

Unavailable

42

Universal Spring Clamp

513033029

$5.11

43

Tridon Gear Clamp

293650170

$1.74

44

Was 409901700 Tubing (9 mm)

219704399

$79.97

45

Was 409901700 Tubing (9 mm)

219704399

$79.97

46

Was 409901700 Tubing (9 mm)

219704399

$79.97

47

Was 409901700 Tubing (9 mm)

219704399

$79.97

48

Heating Element Bracket

512059809

Unavailable
