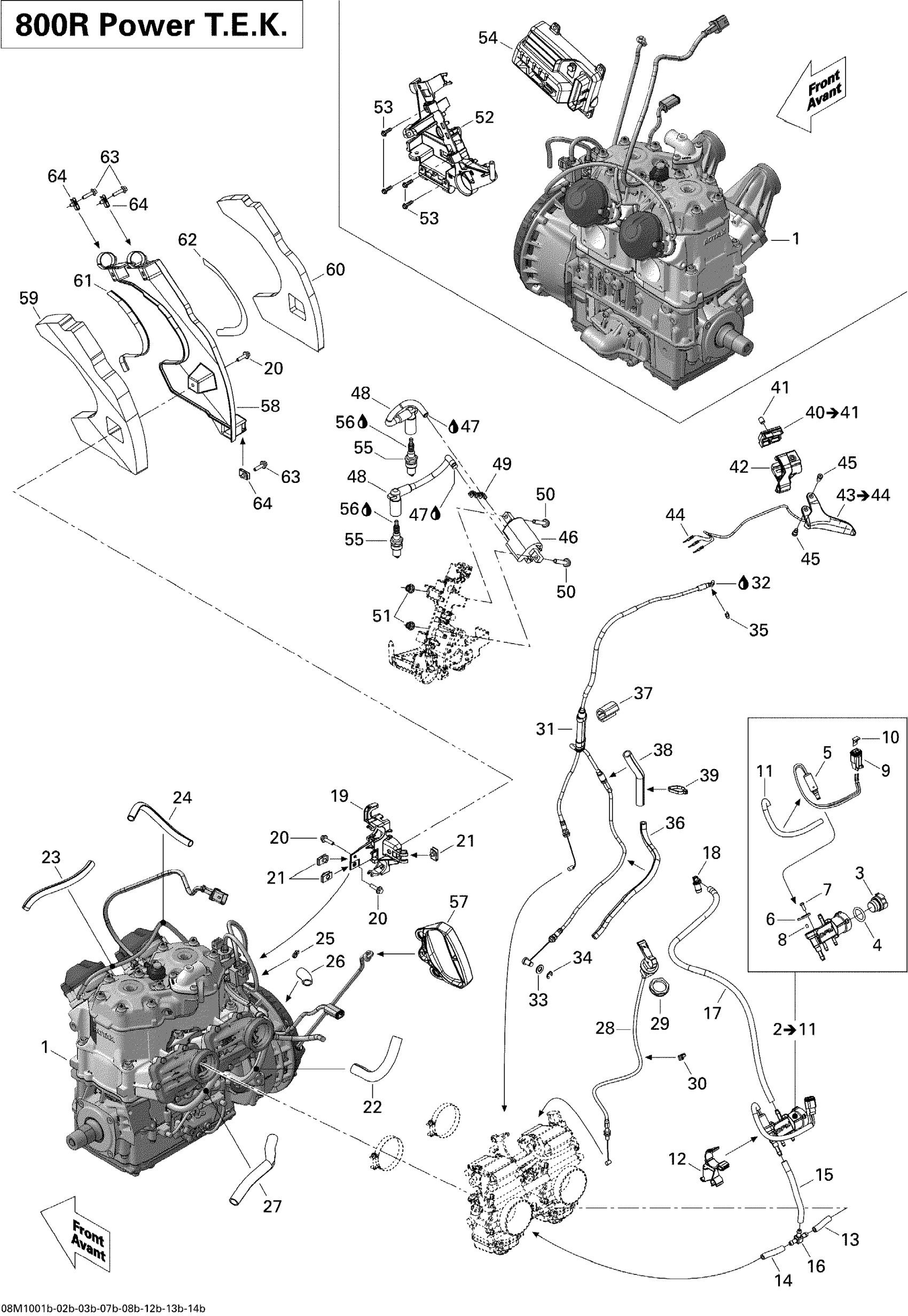

Ski-Doo MX Z X-RS 800R PTEK, 2010 Engine And Engine Support 2- 800R PTEK Diagram

#

Description
Price

1

Engine 800R

400800322

Unavailable

2

PRESSURE MANIFOLD ASS'Y - Call your local BRP dealership

512060002

Unavailable

3

CAP - Call your local BRP dealership

270600009

Unavailable

4

O-RING - Call your local BRP dealership

293300042

Unavailable

5

PRESSURE MANIFOLD HARNESS - Call your local BRP dealership

515175701

Unavailable

6

SOLENOID LOCK - Call your local BRP dealership

415061600

Unavailable

7

Screw K40 X 10

241140060

$1.43

8

STARTER JET - Call your local BRP dealership

404161825

Unavailable

9

Female Terminal Housing, 2 Circuits

515175670

$7.61

10

Female Lock, 2 Circuits

515175675

$4.28

11

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$18.63

12

DPM SUPPORT - Call your local BRP dealership

512060229

Unavailable

13

Polyurethane Hose 10000Mm Long

219704410

$52.96

14

Polyurethane Hose 10000Mm Long

219704410

$52.96

15

Polyurethane Hose 10000Mm Long

219704410

$52.96

16

T-FITTING - Call your local BRP dealership | Engine 800R

414729300

Unavailable

17

Polyurethane Hose 10000Mm Long

219704410

$52.96

18

Male Connector

414580700

$3.88

19

Solenoid Support

512060298

$12.15

20

Hex.Flange Screw M5 X 20

207652044

$1.79

21

Panel Nut M5 X 0.8

250000958

$4.00

22

Was 409901800 Tubing (13 mm)

219704400

$10.79

23

Tubing 10 MM 1000MM Long

219704407

$2.52

24

Tubing 10 MM 1000MM Long

219704407

$2.52

25

Tie Wrap 94 mm | 4X4

293750001

$0.96

26

Was 409901800 Tubing (13 mm)

219704400

$10.79

27

Was 409901800 Tubing (13 mm)

219704400

$10.79

28

Choke Cable

512060672

$44.75

29

Plastic Nut

512060671

$0.96

30

Tie-Rap 180 mm

414115200

$0.10

31

THROTTLE CABLE - Call your local BRP dealership

512060570

Unavailable

32

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

33

Flat Washer 8 mm, Nylon

234081100

$1.15

34

Circlip

414753500

$0.67

35

Circlip

414274500

$0.85

36

Tubing 6 Mm 3000Mm Long

219704425

$12.75

37

Protector

512060313

$9.03

38

Tubing 10 MM 1000MM Long

219704407

$2.52

39

Tie-Rap 180 mm

414115200

$0.10

40

Upper Housing Ass'y

512060198

Unavailable

41

Socket Set Screw M8 X 10

414440800

$3.88

42

Lower Housing

512060860

$16.39

43

Handle Ass'y

512061250

$114.15

44

Male Terminal

515175232

$1.45

45

Flange Screw

732601143

$3.90

46

Ignition Coil

512059968

$48.48

47

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

48

Cable

512060291

$46.99

49

Plastic Clip, Spark Plug Wire

410914600

$5.30

50

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

51

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

52

Coils Support

512060924

$9.03

53

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.37

54

CALIBRATED MODULE, 800R POWERT.E.K. - Call your local BRP dealership

512060682

Unavailable

55

Spark Plug NGK BR9ECS

415128524

$11.13

56

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

57

Starter Grip

512060136

$14.10

58

Noise Shield

512060338

$17.13

59

Inner Noise Foam

512060341

$17.13

60

Outer Noise Foam

512060342

$17.13

61

Heat Shield

512060574

$7.13

62

Heat Shield

512060575

$7.13

63

Hex.Flange Screw M5 X 20

207652044

$1.79

64

Panel Nut M5 X 0.8

250000958

$4.00
