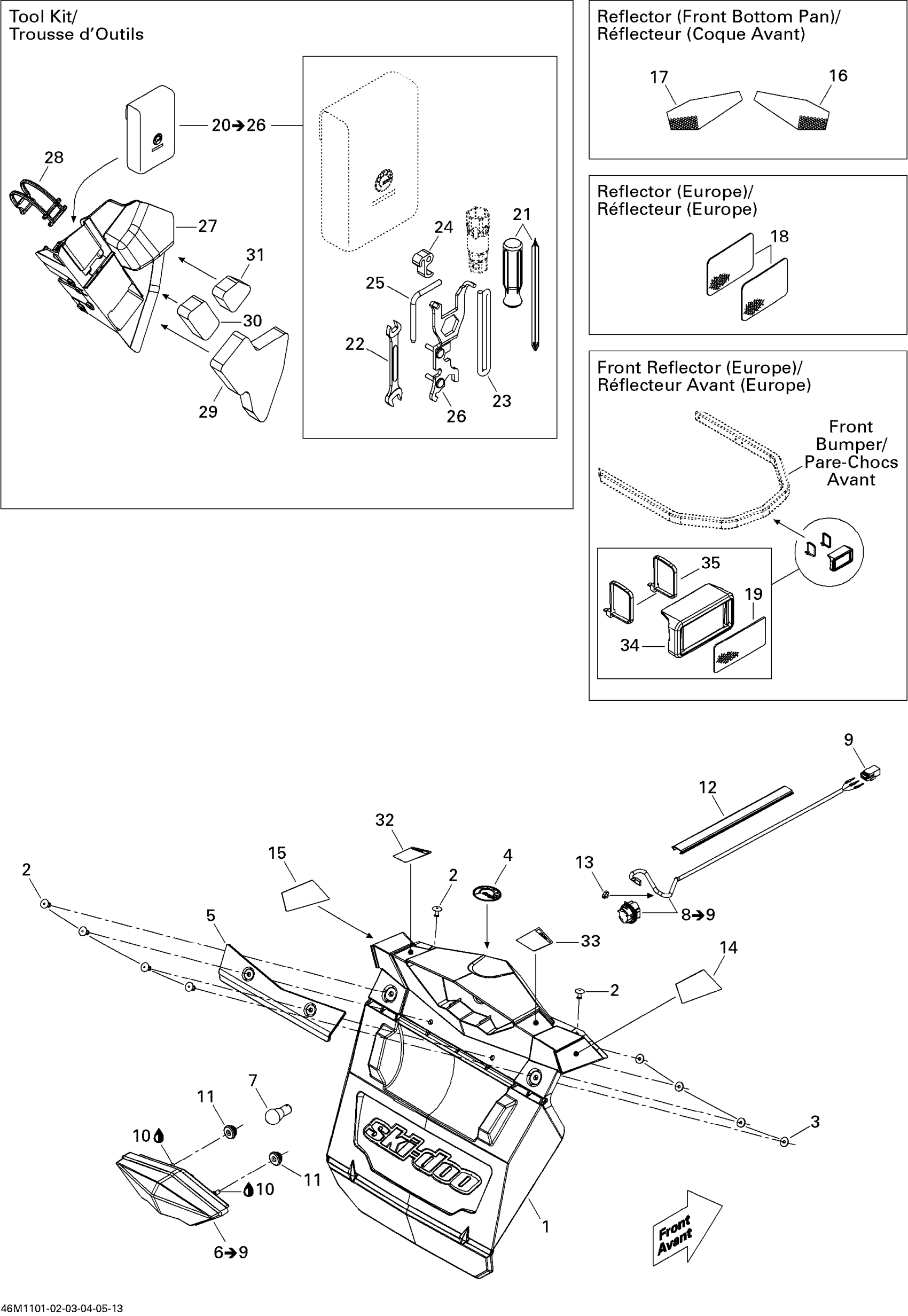

Ski-Doo MX Z X-RS 600HO ETEC, 2011 Utilities Diagram

#

Description
Price

1

Snow Guard

520000702

$64.90

2

Pop Rivet 3/16”

293150108

$1.19

3

Washer

517124300

$0.18

4

BRP Logo 48 mm

219903305

$16.39

5

Reinforcement

520000751

$17.13

6

Rear Light Ass'y

520000587

$101.46

7

Bulb

520000758

$8.60

8

Wiring Harness Ass'y | Not Shown

520000677

$35.04

9

Male Housing, 3 Circuits

515175494

$14.90

10

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

11

Stopper Rubber

705014429

$6.09

12

Radiator Trim

520000829

$20.12

13

Tie Wrap 142 mm

293750002

$1.01

14

YELLOW RH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000706

Unavailable

14

Red RH Rear Reflector | North America

520000716

Unavailable

15

YELLOW LH REAR REFLECTOR - Call your local BRP dealership | Model-Europe

520000707

Unavailable

15

Red LH Rear Reflector | North America

520000717

Unavailable

16

Yellow, RH Front Reflector

520000718

$12.15

17

Yellow, LH Front Reflector

520000719

$12.15

18

Amber, Reflector

520000271

$18.63

19

White, Reflector

415037900

$18.63

20

Tool Kit | Includes 20 To 28

529000065

$57.99

21

SCREW DRIVER - Call your local BRP dealership

529000004

Unavailable

22

FORK WRENCH, 10/13 MM - Call your local BRP dealership

529000002

Unavailable

23

Was 412500100 Rope-Starter

219704403

$9.85

24

Starter Grip

529000060

$11.06

25

SPACING TOOL - Call your local BRP dealership

520001028

Unavailable

26

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

27

Tool Kit Rack

520000842

$15.99

28

Latch

520000528

$6.40

29

Foam

520001059

$11.64

30

Foam

520001061

$9.93

31

Foam

520001062

$5.33

32

WARNING DECAL, SAFETY - Call your local BRP dealership

516005057

Unavailable

33

Warning Decal, Safety

516005058

Unavailable

34

Deep Black, Reflector Support

520000871

$5.13

35

Tie Rap 371 mm

293750018

$0.52
