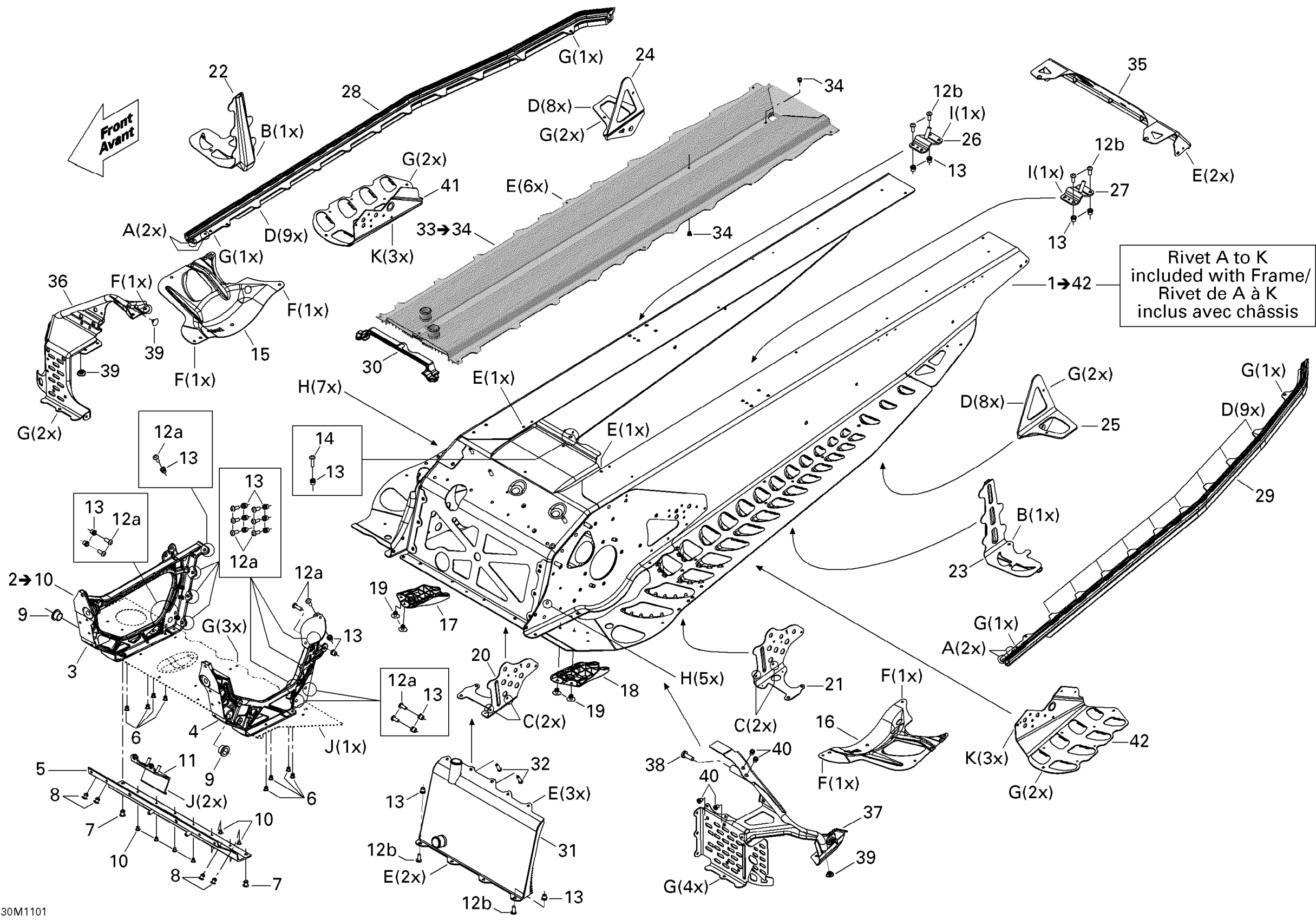

Ski-Doo MX Z X-RS 600HO ETEC, 2011 Frame Diagram

#

Description
Price

1

FRAME ASS'Y, 120 - Call your local BRP dealership | Includes 1 to 42

415129570

Unavailable

2

E Module | Includes 10n to 10at

518327567

$428.43

3

RH Member

518326795

$259.97

4

LH Member

518326796

$210.74

5

Front Member

518326198

$59.97

6

Stavex Rivet

293150144

$0.77

7

Hemlock Rivet 6.5 mm

293150120

$7.23

8

Hemlock Rivet, 6.5 mm

293150119

$4.00

9

Leg Bushing

505072690

$5.92

10

Not Available As Spare Part - Friction Washer

Unavailable

11

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

12a

Hex. Flange Screw M6 X 20

207662044

$1.66

12b

Hex. Flange Screw M6 X 16

207661644

$0.61

13

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

14

Hex. Flange Screw M6 X 20

207662044

$1.66

15

RH Reinforcement

518324874

$25.35

16

LH Reinforcement

518324875

$25.35

17

RH Deflector, Black Polypropylene

518325782

$11.77

18

LH Deflector, Black Polypropylene

518325783

$11.77

19

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

20

RH Front Suspension Retainer | Package Iron Dog

518326616

$39.97

21

LH Front Suspension Retainer | Package Iron Dog

518326617

$39.97

22

RH REINFORCEMENT - Call your local BRP dealership

518325747

Unavailable

23

LH REINFORCEMENT - Call your local BRP dealership

518325748

Unavailable

24

RH Slide Bracket

518324885

$36.89

25

LH Slide Bracket

518324886

$36.89

26

RH Rear Base

518325973

$18.43

27

LH Rear Base | Includes 10v to 10x

518325974

$18.43

28

RH FOOT ROLLER - Call your local BRP dealership | MXZ XRS

518326282

Unavailable

29

LH Foot Roller | MXZ XRS

518326283

Unavailable

30

Seal

518326656

$8.43

31

Front Radiator | Includes 10b to 10b2

518326485

$434.58

32

Clinch Stud M6 X 20

250300027

$1.92

33

Rear Radiator 120''

518327580

$762.28

34

Stavex Rivet

293150144

$0.77

35

Rear Cap

518327105

$20.74

36

RH Stirup | Includes 10aa to 10ab

518328938

$166.12

37

LH STIRUP - Call your local BRP dealership

518327935

Unavailable

38

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.70

39

Full Moon Dart 5 mm

293730042

$2.12

40

Insert M5 X 0.8

293450268

$1.95

41

CHASSIS KIT - Call your local BRP dealership | Includes 1470a to 1470e This part replaces 860200522.

860200813

Unavailable

42

CHASSIS KIT - Call your local BRP dealership | Includes 1470a to 1470e This part replaces 860200522.

860200813

Unavailable

A

Pop Rivet 3/16”

390407200

$0.66

B

Avex Rivet

390909200

$0.29

C

Avex Rivet

390909100

$0.29

D

Not Available As Spare Part - Friction Washer

Unavailable

E

Avex Rivet

390909200

$0.29

F

Avex Rivet

390909100

$0.29

G

Stavex Rivet

293150144

$0.77

H

Henrob Rivet

293150146

$1.92

I

Hemlock Rivet, 6.5 mm

293150119

$4.00

J

Hemlock Rivet, 6.4 mm

293150174

$6.43

K

Monobolt Rivet, 4.8 mm

293150191

$0.95
