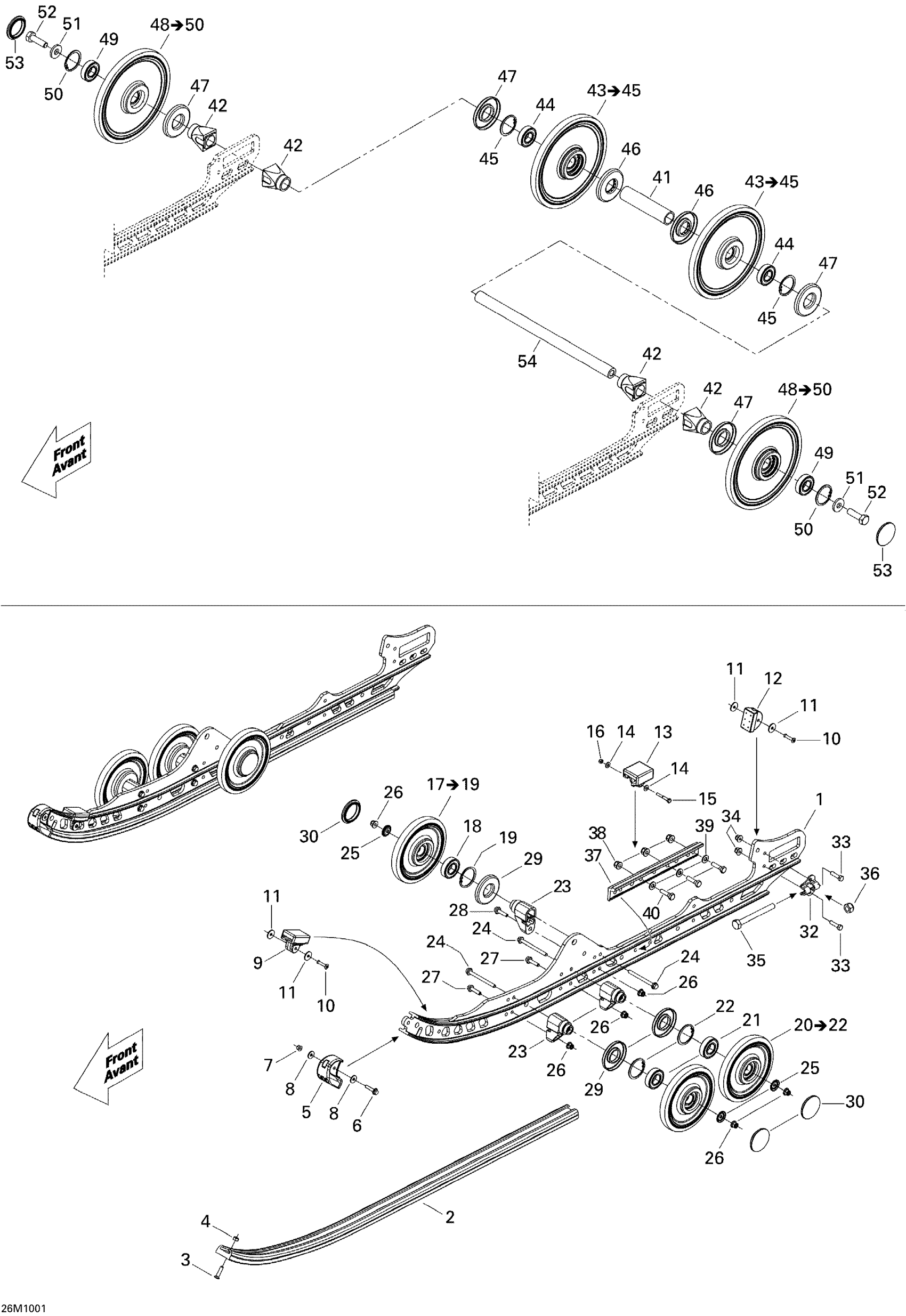

Ski-Doo MX Z X-RS 600HO ETEC, 2010 Rear Suspension Diagram

#

Description
Price

1

Suspension Rail 120

503196633

$230.74

2

Black Slider Shoe 120"

503191301

$27.66

3

Phillips Screw M6 X 25

208562531

$1.74

4

Elastic Stop Nut M6

232561414

$1.55

5

Runner Protector

503191137

$10.20

6

Hex. Flange Screw M5 X 25

207652544

$0.42

7

Hex. Flange Elastic Nut M5

233251414

$1.66

8

Washer | DS 650 X

391301600

$0.48

9

Rubber Stopper

503190576

$10.23

10

Pop Rivet 3/16"

293150142

$2.11

11

Washer

503191273

$1.06

12

Rubber Stopper

503191291

$18.43

13

RAIL STOPPER MIDDLE, FREERIDE - Call your local BRP dealership

503190741

Unavailable

14

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

15

Hex. Screw M5 X 35

207053544

$1.09

16

Elastic Stop Nut M5

232551414

$0.72

17

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

18

Ball Bearing | Package-STD

503190396

$7.12

19

Retaining Ring

415129371

$8.92

20

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$36.12

21

Ball Bearing | Package-STD

503190396

$7.12

22

Retaining Ring

415129371

$8.92

23

Casted Support

503193894

$12.75

24

Hex. Flange Screw M6 X 70

207667056

$3.61

25

Wheel Cup M6

503191820

$4.66

26

Elastic Flange Nut M6 X 1.0

233261416

$1.74

27

Hex. Flange Screw M6 X 25

207662544

$0.53

28

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

29

Labyrinth Seal

503190434

$4.29

30

Wheel Cap

570063600

$3.28

32

Tensioner

503192583

$5.85

33

Hex. Screw M6 X 25

207162544

$1.05

34

Elastic Flange Nut M6 X 1.0

233261416

$1.74

35

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

36

Elastic Locking Nut M10 X 1.5

233601416

$1.68

37

RAIL REINFORCEMENT - Call your local BRP dealership

503191804

Unavailable

38

Hex. Flange Elastic Nut M8

233281414

$1.14

39

Washer

503189157

$3.20

40

Hex. Screw M8 X 30

207183044

$0.92

41

Rear Spacer

503191263

$15.35

42

Rear Wheel Spacer

503190428

$6.06

43

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$49.97

44

Ball Bearing | Package-STD

503190396

$7.12

45

Retaining Ring

415129371

$8.92

46

Labyrinth Seal

503190682

$5.85

47

Labyrinth Seal

503190434

$4.29

48

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$49.97

49

Ball Bearing | Package-STD

503190396

$7.12

50

Retaining Ring

415129371

$8.92

51

Washer

503190439

$5.82

52

Hex. Screw With Nylon

250000019

$1.42

53

Wheel Cap

570063600

$3.28

54

Rear Axle

503190429

$59.97
