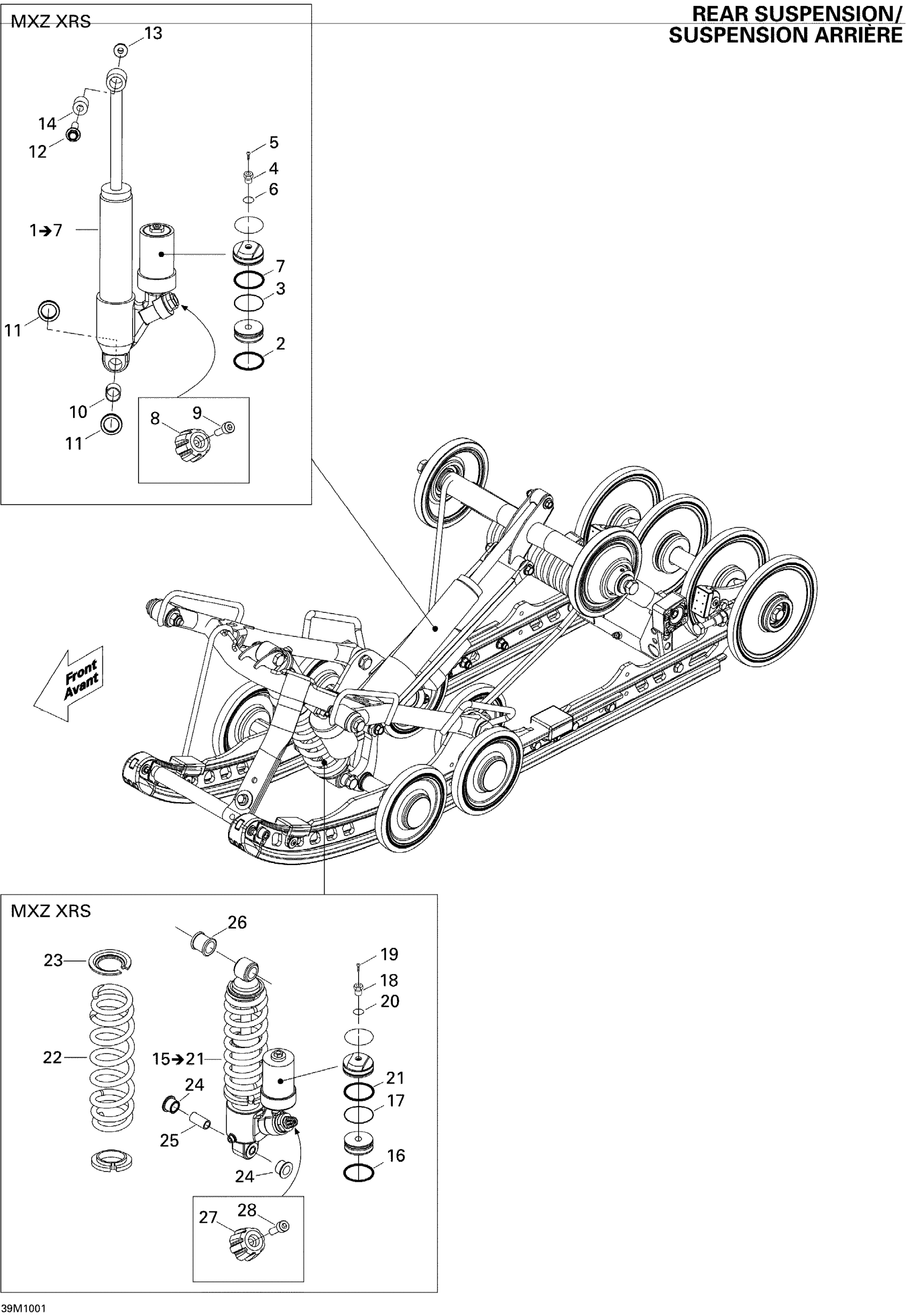

Ski-Doo MX Z X-RS 600HO ETEC, 2010 Rear Suspension Shocks Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership | Includes 1B to 7B

503192203

Unavailable

2

O-Ring

415093807

$34.58

3

Piston Ring | Not Shown

415093806

$14.97

4

Air Valve

505070398

$17.66

5

Screw | Not Shown

505070399

$4.00

6

O-Ring

505070400

$4.38

7

O-Ring

415093804

$4.38

8

Adjustment Knob

505072753

$2.08

9

Allen Screw M3 X 0.5 X 10

250000644

$1.74

10

Bushing

503191553

$5.71

11

Plastic Spacer

503190694

$2.05

12

Hex. Flange Screw M8 X 40

207684044

$1.25

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Bushing

414936000

$11.55

15

CENTER SHOCK - Call your local BRP dealership | Includes C1 to C7

503192170

Unavailable

16

O-Ring

415093807

$34.58

17

Piston Ring | Not Shown

415093806

$14.97

18

Air Valve

505070398

$17.66

19

Screw | Not Shown

505070399

$4.00

20

O-Ring

505070400

$4.38

21

O-Ring

415093804

$4.38

22

BLACK SPRING - Call your local BRP dealership

503192217

Unavailable

23

Spring Stopper

503194270

$16.89

24

Urethane Bushing

503189117

$6.88

25

Bushing | Includes 240d to 240d1

503189282

$4.18

26

Bushing

503189271

$10.46

27

Adjustment Knob

505072753

$2.08

28

Allen Screw M3 X 0.5 X 10

250000644

$1.74
