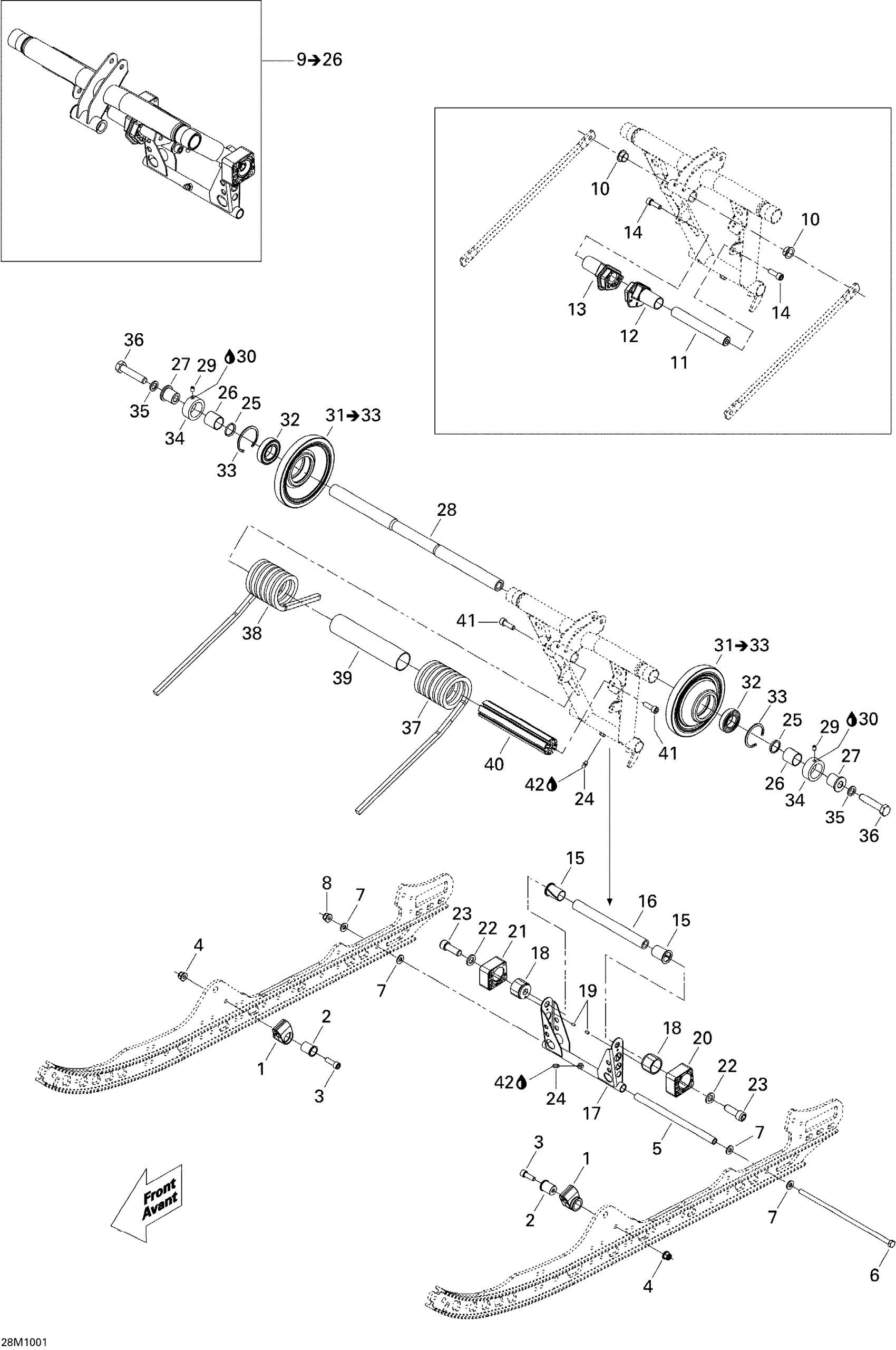

Ski-Doo MX Z X-RS 600HO ETEC, 2010 08- Rear Arm Diagram

Spring Support Kit

861805547

$10.49

Spring Support Kit

861805547

$10.49

Socket Head Screw M8 X 25

205082544

$1.15

Hex. Flange Elastic Nut M8

233281414

$1.47

Pivot Arm Axle

503189156

$21.99

Bolt M8 X 248mm

503192440

$30.49

Washer

503189157

$3.28

Hex. Flange Elastic Nut M8

233281414

$1.47

Rear Arm Ass'y | Includes 3000 to 3000v

503191785

$232.99

Swivel Bushing

503191555

$7.83

Spring Cam Axe

503191178

$28.99

LH Spring Cam

503191191

$15.79

RH Spring Cam

503191190

$15.29

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

Cushion

503191640

$5.93

Lower Shaft

503192330

$45.99

Pivot Arm

503191302

$124.99

Block Guide

503189488

$39.99

Dowel Pin 4 X 8 Mm - Call Your Local BRP Dealership

250400005

Unavailable

LH Block, 4 Positions

503192301

$25.99

RH Block, 4 Positions

503192300

$25.99

Washer | 7415/7416. 7417/7418.

503189148

$2.85

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.96

Grease Fitting

408200700

$3.49

Washer

503191774

$2.32

Bushing

503191773

$16.79

Bushing

503191775

$17.39

Upper Shaft

503191776

$45.99

Socket Set Screw M6 X 8

206260844

$1.48

Loctite 243, 10 ml

293800060

$21.49

Black, Wheel Ass'y 141 mm | Includes 460 to 460b

503191316

$37.99

Ball Bearing

503191778

$12.49

Retaining Ring

415129371

$12.01

Retaining Ring

503191782

$17.99

Washer

503189276

$3.28

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

LH SPRING, SQUARE - Call your local BRP dealership

503191188

Unavailable

RH SPRING, SQUARE - Call your local BRP dealership

503191186

Unavailable

Plastic Bushing

503191345

$7.83

Spring Axle

503191344

$36.99

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
