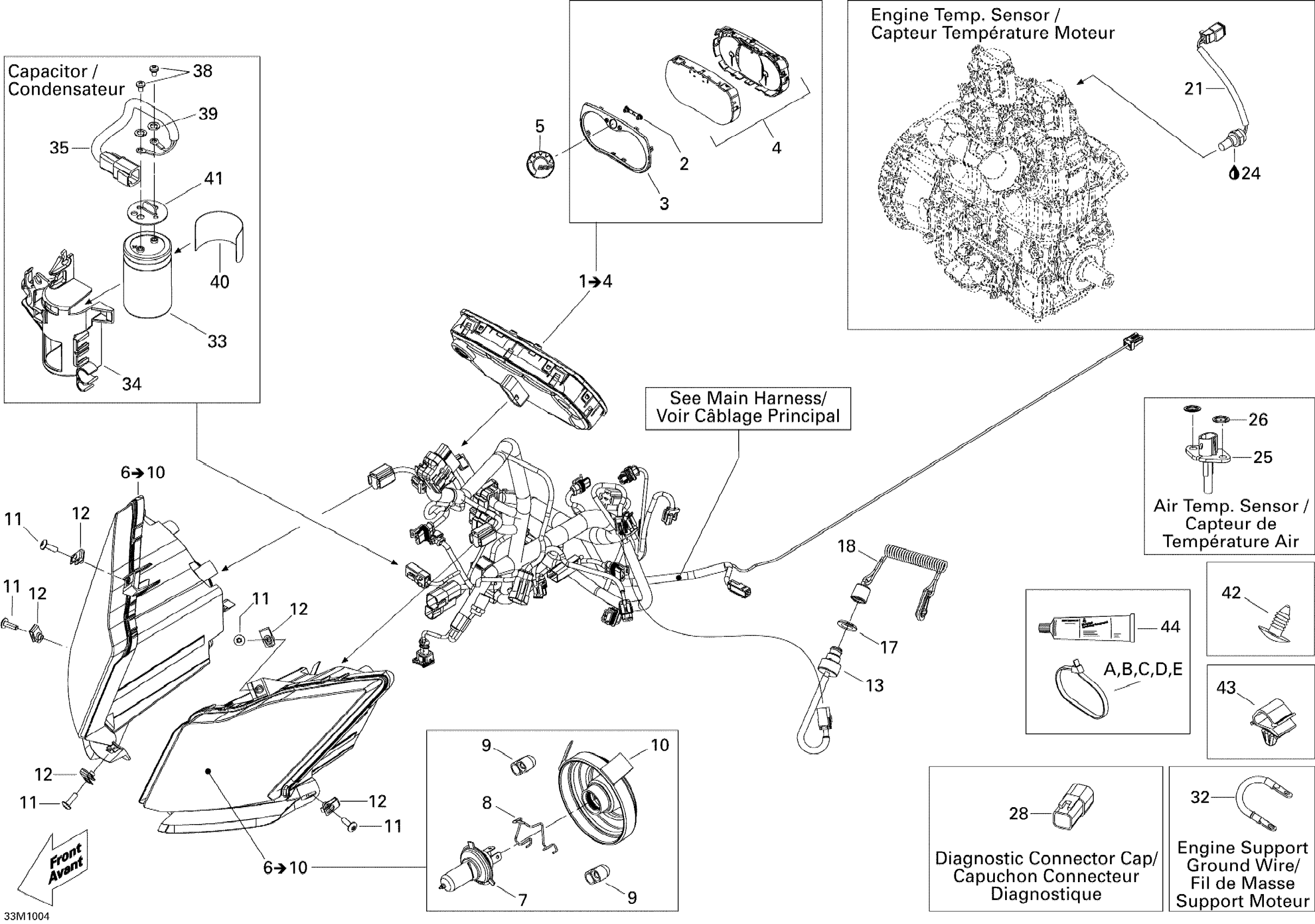

Ski-Doo MX Z X 800R ETEC, 2010 10- Electrical System Diagram

#

Description
Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

6

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

7

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

8

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

9

Cap

515176498

$12.99

10

Rubber Cap Protector

219800280

$19.49

11

Torx Screw M6 X 20

250000722

$1.68

12

Panel Nut M6 X 1.0

250100198

$2.11

13

DESS Switch

515177249

$114.99

14

Cap

515176141

$3.09

17

Safety Nut (DESS Switch)

278002963

$3.28

18

DESS

515178284

$84.99

21

Temperature Sensor This part replaces 420664508.

420664509

$149.99

24

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

25

Air Temperature Sensor

515176366

$19.99

26

Push Nut

389804300

$0.53

28

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

32

Ground Wire

515177289

$26.99

33

Capacitor

515177272

$90.99

34

Capacitor Support

515176607

$20.99

35

Capacitor Harness

515176605

$33.99

38

Socket Head Screw M10 X 32

250000462

$2.11

39

Lock washer | Quest XT 650.

250200026

$1.90

40

CAPACITOR DECAL - Call your local BRP dealership

516002976

Unavailable

41

Cap

515177193

$4.69

42

Black, Dart

414644300

$0.98

43

Tie Rap Mount (screwable)

515176795

$5.39

44

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

A

Tie-Rap 180 mm

414115200

$0.11

B

Tie Wrap 142 mm

293750002

$1.25

C

Tie Wrap 368 mm

293750008

$1.04

D

Tie Wrap 94 mm | 4X4

293750001

$1.03

E

Tie-Rap 173 mm

293750009

$1.04
