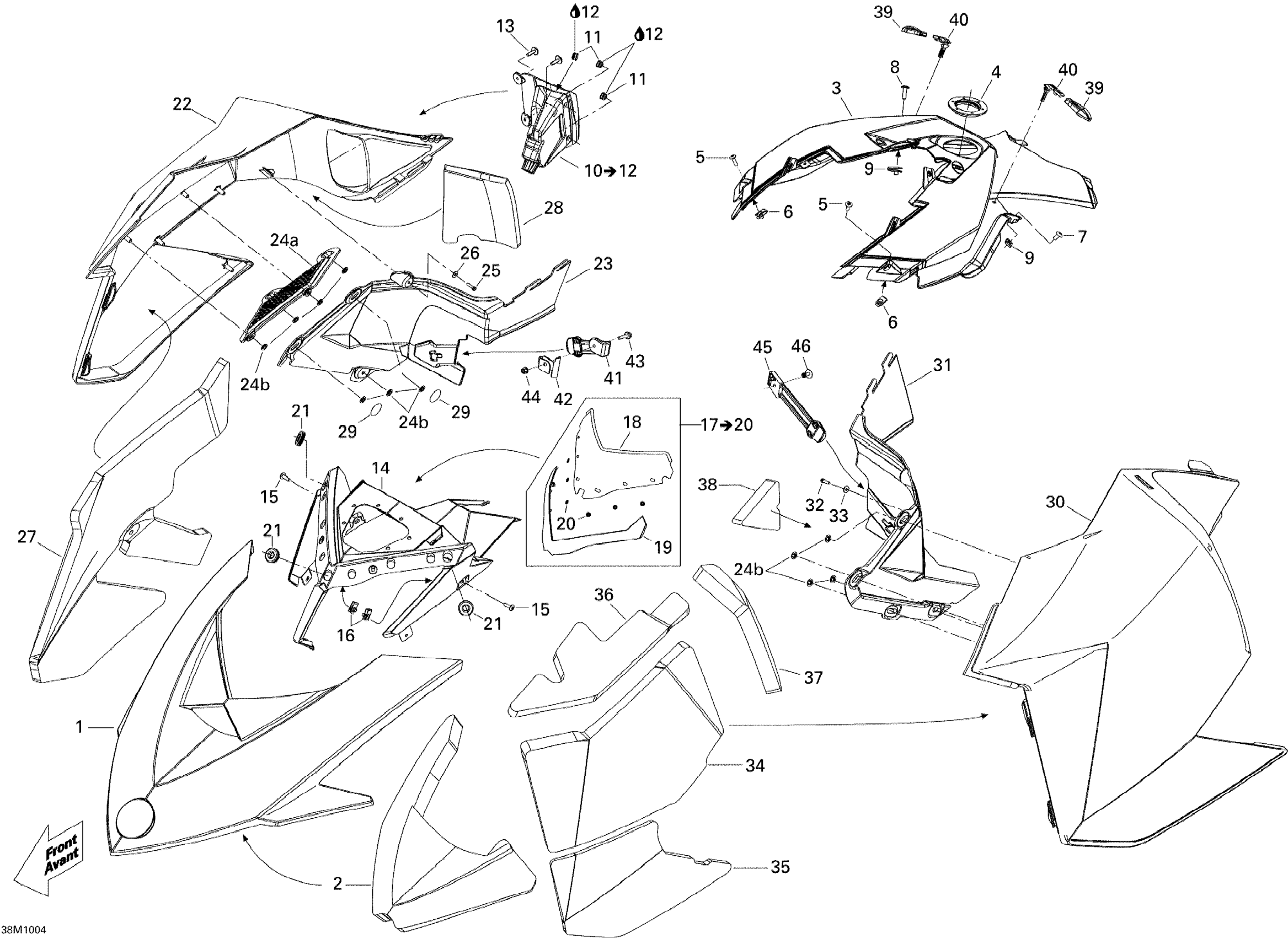

Ski-Doo MX Z X 800R ETEC, 2010 09- Hood Diagram

#

Description
Price

1

Deep Black Hood | Deep Black

517304530

$214.99

2

Hood Foam

517304913

$22.49

3

CONSOLE B-160 - Call your local BRP dealership | 600HO

517303922

Unavailable

4

Console Nut

517304518

$15.29

5

Torx Screw M6 X 20

250000722

$1.68

6

Panel Nut M6 X 1.0

250100198

$2.11

7

Torx Truss Screw M6 X 16

250000721

$1.69

8

Torx Screw M6 X 20

250000722

$1.68

9

Panel Nut M6 X 1.0

250100198

$2.11

10

Black, RH Console | Includes 400 to 400b

517304322

$35.99

11

Black, Cap

275500241

$3.49

12

Loctite, Black Max, 3 ml

413408300

$26.99

13

Screw M4 X 16

250000725

$3.49

14

Gauge Support

517304575

$70.99

15

Torx Screw M6 X 20

250000722

$1.68

16

Panel Nut M6 X 1.0

250100198

$2.11

17

Low Windshield Ass'y | Includes 18 to 20, Black/Black Model

517304227

Unavailable

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Windshield Support Kit

860200089

$22.99

20

Push Nut

732610072

$2.19

21

Grommet

517303756

$4.09

22

PANEL_BODY RH B-160 - Call your local BRP dealership | Electric Start Models

517304210

Unavailable

23

Deep Black RH Moulding Panel

517303671

$28.99

24a

Grille

517303622

$31.99

24b

Push Nut

732610072

$2.19

25

Hex. Flange Screw K40 X 16

241141660

$1.48

26

Flat Washer 4 mm, Stainless

234042600

$1.15

27

RH Center Foam

517304883

$43.99

28

RH Panel Rear Foam

517304884

$19.99

29

Adhesive Patch

518325560

$4.69

30

Deep Black, LH Panel

517304030

$211.99

31

Deep Black, LH Moulding Panel

517303673

$28.99

32

Hex. Flange Screw K40 X 16

241141660

$1.48

33

Flat Washer 4 mm, Stainless

234042600

$1.15

34

LH Panel Center Foam

517304887

$27.99

35

LH Panel Lower Foam

517304888

$22.49

36

LH Panel Upper Foam

517304889

$21.99

37

LH Panel Rear Foam

517304890

$17.99

38

Foam

517304891

$21.99

39

End Piece Latch

517304075

$4.69

40

Panel Latch

517303981

$12.99

41

RH Panel Latch

517303612

$9.99

42

Latch Support

517304221

$9.19

43

Hex.Flange Screw M5 X 20

207652044

$1.90

44

Hex. Flange Elastic Nut M5

233251414

$1.04

45

LH Panel Latch

517303808

$11.49

46

Pop Rivet 3/16”

293150108

$1.19
