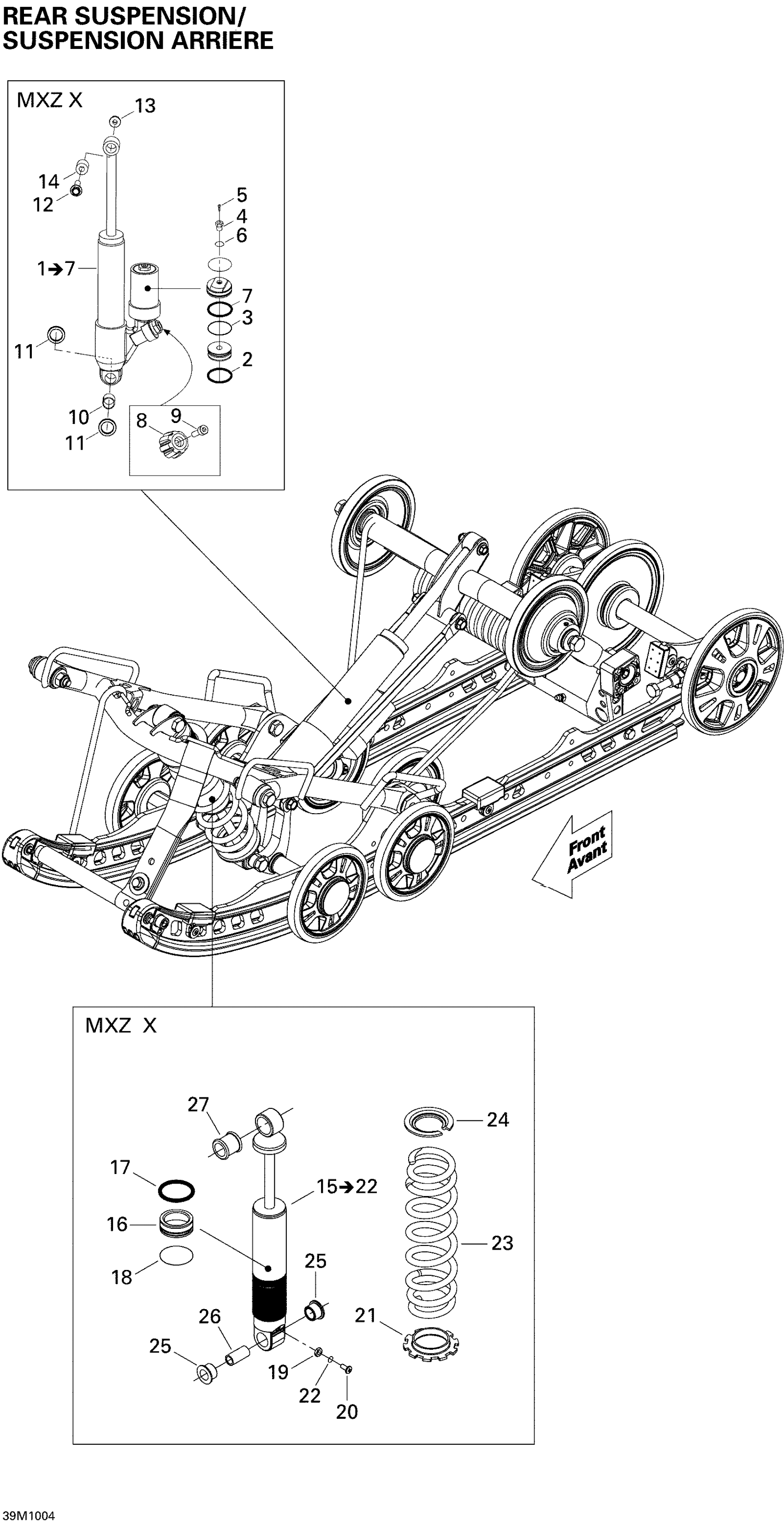

Ski-Doo MX Z X 800R ETEC, 2010 Rear Suspension Shocks Diagram

#

Description
Price

1

REAR SHOCK - Call your local BRP dealership | Includes 1B to 7B

503192204

Unavailable

1

Rear Shock | Includes 1 Bto 7B, Europe

503192297

Unavailable

2

O-Ring

415093807

$34.58

3

Piston Ring | Not Shown

415093806

$14.97

4

Air Valve

505070398

$17.66

5

Screw | Not Shown

505070399

$4.00

6

O-Ring

505070400

$4.38

7

O-Ring

415093804

$4.38

8

Adjustment Knob

505072753

$2.08

9

Allen Screw M3 X 0.5 X 10

250000644

$1.74

10

Bushing

503191553

$5.71

11

Plastic Spacer

503190694

$2.05

12

Hex. Flange Screw M8 X 40

207684044

$1.25

13

Hex. Flange Elastic Nut M8

233281414

$1.14

14

Bushing

414936000

$11.55

15

Central Shock | Model Europe

503193534

$416.12

16

FREE PISTON - Call your local BRP dealership

503189309

Unavailable

17

O-Ring

414888312

$16.12

18

Piston Ring

503189308

$77.66

19

Air Valve

505070398

$17.66

20

Screw | Not Shown

505070399

$4.00

21

SPRING COLLAR - Call your local BRP dealership | MX-Z 552 Europe

414888316

Unavailable

22

O-Ring

505070400

$4.38

23

Black, Spring

503191329

$66.89

24

Spring Stopper

503194270

$16.89

25

Urethane Bushing

503189117

$6.88

26

Bushing | Includes 240d to 240d1

503189282

$4.18

27

Bushing

503189271

$10.46
