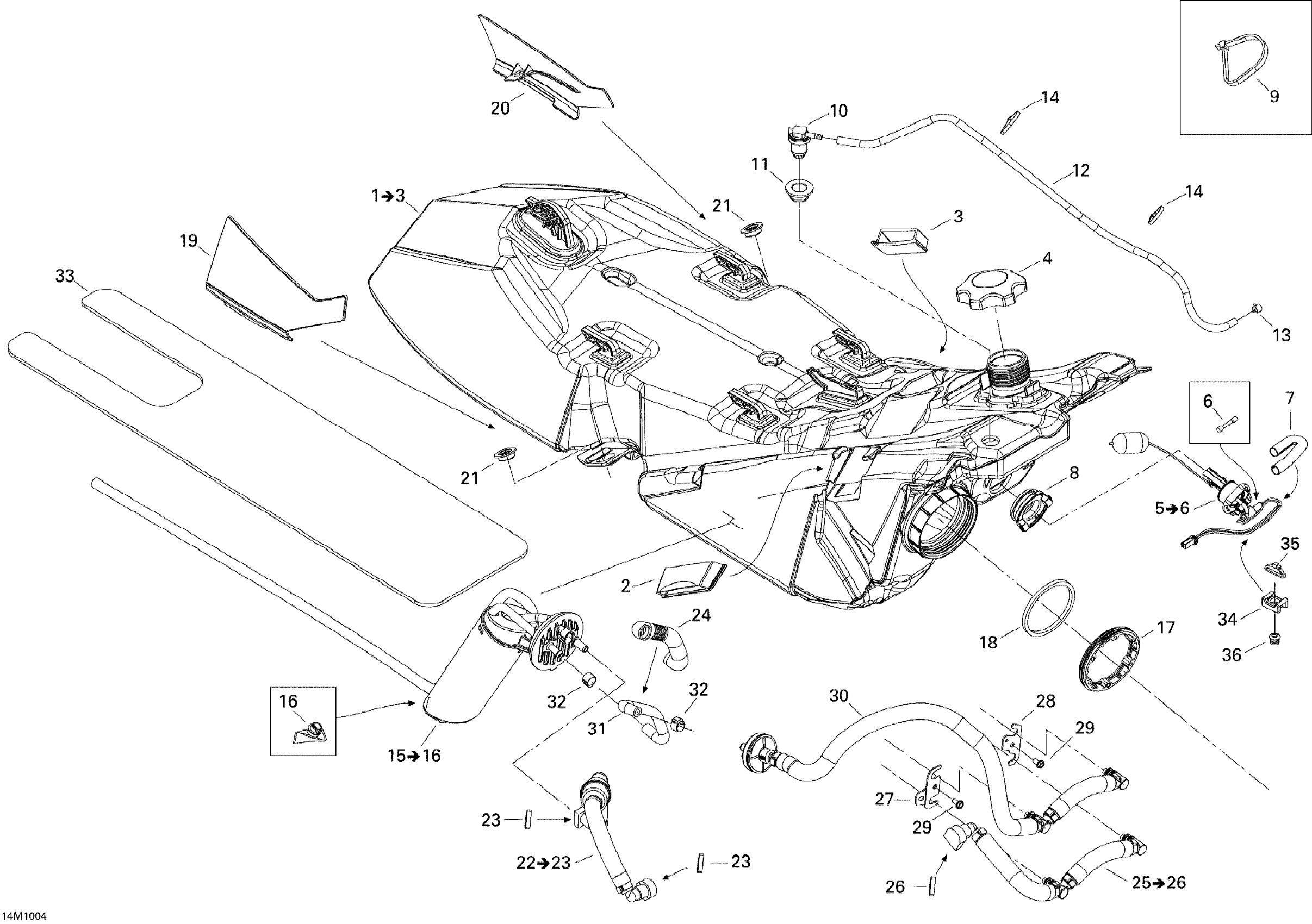

Ski-Doo MX Z X 800R ETEC, 2010 02- Fuel System Diagram

#

Description
Price

1

FUEL TANK ASS'Y - Call your local BRP dealership | Includes 1 to 3

513033578

Unavailable

2

RH Panel Clip

513033471

$7.19

3

LH Panel Clip

513033472

$5.99

4

Fuel Tank Cap 91 Octane

513033722

$22.49

5

Sensor Level Fuel | Includes 40 to 40a

513033958

$109.99

6

Fuse, 0.5 Ampère

710001995

$8.32

7

Tubing 10 MM 1000MM Long

219704407

$2.79

8

Grommet

513033606

$21.99

9

Tie Wrap 368 mm

293750008

$1.04

10

Check Valve

513033842

$35.99

11

Grommet

513033596

$21.99

12

Polyurethane Hose 10000Mm Long

219704410

$56.99

13

Spring Clamp

414554800

$0.88

14

Tie-Rap 180 mm

414115200

$0.11

15

Fuel Pump Ass'y | Includes 13 to 15

513033643

$259.99

16

Fuel Filter

415129451

$25.99

17

Ring

513033180

$19.99

18

Gasket

513033334

$24.49

19

RH Cap

513033418

$14.99

20

LH Cap

513033419

$14.99

21

Shoulder Bushing

513033326

$14.99

22

HOSE ASS'Y - Call your local BRP dealership

513033560

Unavailable

23

Locking Clip

513033135

$5.89

24

Tubing 16 Mm 1000Mm Long

219704408

$7.49

25

Hose Ass'y | Includes 22 to 23

513033594

$88.99

26

Locking Clip

513033135

$5.89

27

Bracket

513033542

$14.99

28

Bracket

513033593

$18.99

29

Hex. Flange Screw M5 X 10

207551044

$4.12

30

HOSE ASS'Y - Call your local BRP dealership | 600HO E-TEC

513033595

Unavailable

31

FORMED HOSE - Call your local BRP dealership

513033544

Unavailable

32

Crimp Clamp, 15.3-706R

293650047

$3.29

33

Insulating Foam

513033588

$14.99

34

Tie Rap Mount (screwable)

515176795

$5.39

35

Tie Wrap 142 mm

293750002

$1.25

36

Pop Rivet 3/16" | DS 650 X

390402000

$0.33
