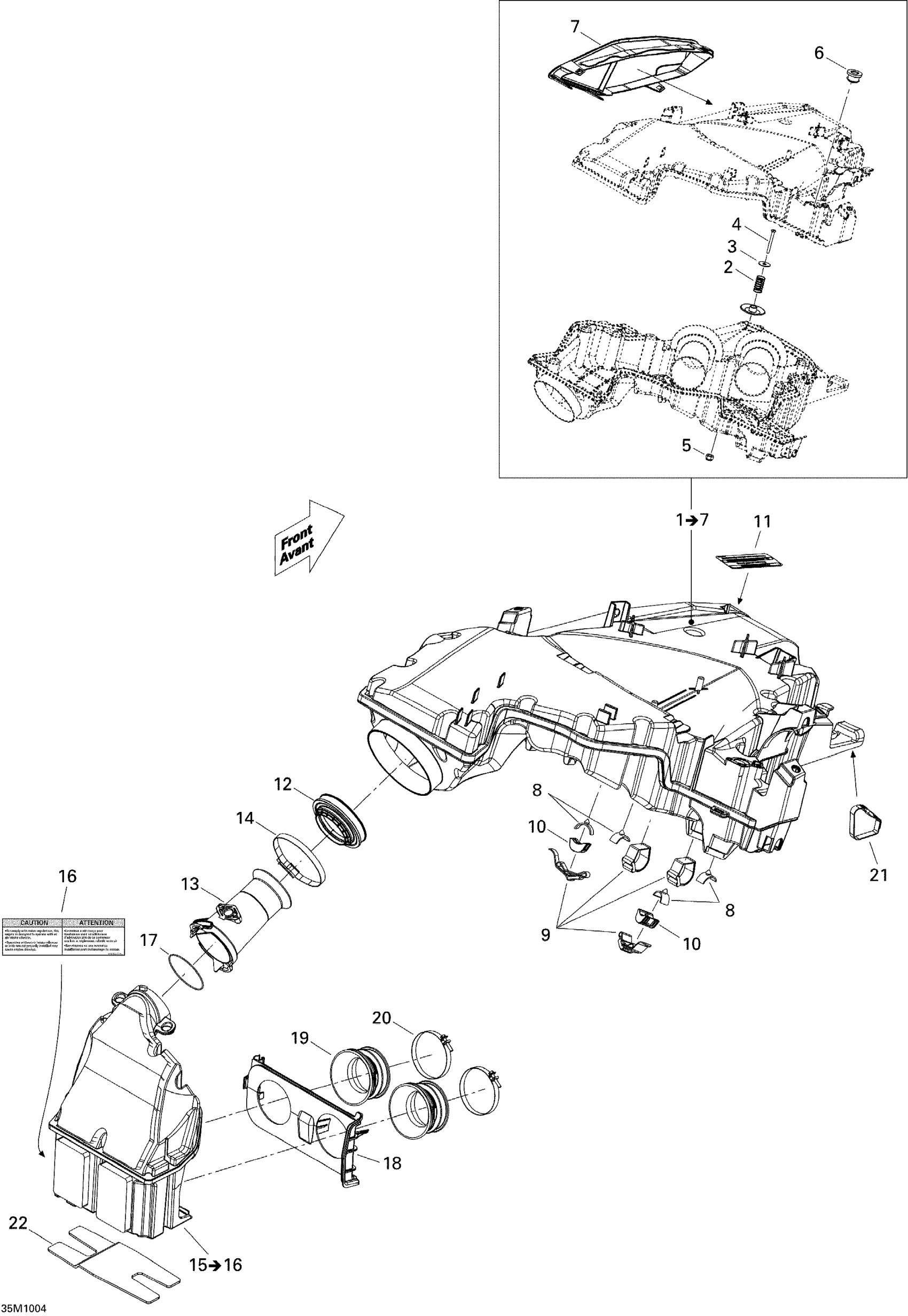

Ski-Doo MX Z X 800R ETEC, 2010 Air Intake System Diagram

#

Description
Price

1

Secondary Chamber Ass'y | Includes 10 to 10f

508000624

$141.76

2

Spring

508000576

$7.13

3

Flat Washer

224060201

$1.12

4

Socket Head Screw M4 X 40 | X

205444086

$1.63

5

Elastic Stop Nut M4

232541414

$0.55

6

Grommet

508000574

$7.13

7

Air Intake Filter

508000568

$26.09

8

Stopper

508000537

$7.13

9

Velcro Strip

508000820

$7.13

10

Bumper

508000572

Unavailable

11

WARNING DECAL, HOT PARTS - Call your local BRP dealership

516002965

Unavailable

12

Boot

508000567

$16.39

13

Flute

508000662

$13.24

14

Norma Clamp

514052924

$12.15

15

Primary Chamber Ass'y | Includes 100 to 100a

508000660

$79.07

16

CAUTION DECAL, AIR INTAKE - Call your local BRP dealership

516003371

Unavailable

17

O'RING - Call your local BRP dealership

293300140

Unavailable

18

Plate Adapter

508000613

$17.88

19

Air Intake Adapter

508000614

$17.88

20

Gemi Clamp

508000346

$9.03

21

Velcro Strip

508000599

$11.73

22

Insulated Foam

508000674

$12.21
