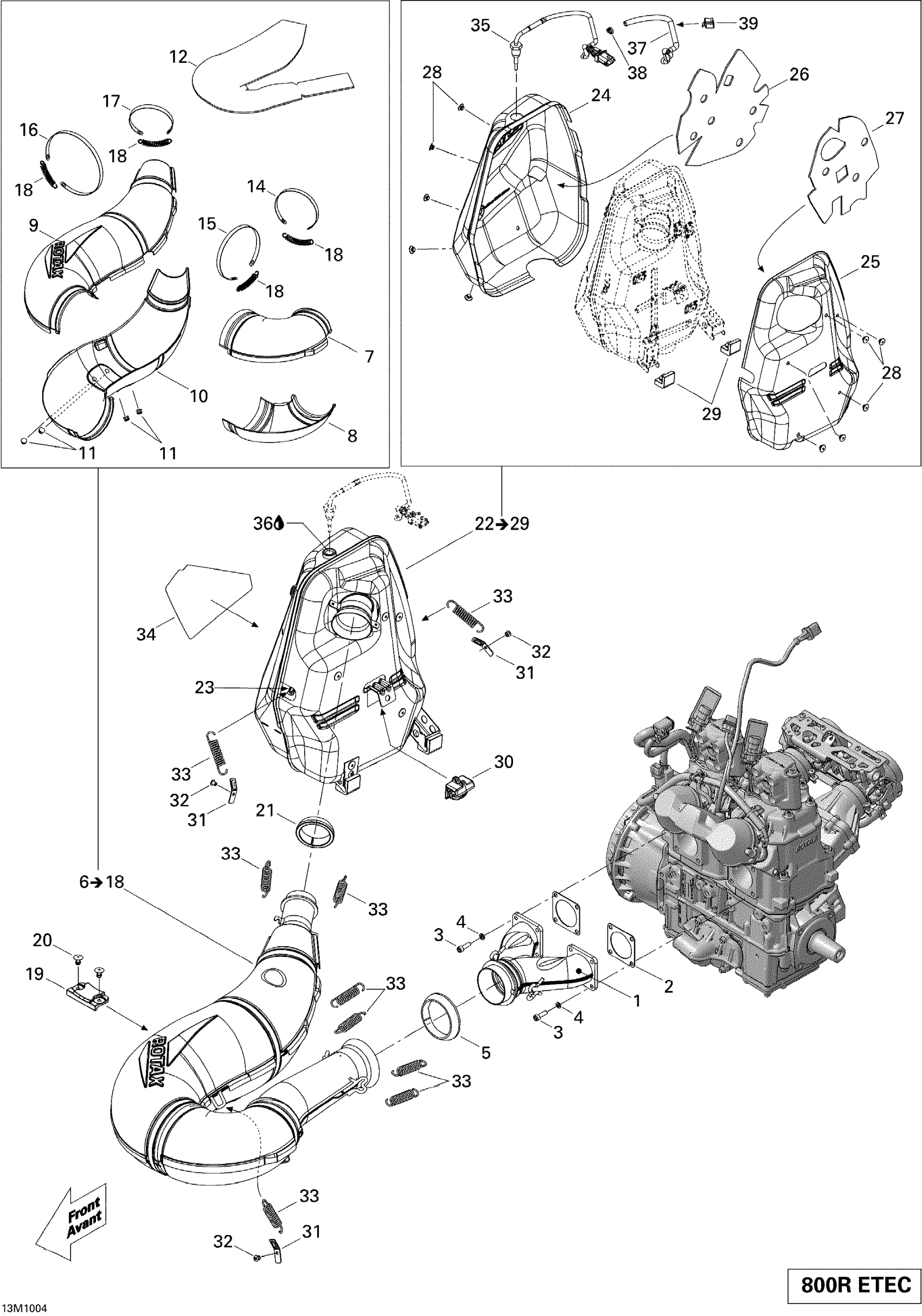

Ski-Doo MX Z X 800R ETEC, 2010 01- Exhaust System Diagram

#

Description
Price

1

Exhaust Manifold This part replaces 420673373.

420673374

$299.99

2

Gasket

420430482

$8.89

3

Socket Head Screw M8 X 22

250000414

$2.11

4

Washer

250200111

$2.11

5

Exhaust Gasket

514053487

$26.49

6

Exhaust Tuned Pipe | Includes 200 to 200k

514055063

$847.99

7

Front Upper Half Enveloppe

514054992

$40.99

8

Front Lower Half Enveloppe

514054993

$40.99

9

Rear Upper Half Enveloppe

514055039

$65.99

10

Rear Lower Half Enveloppe | Includes 200d to 200e

514054990

$56.99

11

Henrob Rivet

293150091

$0.77

12

Insulating Wool

514054487

$20.99

14

Retaining Strap

514054408

$13.10

15

Retaining Strap

514054409

$13.10

16

Retaining Strap

514054410

$13.10

17

Retaining Strap

514053499

$11.47

18

Spring

514053643

$6.35

19

Bumper

514054275

$16.34

20

Pop Rivet 3/16"

293150103

$0.55

21

Exhaust Gasket

514054174

$28.49

22

Muffler Ass'y | Includes 400 to 400g

514055083

$858.49

23

Spring Bracket

514054155

Unavailable

24

RH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054710

Unavailable

25

LH DEFLECTOR - Call your local BRP dealership | 800R ETEC

514054202

Unavailable

26

RH Insulating Wool

514054711

$21.99

27

LH Insulating Wool

514054299

$20.99

28

Pop Rivet 3/16”

390910000

$0.57

29

Lower Stopper

514054274

$20.49

30

Upper Stopper

514054606

$19.99

31

Spring Bracket

514054522

$8.45

32

Pop Rivet 3/16"

390402200

$0.35

33

Spring

514054226

$6.35

34

Reflective Sheet

514054488

$14.99

35

Temperature Sensor

514054641

$219.99

36

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

37

Tubing 6 Mm 3000Mm Long

219704425

$13.75

38

Tie Wrap 94 mm | 4X4

293750001

$1.03

39

Clip

414227300

$1.67
