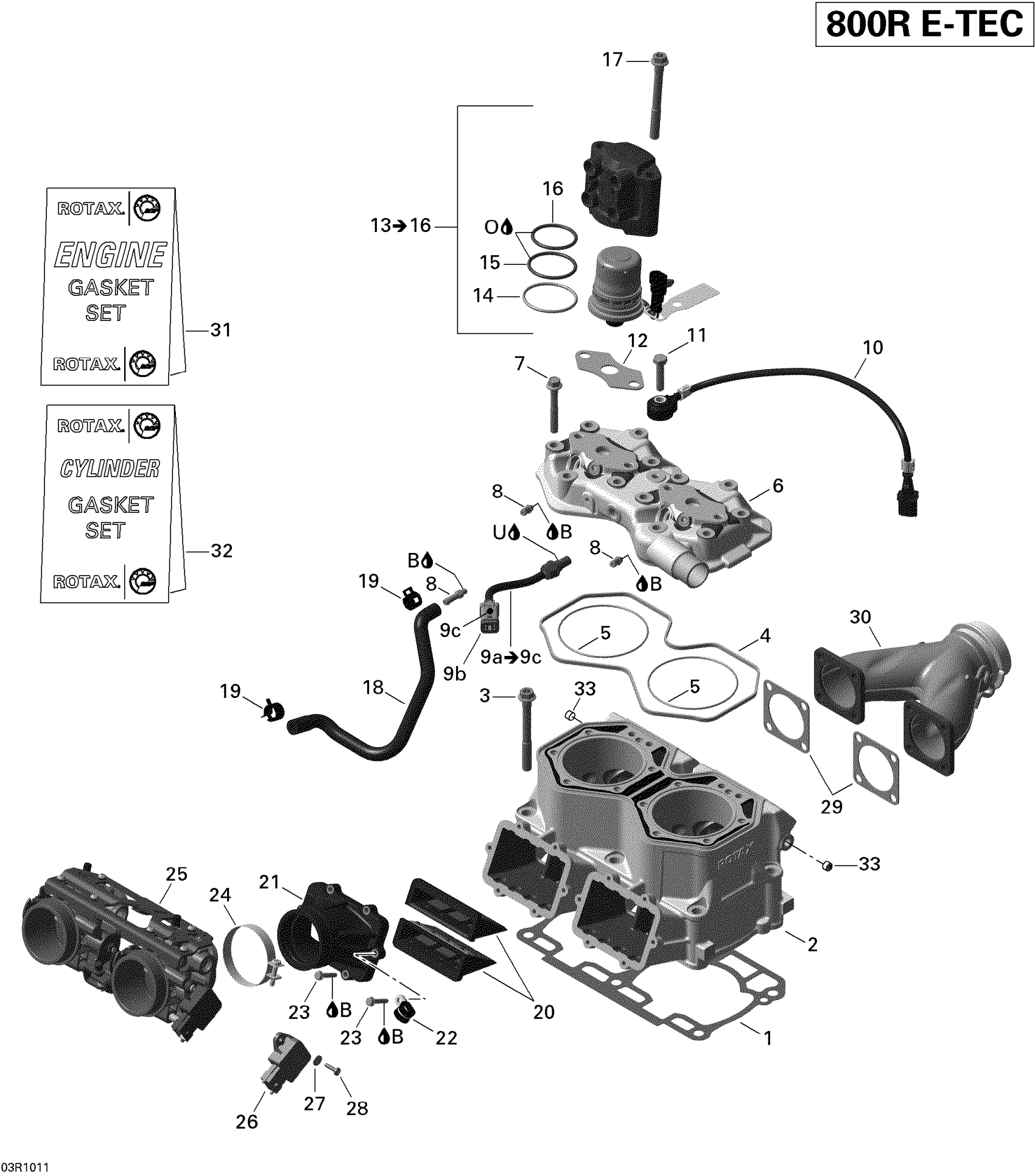

Ski-Doo MX Z X 800R ETEC, 2010 Cylinder And Injection System Diagram

#

Description
Price

1

Double Gasket 0.7 mm

420430082

$33.55

1

Double Gasket 0.5 mm

420430080

$24.60

1

Double Gasket 0.6 mm

420430081

$26.84

1

Double Gasket 0.8 mm

420430083

$33.55

1

Double Gasket 0.9 mm

420430084

$18.63

2

Cylinder

420623249

Unavailable

3

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.13

4

O-Ring

420430040

$5.52

5

O-Ring | Included in gasket kit

420931410

$3.06

6

HEAD CYLINDER COVER - Call your local BRP dealership

420623300

Unavailable

7

Hex. Screw M8 X 56.5

420941627

$8.09

8

Hose Nipple

420924724

$14.10

9a

Temperature Sensor This part replaces 420664508.

420664509

$138.03

9b

Female Terminal Housing, 2 Circuits

515175670

$7.61

9c

Female Terminal

278000632

$1.94

10

Noise Sensor

270000484

$75.34

11

Hex. Screw M8 X 35

207083544

$1.06

12

Gasket

420430930

$4.46

13

Fuel Injector | Includes 13 to 16

512061054

$330.57

14

Crush Ring

415129497

$7.16

15

O-Ring

415129498

$12.13

16

O-Ring

415129499

$6.61

17

Torx Flange Screw M10 X 90 -SW 13/T50

420441187

$17.13

18

Molded Hose

420460867

$17.13

19

Clamp

420853511

$7.09

20

Reed Valve Ass'y

420924798

$38.03

21

Intake Socket

420867333

$154.45

22

Clamp

420851250

$9.03

23

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$1.99

24

Clamp

420851815

$9.03

25

Throttle Body

420889202

$1,217.13

26

Position Sensor

420866120

$89.52

27

Flat Washer 4 mm, Stainless

234041600

$1.04

28

Phillips Screw M4 X 16

208641660

$0.85

29

Gasket

420430482

$7.99

30

Exhaust Manifold This part replaces 420673373.

420673374

$271.61

31

GASKET SET ENGINE - Call your local BRP dealership

420892474

Unavailable

32

Gasket Set, Cylinder

420892479

$338.03

33

Socket Set Screw M10 x 1.25 x 10 mm

415129628

$2.00

B

Loctite 243, 10 ml

293800060

$21.49

O

Not Available As Spare Part - Friction Washer

Unavailable

U

Sealing Compound Loctite 5366 310Ml

420297907

$54.99
