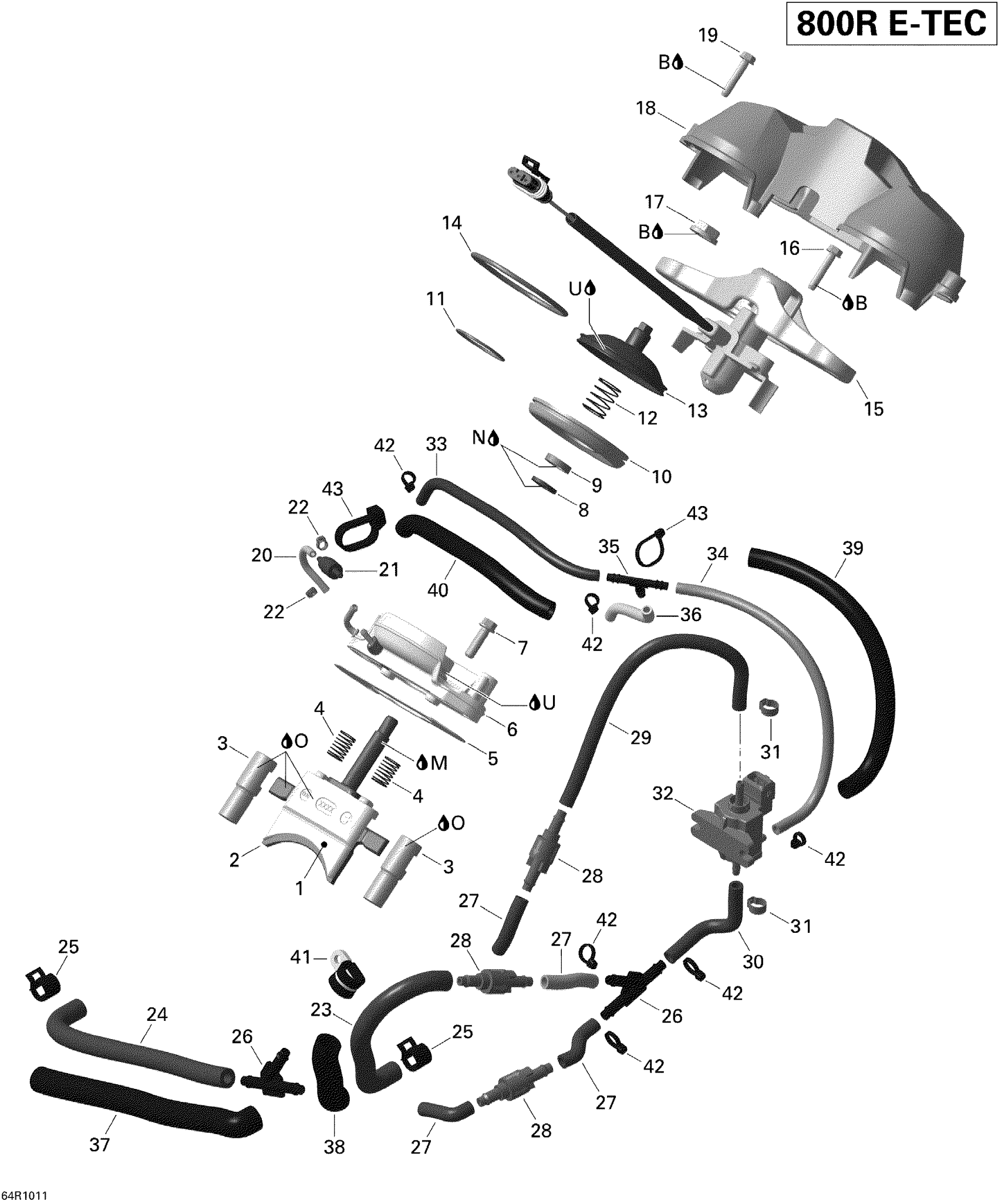

Ski-Doo MX Z X 800R ETEC, 2010 01- 3D Rave Diagram

#

Description
Price

1

Upper Exhaust Valve | Composante émission de type échappement.

420854900

$22.49

2

Lower Exhaust Valve This part replaces 420854909.

420854904

$63.99

3

Exhaust Valve

420854890

$12.49

4

Spring

420238558

$5.39

5

Gasket

420430032

$19.16

6

Valve Housing

420854888

$99.49

7

Torx Flange Screw M6 X 20

420440207

$3.06

8

Gasket Ring

420431380

$8.57

9

Oil Seal | Included in gasket kit

420950732

$9.27

10

Bellows

420260725

$42.49

11

Hose Spring This part replaces 420838253.

420838255

$7.41

12

Spring

420238557

$5.39

13

Valve Cover

420854442

$35.99

14

Hose Spring This part replaces 420939285.

420939286

$11.60

15

Position Sensor

420854089

$114.99

16

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

17

Nut M12 X 1.5

420942190

$14.22

18

Cover

420910821

$14.22

19

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.11

20

Oil Hose 1500Mm Long

219704404

$17.26

21

Check Valve Ass’y

420956515

$8.59

22

Clamp

420851508

$14.22

23

MOLDED HOSE - Call your local BRP dealership

420460782

Unavailable

24

MOLDED HOSE - Call your local BRP dealership

420460782

Unavailable

25

Clamp

420853511

$7.51

26

Y-Fitting

293710059

$9.69

27

HIGH PRESSURE AIR HOSE, 40 MM - Call your local BRP dealership

420460851

$13.49

28

Check Valve

420660543

$29.99

29

Polyurethane Hose 10000Mm Long

219704410

$56.99

30

HIGH PRESSURE AIR HOSE, 80 MM - Call your local BRP dealership

420460852

Unavailable

31

Gear Clamp

420853658

$7.65

32

Solenoid Valve

270600005

$116.49

33

High Pressure Air Hose, 180 mm

420660571

$14.22

34

HIGH PRESSURE AIR HOSE, 220 MM - Call your local BRP dealership

420660575

Unavailable

35

T-Fitting

293710068

$8.29

36

HIGH PRESSURE AIR HOSE, 50 MM - Call your local BRP dealership

420660572

Unavailable

37

Was 409901800 Tubing (13 mm)

219704400

$14.49

38

Was 409901800 Tubing (13 mm)

219704400

$14.49

39

Tubing 10 MM 1000MM Long

219704407

$2.79

40

Tubing 10 MM 1000MM Long

219704407

$2.79

41

Clamp

420851250

$10.33

42

Tie Wrap 94 mm | 4X4

293750001

$1.03

43

Tie Rap

420866714

$1.90

B

Loctite 243, 10 ml

293800060

$21.49

M

Molykote G-N, 50 g

420297433

$26.99

N

Dow Corning 111, 150 g

413707000

$59.99

O

Not Available As Spare Part - Friction Washer

Unavailable

U

Sealing Compound Loctite 5366 310Ml

420297907

$54.99
