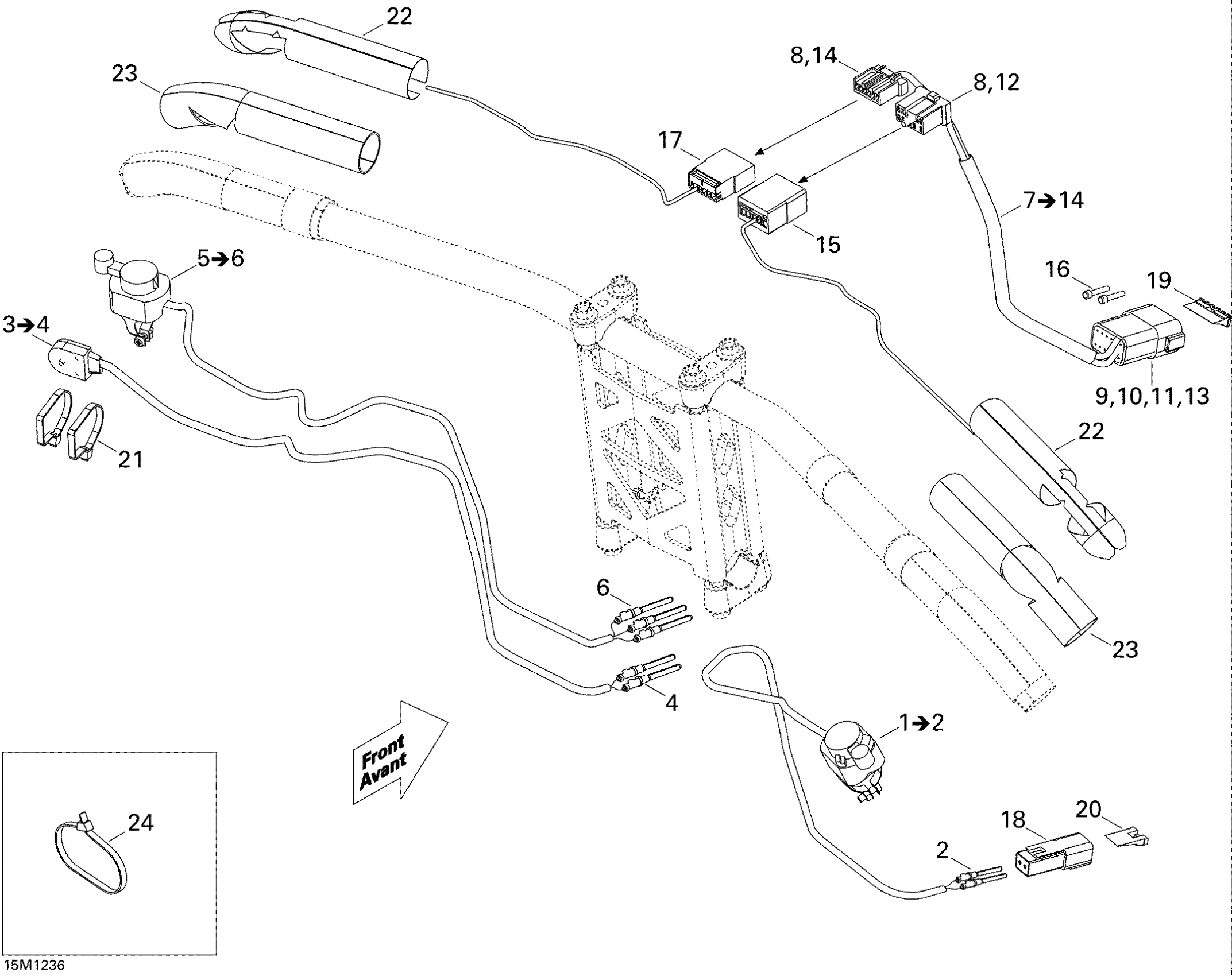

Ski-Doo MX Z X 600RS, 2012 10- Steering Wiring Harness Diagram

#

Description
Price

1

Kill Switch

515177454

$63.49

2

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

3

SWITCH - Call your local BRP dealership | Includes 2800A to 2800B

515176631

Unavailable

4

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

5

DIMMER SWITCH - Call your local BRP dealership | Includes 2810A to 2810B

515177434

Unavailable

6

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

7

STEERING HARNESS - Call your local BRP dealership | Includes 3200A to 3200H

515176633

Unavailable

8

Female Terminal

515175231

$4.39

9

Male Terminal

278000631

$4.39

10

MALE LOCK, 12 CIRCUITS - Call your local BRP dealership

409015600

Unavailable

11

Sealing Cap

293000052

$3.19

12

Female Terminal Housing, 6 Circuits

515175543

$9.49

13

MALE HOUSING - Call your local BRP dealership

515175669

Unavailable

14

Female Terminal Housing, 8 Circuits

515175819

$7.62

15

Male Terminal Housing, 8 Circuits

515175817

$8.79

16

Sealing Cap

293000052

$3.19

17

Male Terminal Housing, 6 Circuits

515175662

$8.79

18

Male Terminal Housing, 2 Circuits

515175665

$9.29

19

MALE LOCK, 12 CIRCUITS - Call your local BRP dealership

409015600

Unavailable

20

Male Lock, 2 Circuits

409207500

$3.19

21

Tie Wrap 142 mm

293750002

$1.25

22

Heating Element 20W

506152484

Unavailable

23

Insulant

506152360

$6.29

24

Tie Wrap 94 mm | 4X4

293750001

$1.03

24

Tie Wrap 142 mm

293750002

$1.25

24

Tie-Rap 180 mm

414115200

$0.11

24

Tie Wrap 368 mm

293750008

$1.04
