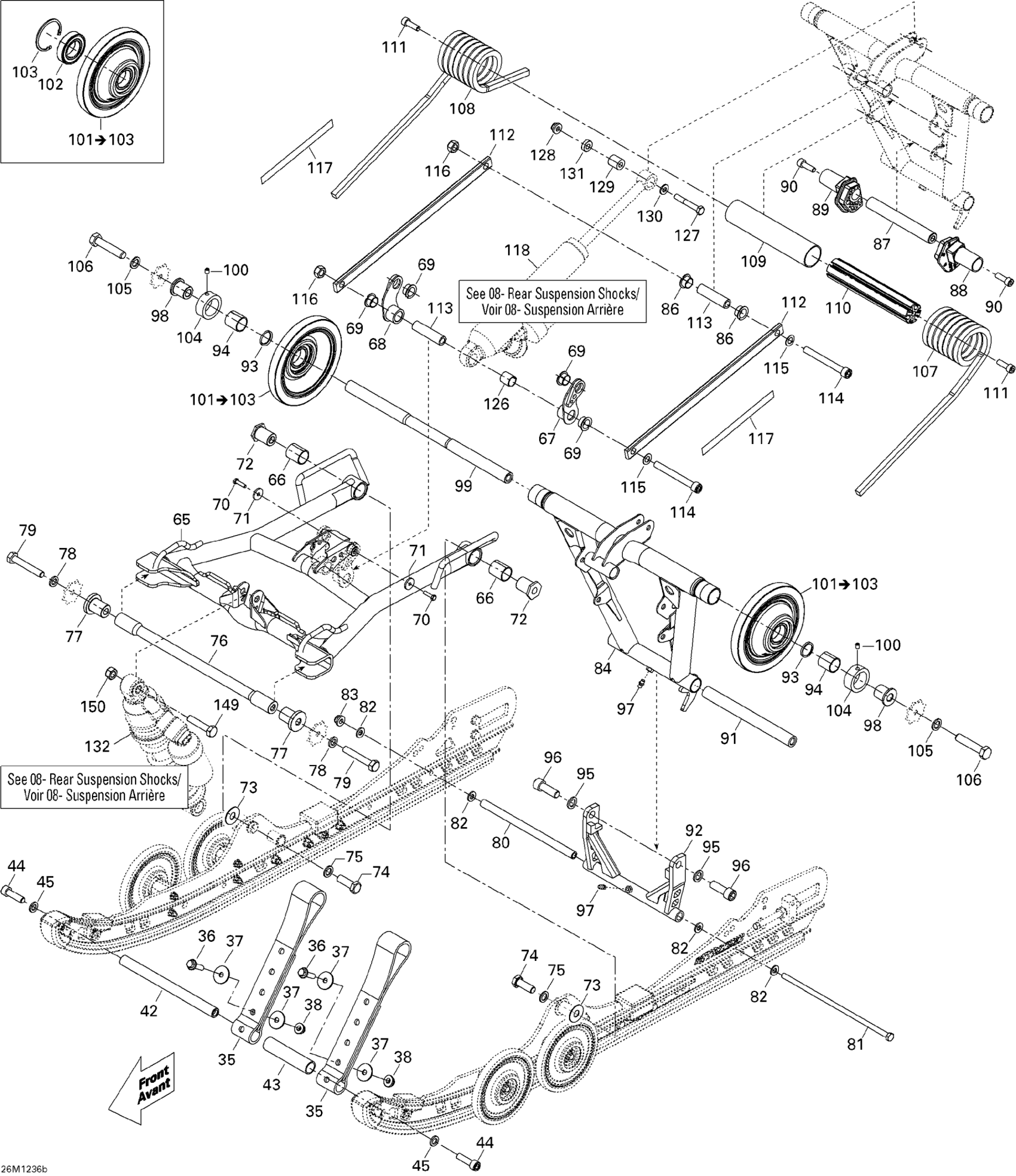

Ski-Doo MX Z X 600RS, 2012 Rear Suspension Arm Diagram

#

Description
Price

35

Stopper Strap

503192360

$20.99

36

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.69

37

Flat Washer

224081301

$0.88

38

Hex. Flange Elastic Nut M8

233281414

$1.47

42

RUNNER AXEL - Call your local BRP dealership

503192115

Unavailable

43

Spacer

503189265

$4.99

44

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.69

45

Washer

503189564

$0.74

65

Front Arm Ass'y

503192673

Unavailable

66

Bushing

503191554

$6.14

67

LH ROCKER ARM - Call your local BRP dealership

503192706

Unavailable

68

RH ROCKER ARM - Call your local BRP dealership

503192707

Unavailable

69

Swivel Bushing

503191555

$7.83

70

Hex. Screw M5 X 20

207152044

$0.90

71

Washer

250200016

$0.74

72

Lower Axle

503191966

$15.89

73

Washer

503190656

$2.96

74

Hex. Cap Screw M12 X 35

250000537

$3.17

75

Washer

503189276

$3.28

76

Slide Bushing

503192713

$98.49

77

Bushing

503192721

$35.99

78

Washer

503189564

$0.74

79

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.51

80

Pivot Arm Axle

503189156

$21.99

81

Bolt M8 X 248mm

503192440

$30.49

82

Washer

503192494

$3.17

83

Elastic Flange Nut M8

250100131

Unavailable

84

Rear Arm

503193126

$349.49

86

Swivel Bushing

503191555

$7.83

87

Spring Cam Axe

503191178

$28.99

88

LH Spring Cam

503191191

$15.79

89

RH Spring Cam

503191190

$15.29

90

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

91

Lower Shaft

503192095

$45.99

92

Pivot Arm

503192701

$294.99

93

Washer

503191774

$2.32

94

Bushing

503191773

$16.79

95

Washer | 7415/7416. 7417/7418.

503189148

$2.85

96

Socket Head Screw Scotch Grip Din.912

205523587

$2.11

97

Grease Fitting

408200700

$3.49

98

Bushing

503191775

$17.39

99

Upper Shaft

503191776

$45.99

100

Socket Set Screw M6 X 8

206260844

$1.48

101

BLACK WHEEL ASS'Y 155 MM - Call your local BRP dealership

503192483

Unavailable

102

Ball Bearing

503191778

$12.49

103

Retaining Ring

415129598

$12.01

104

Retaining Ring

503191782

$17.99

105

Washer

503189276

$3.28

106

HEX. SCREW M12 X 60, SCOTCH GRIP - Call your local BRP dealership

207226044

Unavailable

107

LH Spring, Square

503191615

$62.49

108

RH Spring, Square

503191614

$62.49

109

Plastic Bushing

503191345

$7.83

110

Spring Axle

503191344

$36.99

111

Socket Head Screw M8 X 25, Scotch Grip | XXC

205582544

$1.90

112

ROD_LINK - Call your local BRP dealership

503192712

Unavailable

113

Bar Axle

503191192

$41.49

114

Socket Screw M10 X 90

205009044

$8.01

115

Washer

503175800

$3.28

116

Elastic Stop Nut M10

232500416

$1.90

117

Shock Position Decal

516005609

$19.99

118

Not Available As Spare Part - Friction Washer

Unavailable

126

Leg Cushion

505072663

$9.23

127

Hex. Screw M8 X 55

207085586

$7.41

128

Hex. Elastic Flange Nut M8

233281416

$1.48

129

Bushing

414936000

$13.99

130

Washer

503189157

$3.28

131

Spacer

503190526

$10.49

132

Not Available As Spare Part - Friction Washer

Unavailable

149

Hex. Screw M10 X 1.5 X 50

207005044

$3.80

150

Elastic Locking Nut M10 X 1.5

233601416

$1.69
