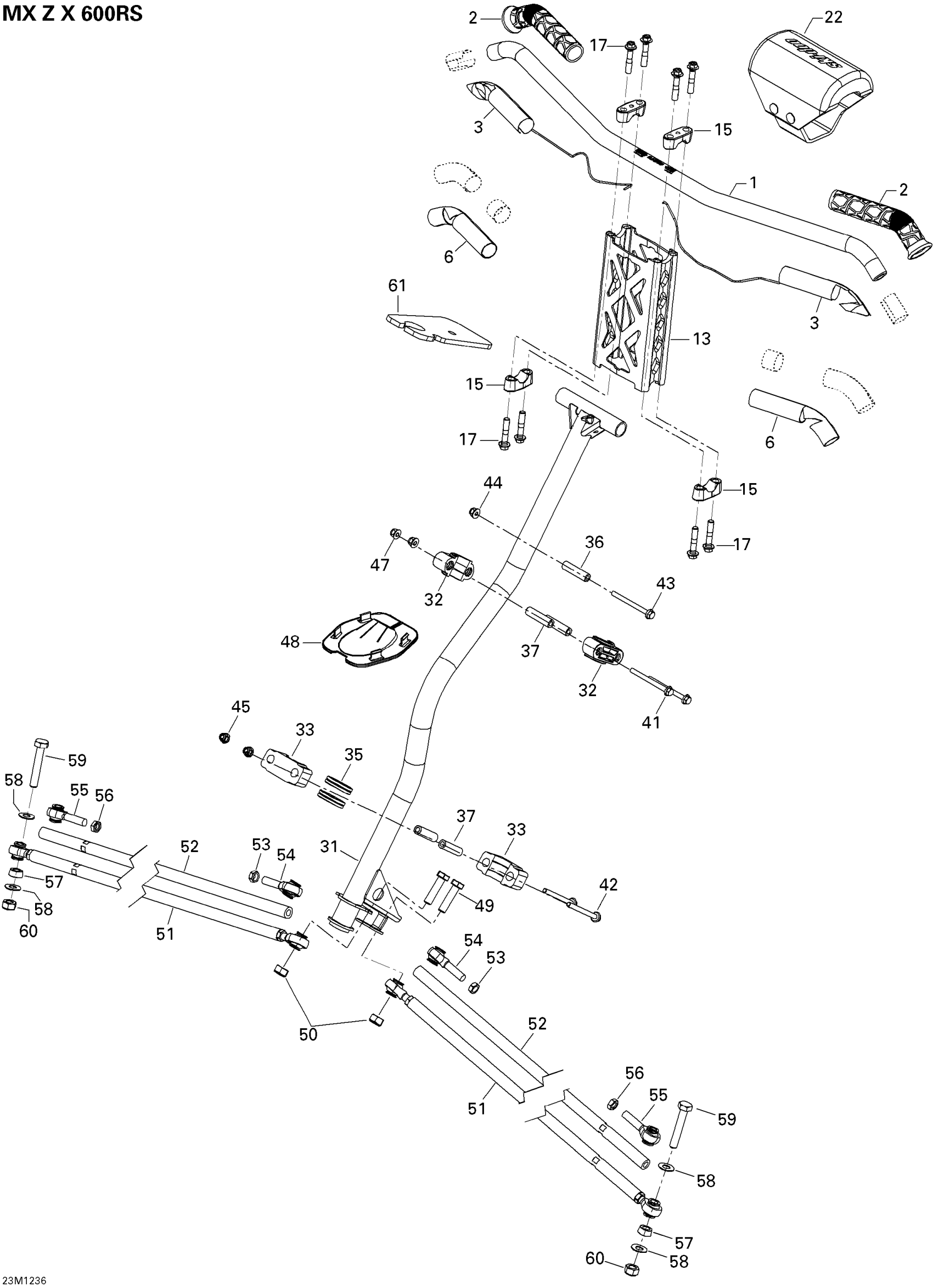

Ski-Doo MX Z X 600RS, 2012 Steering Diagram

#

Description
Price

1

FULL MOON HAND BAR - Call your local BRP dealership

506152712

Unavailable

2

Grip

506152486

$16.34

3

Heating Element 20W

506152484

Unavailable

6

Insulant

506152360

$6.29

13

Gold Handle Bar Extension

506152529

Unavailable

15

Steering Support | Includes 40 to 40a

506152751

$13.99

17

Hex. Flange Screw M8 X 40

250000352

$3.38

22

STEERING PAD - Call your local BRP dealership

506152522

$53.99

31

Steering Column

506152962

$199.99

32

Half-Housing

506152293

$12.99

33

LOWER HALF-HOUSING - Call your local BRP dealership

506152549

Unavailable

35

Lower Vibration Ring

506152518

$4.79

36

Housing Bushing

506152297

$12.99

37

Housing Bushing

506152297

$12.99

41

Hex. Flange Screw M6 X 70

207667056

$4.44

42

Hex. Flange Screw M6 X 70

207667044

$0.85

43

Hex. Flange Screw M6 X 70

207667056

$4.44

44

Elastic Flange Nut M6 X 1.0

233261416

$2.11

45

Elastic Flange Nut M6 X 1.0

233261416

$2.11

47

Elastic Flange Nut M6 X 1.0

233261416

$2.11

48

Plate

506152163

$12.99

49

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

50

Elastic Stop Nut M10

232500416

$1.90

51

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

52

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

53

LH Thread Ball Joint

506152081

$41.49

54

LH Threaded Hex. Jam Nut M10

250100016

$0.74

55

RH Threaded Ball Joint

506152019

$41.49

56

RH Threaded Hex. Jam Nut M10

732610010

$0.74

57

Flat Washer 10 mm

234001410

$1.26

58

Washer

506152194

$4.55

59

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

60

Elastic Stop Nut M10

232500416

$1.90

61

Bushing

506152476

$12.58
