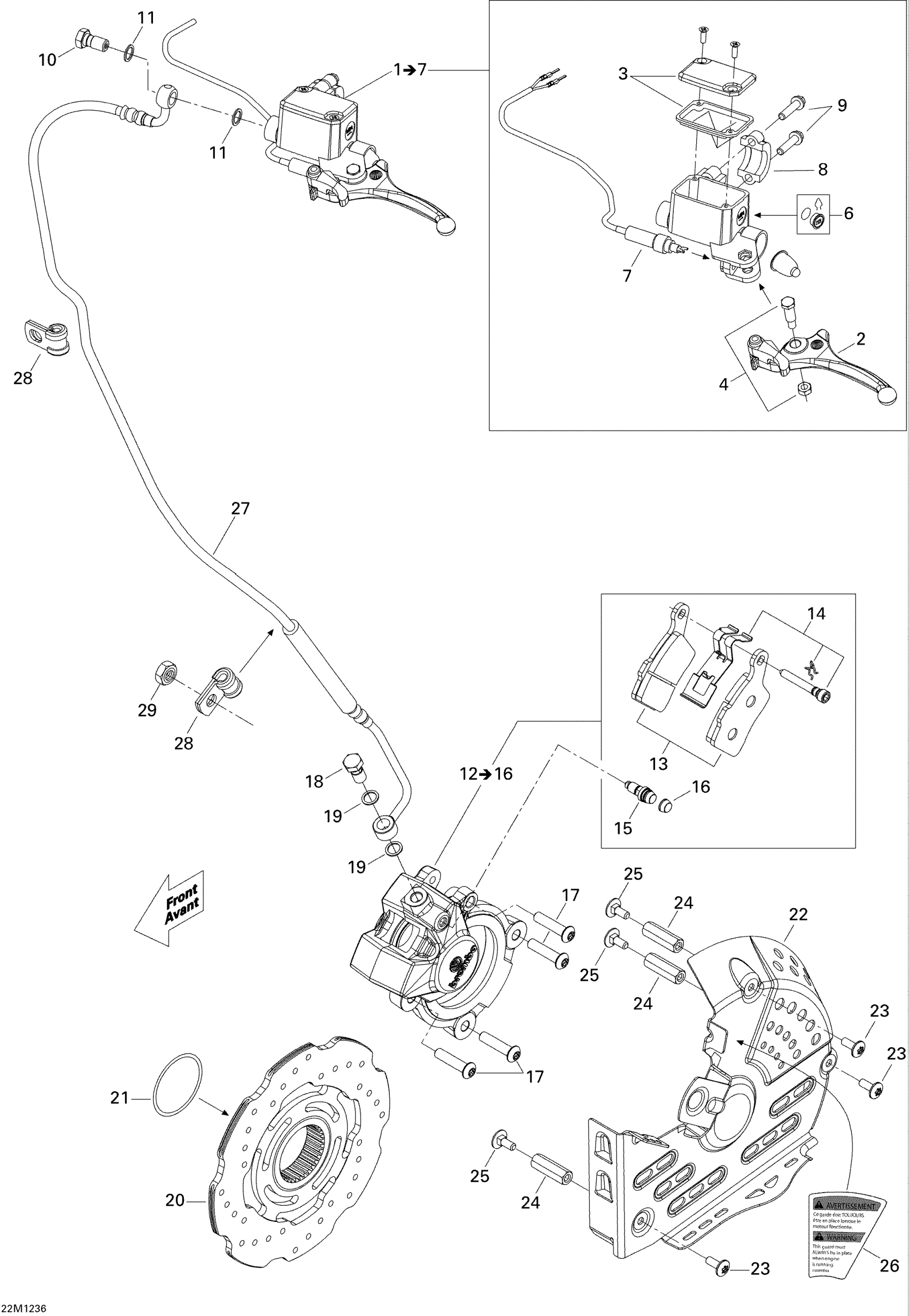

Ski-Doo MX Z X 600RS, 2012 Hydraulic Brakes Diagram

#

Description
Price

1

CYLINDER MASTER ASS'Y - Call your local BRP dealership | Includes 6 to 6d

507032511

Unavailable

2

LEVER - Call your local BRP dealership

507032428

Unavailable

3

Cap

415029900

$41.51

4

Pin Ass'y

415030000

$17.66

6

WINDOW - Call your local BRP dealership

414990600

Unavailable

7

Microswitch

507032526

$38.43

8

Clamp And Screw Kit

507032477

$23.05

9

Hex. Flange Screw M6 X 25

250000447

$2.06

10

Banjo Bolt

507032551

$5.52

11

Copper Washer

705601628

$4.34

12

Brake Caliper Ass'y | Includes 17 to 17c This part replaces 507032603.

507032501

$470.74

13

Brake Pads Kit

507032489

$64.32

14

Brake Spring Kit

507032722

$36.89

15

Bleeder

507032475

$16.89

16

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.66

18

Banjo Bolt

507032551

$5.52

19

Copper Washer

705601628

$4.34

20

Disk

507032513

$235.35

21

O-Ring

293300134

$2.25

22

DISK PROTECTOR, ALUMINUM - Call your local BRP dealership

507032531

$93.05

23

Torx Screw M6 X 16

25000223

Unavailable

24

THREADED TUBE - Call your local BRP dealership

507032533

Unavailable

25

Carriage Bolt M6 X 1.0 X 16

207761644

$1.74

26

Warning Decal

516005525

Unavailable

27

HOSE - Call your local BRP dealership

507032517

Unavailable

28

Clamp

293650256

$4.36

29

Elastic Stop Nut M6

232561414

$1.55
