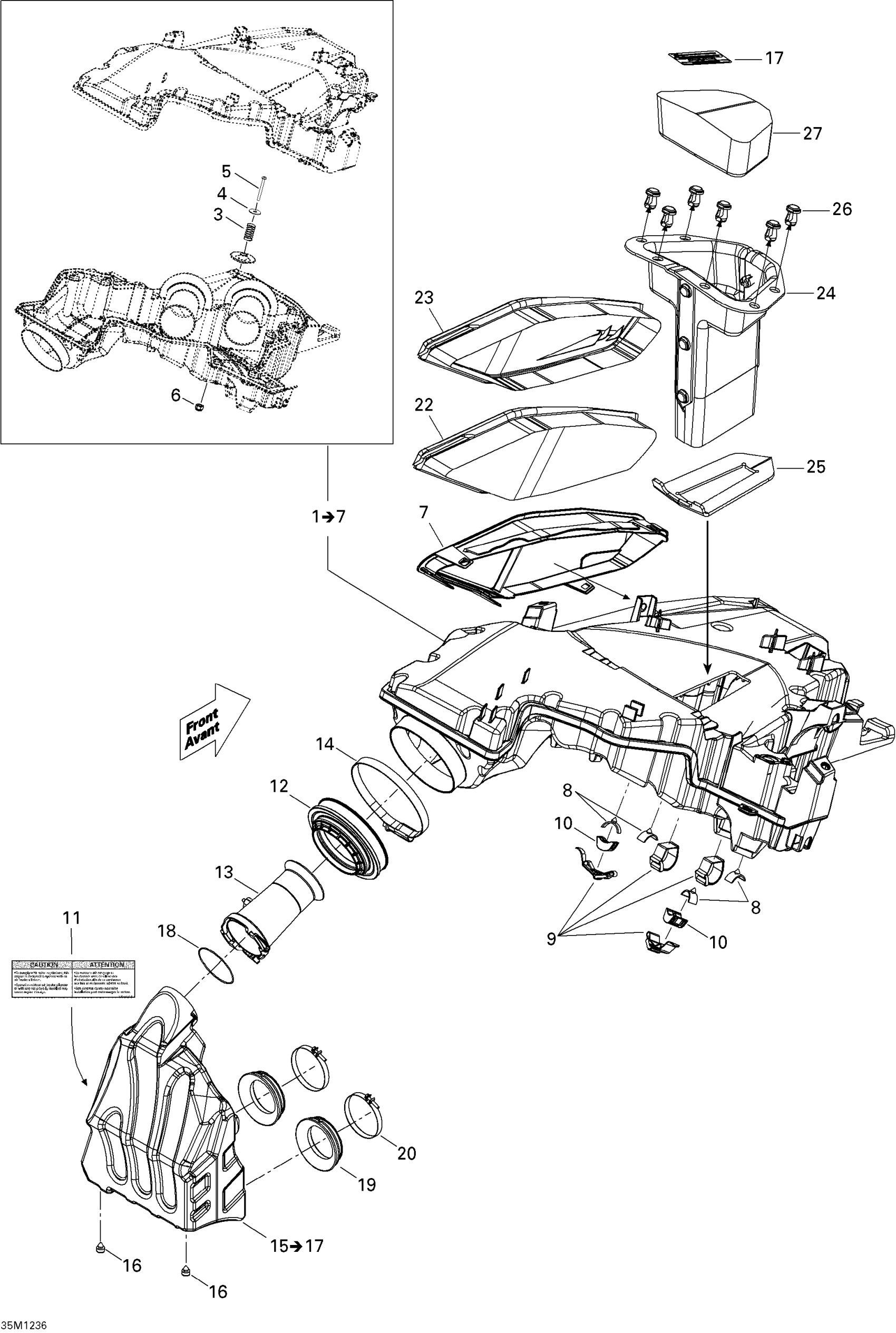

Ski-Doo MX Z X 600RS, 2012 Air Intake System Diagram

#

Description
Price

1

SECONDARY CHAMBER - Call your local BRP dealership | Includes 1 to 7

508000623

Unavailable

3

Spring

508000576

$7.13

4

Flat Washer

224060201

$1.12

5

Socket Head Screw M4 X 40 | X

205444086

$1.63

6

Elastic Stop Nut M4

232541414

$0.55

7

Air Filter

508000626

$36.54

8

Stopper

508000537

$7.13

9

Velcro Strip

508000820

$7.13

10

Bumper

508000572

Unavailable

11

Caution Decal, Hot Parts

516004566

$8.43

12

Boot

508000567

$16.39

13

Flute

508000662

$13.24

14

Norma Clamp

514052924

$12.15

15

PRIMARY CHAMBER ASS'Y - Call your local BRP dealership

508000535

Unavailable

16

Rubber Bumper

293830005

$6.12

17

DECAL, AIR INTAKE - Call your local BRP dealership

516004572

Unavailable

18

O-Ring

293300115

$3.01

19

INTAKE ADAPTER - Call your local BRP dealership

508000721

Unavailable

20

Gemi Clamp

508000346

$9.03

22

Foam Filter

415129377

$35.79

23

Filter Cover

415129376

$69.37

24

AIR DUCT ASS'Y - Call your local BRP dealership

508000633

Unavailable

25

FOAM - Call your local BRP dealership

508000637

Unavailable

26

Tuflok Plastic Rivet

293150230

$1.39

27

AIR INTAKE FOAM - Call your local BRP dealership

508000634

Unavailable
