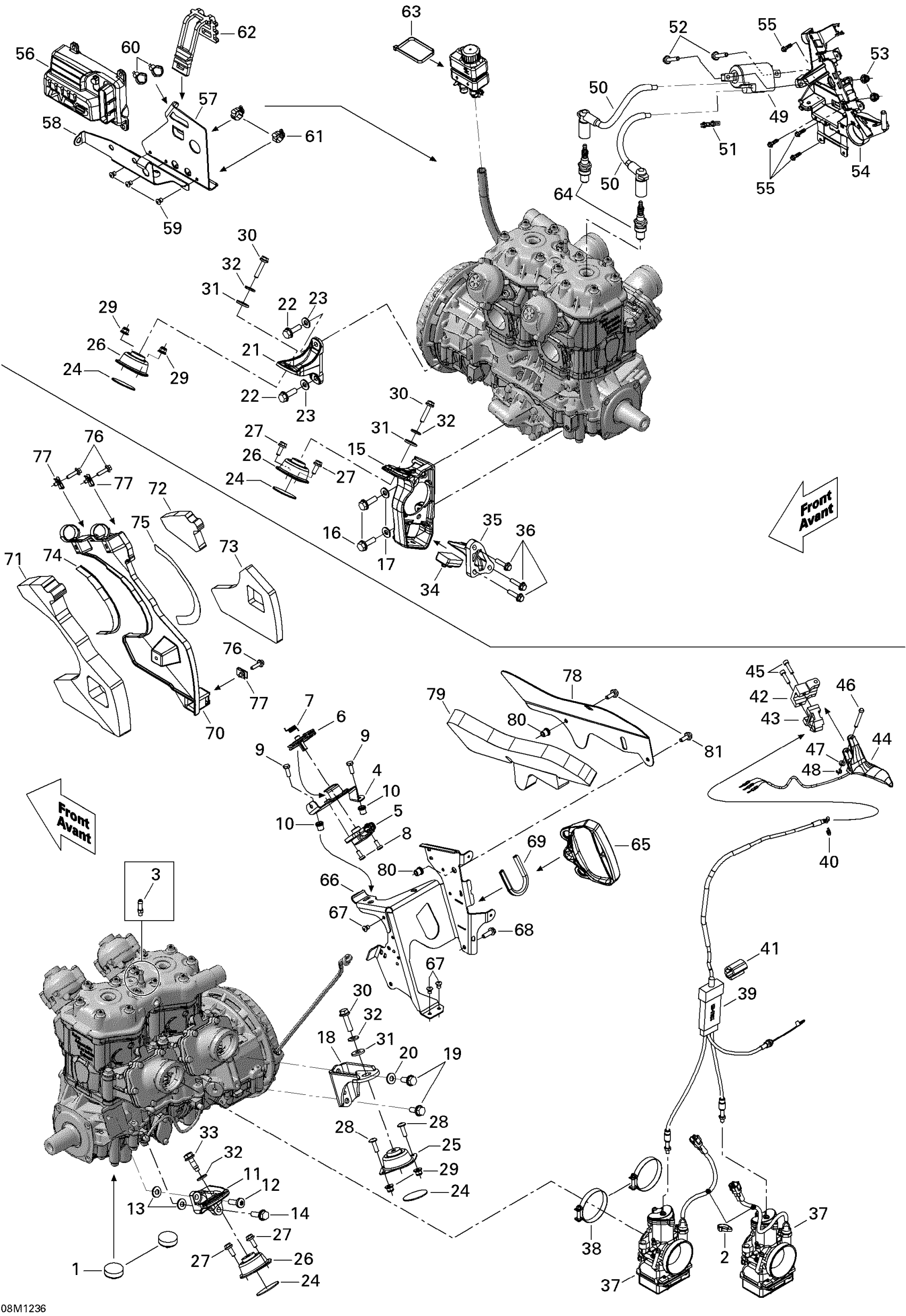

Ski-Doo MX Z X 600RS, 2012 01- Engine And Engine Support Diagram

#

Description
Price

1

Stopper

512059738

$23.99

2

Tie-Rap 180 mm

414115200

$0.11

3

Hose Nipple

420924724

$14.83

4

TPS SUPPORT - Call your local BRP dealership

512060336

Unavailable

5

Sensor Ass'y

404162079

$359.99

6

CAP CAM - Call your local BRP dealership

512060335

Unavailable

7

CAM SPRING - Call your local BRP dealership

512060638

Unavailable

8

PHILLIPS SCREW M5 X 12 - Call your local BRP dealership

208651241

Unavailable

9

Hex. Screw M6 X 16, Scotch Grip | Europe

207361644

$0.87

10

Insert

293450275

$12.99

11

Rear Support, PTO

512060478

$31.99

12

Torx Screw M8 X 1.25 X 25, Scotch Grip

250000752

$0.85

13

Conical Spring Washer M8

234281474

$1.48

14

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

15

FRONT SUPPORT PTO - Call your local BRP dealership This part replaces 512060699.

512060712

Unavailable

16

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

17

Conical Spring Washer M8

234281474

$1.48

18

REAR ENGINE SUPPORT, MAG - Call your local BRP dealership

512060568

Unavailable

19

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

20

Conical Spring Washer M8

234281474

$1.48

21

FRONT SUPPORT, MAG - Call your local BRP dealership

512060108

Unavailable

22

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.90

23

Conical Spring Washer M8

234281474

$1.48

24

RUBBER WASHER - Call your local BRP dealership

512060410

Unavailable

25

Rubber Mount

512060772

$114.99

26

Rubber Mount

512060385

$60.99

27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

28

Hex. Socket Screw M6 X 20

250000770

$2.09

29

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

30

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$4.44

31

Yellow, Washer

503183200

$3.19

32

Conical Spring Washer M8

234281474

$1.48

33

Hex. Flange Screw M8 X 1.25 X 25

250000796

$2.11

34

Stopper

512060766

$10.33

35

Stopper Support

512060576

$29.49

36

Hex. Flange Screw M6 X 25

207562544

$1.69

37

Carburator, TMX38-73

403138816

Unavailable

38

Gemi Clamp

512059835

$11.60

39

THROTTLE CABLE - Call your local BRP dealership

512060550

Unavailable

40

Circlip

414274500

$0.90

41

Protector

512060313

$10.33

42

UPPER HOUSING - Call your local BRP dealership

512059538

Unavailable

43

Lower Housing

512059537

$74.99

44

HANDLE ASS'Y - Call your local BRP dealership

512060431

Unavailable

45

Socket Screw M5 X 25

205052544

$1.68

46

Lever Pin

414438700

$11.64

47

Flat Washer M5, Stainless

234051600

$0.77

48

Circlip

293370050

$0.46

49

Ignition Coil

512059968

$51.99

50

Cable

512060291

$51.99

51

Plastic Clip, Spark Plug Wire

410914600

$5.61

52

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

53

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

54

COILS SUPPORT - Call your local BRP dealership

512060925

Unavailable

55

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.47

56

CALIBRATED MODULE - Call your local BRP dealership

512060804

Unavailable

57

ECM SUPPORT - Call your local BRP dealership

512060337

$33.99

58

TANK SUPPORT - Call your local BRP dealership

512060379

Unavailable

59

Avex Rivet

390909200

$0.30

60

Tie-Rap 180 mm

414115200

$0.11

61

Tridon Gear Clamp

293650172

$3.09

62

LATCH - Call your local BRP dealership

570069700

Unavailable

63

Tie Wrap 368 mm

293750008

$1.04

64

Spark Plug NGK BR9ECS-5

512059552

$10.59

65

Starter Grip

512060136

$14.83

66

GRIP SUPPORT - Call your local BRP dealership

512060770

Unavailable

67

Avex Rivet

390909200

$0.30

68

Hexagonal Head Screw

210262050

$2.11

69

TRIM 30000MM LONG - Call your local BRP dealership

219704405

$99.99

70

NOISE SHIELD - Call your local BRP dealership

512060339

Unavailable

71

Interior Noise Foam

512060343

$20.99

72

Upper Exterior Noise Foam

512060344

$10.33

73

LOWER EXTERIOR NOISE FOAM - Call your local BRP dealership

512060362

Unavailable

74

Heat Shield

512060574

$7.79

75

Heat Shield

512060575

$8.59

76

Hex.Flange Screw M5 X 20

207652044

$1.90

77

Panel Nut M5 X 0.8

250000958

$4.23

78

REAR NOISE SHIELD - Call your local BRP dealership

512060492

Unavailable

79

Rear Noise Foam

512060381

Unavailable

80

Insert

293450275

$12.99

81

Hex. Flange Screw M6 X 16

207661644

$0.74
