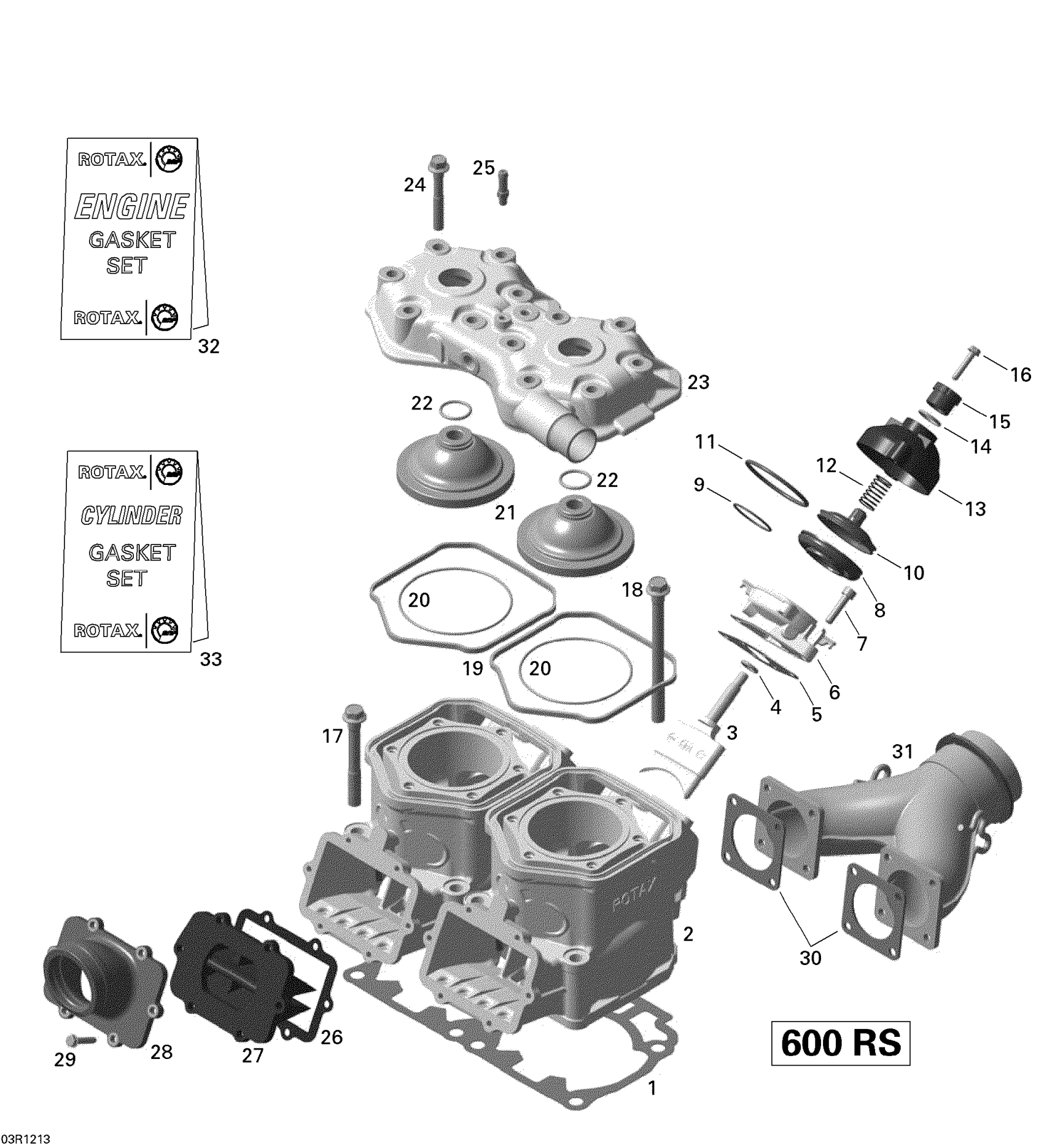

Ski-Doo MX Z X 600RS, 2012 Cylinder, Exhaust Manifold And Reed Valve Diagram

#

Description
Price

1

GASKET 0.5 MM - Call your local BRP dealership

420450180

Unavailable

1

GASKET 0.6 MM - Call your local BRP dealership

420450181

Unavailable

1

GASKET 0.7 MM - Call your local BRP dealership

420450182

Unavailable

1

GASKET 0.8 MM - Call your local BRP dealership

420450183

Unavailable

2

CYLINDER - Call your local BRP dealership

420413350

Unavailable

3

Exhaust Valve

420854650

$66.89

4

Gasket

420931542

$6.62

5

O-Ring

420430110

$3.61

6

Valve Housing

420854455

$75.99

7

Socket Head Screw M6 X 25

205062544

$0.88

8

Bellows

420260729

$37.66

9

Hose Spring This part replaces 420838253.

420838255

$6.11

10

Exhaust Valve This part replaces 290253257.

420854449

$29.87

11

Hose Spring This part replaces 420239048.

420939281

$5.99

12

Spring This part replaces 420239944.

420239954

$7.31

13

Valve Cover This part replaces 420911558.

420911559

$24.02

14

O-Ring

420430220

$8.03

15

Adjuster Screw

420241221

$12.52

16

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

17

Hex. Collar Screw

420640524

$11.52

18

Hex. Collar Screw

420640534

$13.58

19

Rubber Ring

420931590

$5.69

20

O-Ring This part replaces 420850540.

293300026

$2.67

21

COMBUSTION CHAMBER INSERT - Call your local BRP dealership

420623358

Unavailable

22

O-Ring

420430373

$2.63

23

Cylinder Head Cover

420623545

$339.99

24

Hex. Screw M8 X 56.5

420941627

$8.34

25

Hose Nipple

420924724

$12.29

26

Gasket

420630815

$13.58

27

REED VALVE ASS'Y - Call your local BRP dealership

420924791

Unavailable

28

Intake Socket

420667500

$118.43

29

Hex. Taptite Screw M5 X 25 This part replaces 420241270.

420241271

$2.05

30

Gasket

420850552

$7.92

31

EXHAUST MANIFOLD - Call your local BRP dealership

420673422

Unavailable

32

Gasket Set, Engine

420889931

$245.35

33

Gasket Set, Cylinder

420889936

$170.74
