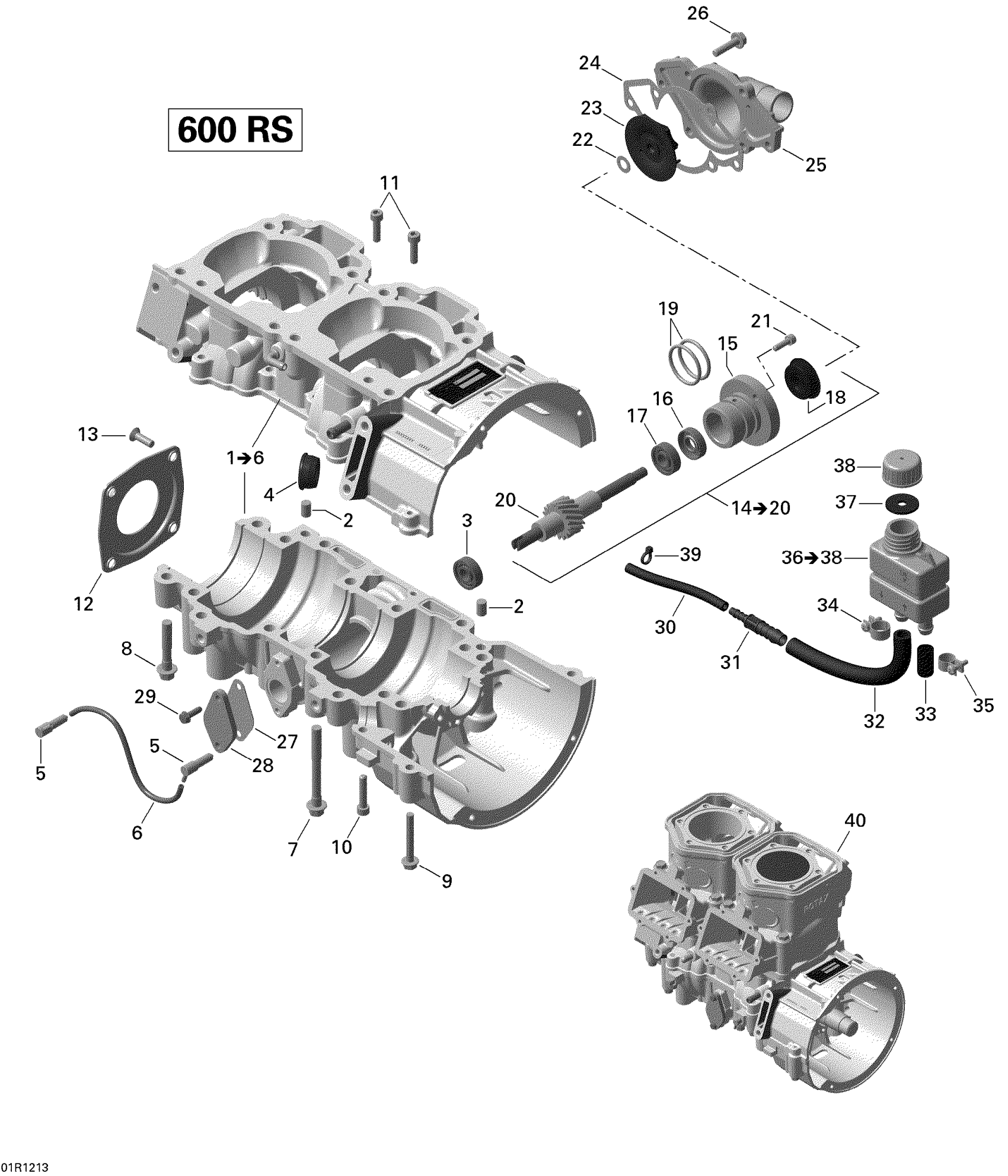

Ski-Doo MX Z X 600RS, 2012 Crankcase Diagram

CRANKCASE ASS'Y - Call your local BRP dealership | Includes 1 to 6

420893291

Unavailable

Center Pin 8 X 12

420632010

$3.52

Ball Bearing

420232100

$17.88

Cable Grommet

420860965

$13.18

Check Valve

420956511

$32.81

Oil Hose 1500Mm Long

219704404

$15.64

Hex. Collar Screw M8 X 75

420640836

$1.88

Hex. Collar Screw M8 x 45

420640432

$1.88

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.15

Socket Head Screw M6 X 30

205063044

$1.63

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.43

Oil Seal Cover

420812422

$14.10

Screw M6 X 20

420941436

$2.72

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$332.06

Not Available As Spare Part - Friction Washer

Unavailable

Oil Seal

420230195

$14.52

Ball Bearing

420232100

$17.88

Rotary Seal

420650371

$41.01

O-Ring

420950890

$4.15

Not Available As Spare Part - Friction Washer

Unavailable

Allen Screw M5 x 16

420840514

$1.79

Thrust Washer

420227945

$3.75

Water Impeller

420222505

$17.13

Gasket This part replaces 420931810.

420931811

$12.87

Water Pump Housing

420922630

$57.43

Hex. Screw M6 X 25

420240034

$1.79

Gasket This part replaces 420931566.

420931568

$9.03

Cover Plate

420810827

$14.10

Taptite Screw M5 X 16

420941928

Unavailable

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

Fitting

420874370

$14.10

OIL TUBE - Call your local BRP dealership

420956239

Unavailable

Closure Cap

420960279

$4.16

CLAMP - Call your local BRP dealership

420951260

Unavailable

CLAMP - Call your local BRP dealership

420951241

$8.04

Oil Tank Ass'y | Includes 25 to 27

420956240

$67.88

Rubber Gasket

420850350

$5.06

Oil Tank Cap

420956250

$13.18

Tie Rap

420866710

$5.00

SHORT BLOCK 593 RS - Call your local BRP dealership

420059322

Unavailable
