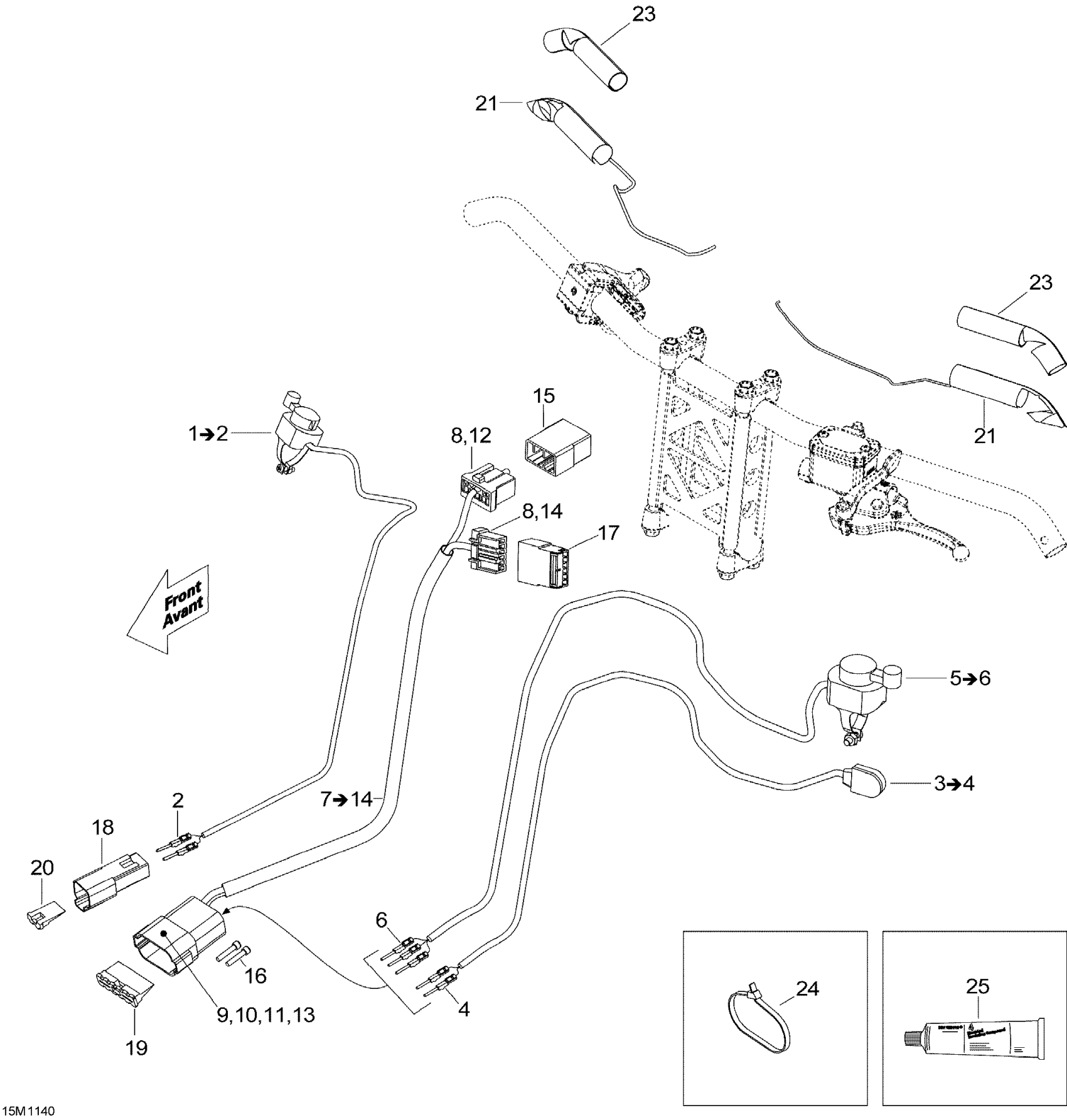

Ski-Doo MX Z X 600RS, 2011 Steering Wiring Harness Diagram

#

Description
Price

1

Kill Switch

515177454

Unavailable

2

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

3

SWITCH - Call your local BRP dealership | Includes 2800A to 2800B

515176631

Unavailable

4

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

5

DIMMER SWITCH - Call your local BRP dealership | Includes 2810A to 2810B

515177434

Unavailable

6

MALE TERMINAL - Call your local BRP dealership

515175768

Unavailable

7

STEERING HARNESS - Call your local BRP dealership | Includes 3200A to 3200H

515176633

Unavailable

8

Female Terminal

515175231

$4.12

9

Male Terminal

278000631

$4.12

10

MALE LOCK, 12 CIRCUITS - Call your local BRP dealership

409015600

Unavailable

11

Sealing Cap

293000052

$2.55

12

Female Terminal Housing, 6 Circuits

515175543

$8.57

13

MALE HOUSING - Call your local BRP dealership

515175669

Unavailable

14

Female Terminal Housing, 8 Circuits

515175819

$7.46

15

Male Terminal Housing, 8 Circuits

515175817

$8.57

16

Sealing Cap

293000052

$2.55

17

Male Terminal Housing, 6 Circuits

515175662

$8.57

18

Male Terminal Housing, 2 Circuits

515175665

$8.02

19

MALE LOCK, 12 CIRCUITS - Call your local BRP dealership

409015600

Unavailable

20

Male Lock, 2 Circuits

409207500

$3.02

21

Heating Element 20W

506152484

Unavailable

23

Insulant

506152360

$5.89

24

Tie-Rap 180 mm

414115200

$0.09

24

Tie Wrap 368 mm

293750008

$0.85

24

Tie Wrap 142 mm

293750002

$0.88

24

Tie Wrap 94 mm | 4X4

293750001

$0.83

25

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66
