Description

Price

1

Speedometer | Includes 10 to 10c

515177910

$659.99

2

Speedometer Button | XTP

415129355

$15.80

3

Gauge Ring

415129348

$13.99

4

Lens | XTP

415129349

$24.49

5

BRP Logo 20MM x 2MM | XTP

516006224

$13.99

6

Brake Switch

515175653

$19.49

7

Plunger Cap

570151100

$9.85

8

Washer

250200032

$5.08

9

WASHER - Call your local BRP dealership

510004418

Unavailable

10

Switch Nut

515145900

$12.12

11

Cap Ass'Y This part replaces 515176462.

515178292

$38.99

12

Switch (Heating Grip) | FREERIDE

410107300

$35.99

13

Switch Cover

515175281

$15.99

14

Voltage Regulator

515176364

$153.49

15

Elastic Stop Nut M6

232561414

$0.55

16

Flat Washer 6 mm

234061410

$1.36

17

External Serrated Lock Washer 6 mm

234461608

$1.15

18

Temperature Sensor This part replaces 420664508.

420664509

$149.99

19

Female Terminal Housing, 2 Circuits

515175670

$8.39

20

Female Terminal

278000632

$2.09

21

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

22

Air Temperature Sensor

515176366

$19.99

23

Push Nut

389804300

$0.53

24

MAIN HARNESS - Call your local BRP dealership | Includes 1 to TS

415129537

Unavailable

25

Lock

515176681

$20.99

26

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

515176234

Unavailable

27

Clip

270000141

$11.49

28

Avdel Rivet 3/16"

293150037

$0.56

29

Pop Rivet 3/16"

390402200

$0.35

30

Ground Wire

515177289

$26.99

31

Black, Dart

414644300

$0.98

32

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

33

Tie-Rap 180 mm

414115200

$0.11

33

Tie Wrap 368 mm

293750008

$1.04

33

Tie Wrap 142 mm

293750002

$1.25

33

Tie Wrap 94 mm | 4X4

293750001

$1.03

34

RH Headlamp Ass'y | Includes 2400 to 2400c

517304194

$149.99

34

LH Headlamp Ass'y | Includes 2600 to 2600c

517304195

$149.99

35

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

36

BULB HOLDER - Call your local BRP dealership

515176493

Unavailable

37

Cap

515176498

$12.99

38

Rubber Cap Protector

219800280

$19.49

39

Torx Screw M6 X 20

250000722

$1.68

40

Panel Nut M6 X 1.0

250100198

$2.11

41

Tie Rap Mount (screwable)

515176795

$5.39

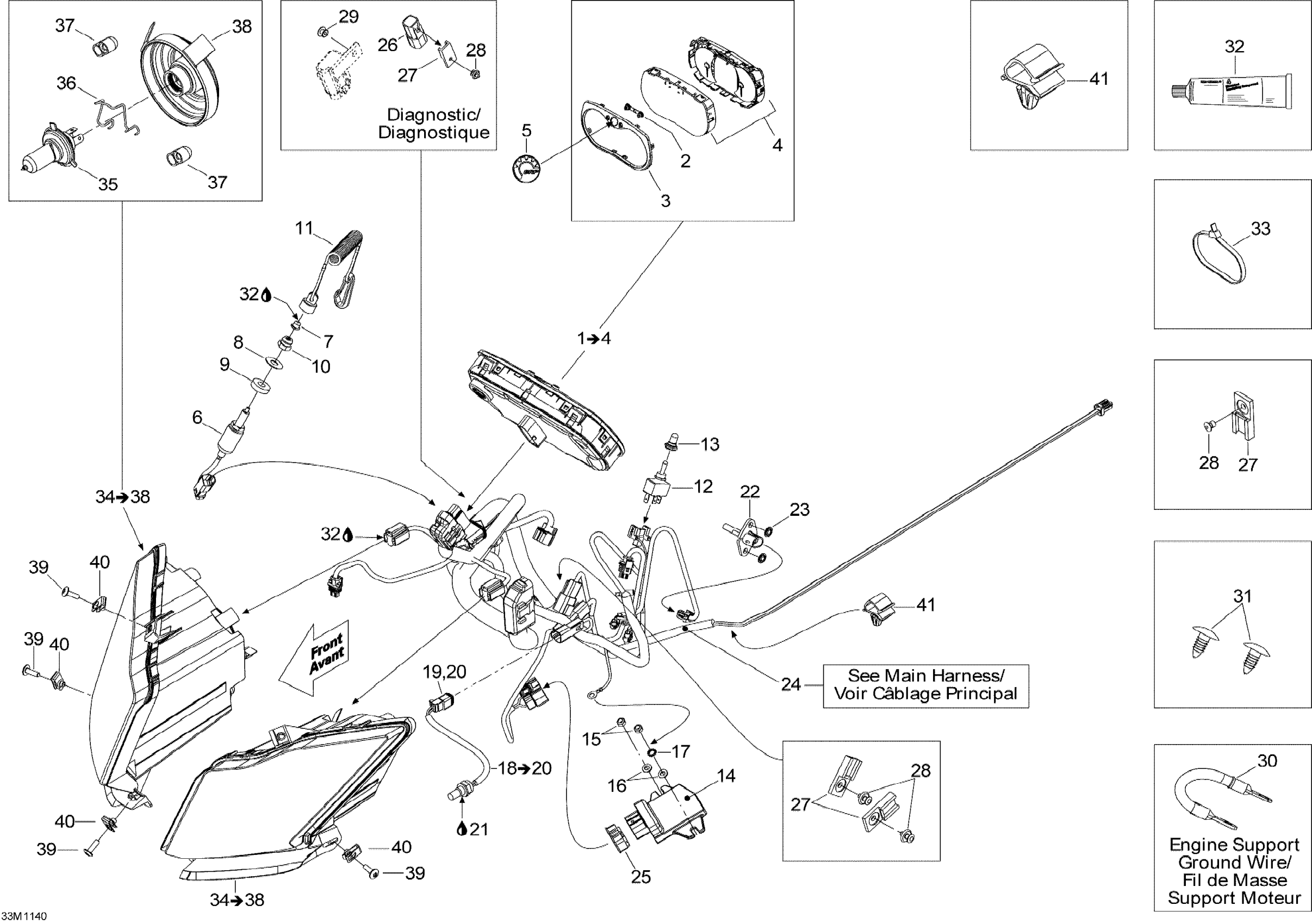

Ski-Doo MX Z X 600RS, 2011 10- Electrical System Diagram

Speedometer | Includes 10 to 10c

Speedometer Button | XTP

Gauge Ring

Lens | XTP

BRP Logo 20MM x 2MM | XTP

Brake Switch

Plunger Cap

Washer

WASHER - Call your local BRP dealership

Switch Nut

Cap Ass'Y This part replaces 515176462.

Switch (Heating Grip) | FREERIDE

Switch Cover

Voltage Regulator

Elastic Stop Nut M6

Flat Washer 6 mm

External Serrated Lock Washer 6 mm

Temperature Sensor This part replaces 420664508.

Female Terminal Housing, 2 Circuits

Female Terminal

Was 293800018 Loctite 592, 50 ml | Package T

Air Temperature Sensor

Push Nut

MAIN HARNESS - Call your local BRP dealership | Includes 1 to TS

Lock

FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership

Clip

Avdel Rivet 3/16"

Pop Rivet 3/16"

Ground Wire

Black, Dart

Was 293550004 Dielectric Grease, 150 g

Tie-Rap 180 mm

Tie Wrap 368 mm

Tie Wrap 142 mm

Tie Wrap 94 mm | 4X4

RH Headlamp Ass'y | Includes 2400 to 2400c

LH Headlamp Ass'y | Includes 2600 to 2600c

Halogen Bulb, 60/55 W, 12 V ( H4 )

BULB HOLDER - Call your local BRP dealership

Cap

Rubber Cap Protector

Torx Screw M6 X 20

Panel Nut M6 X 1.0

Tie Rap Mount (screwable)
