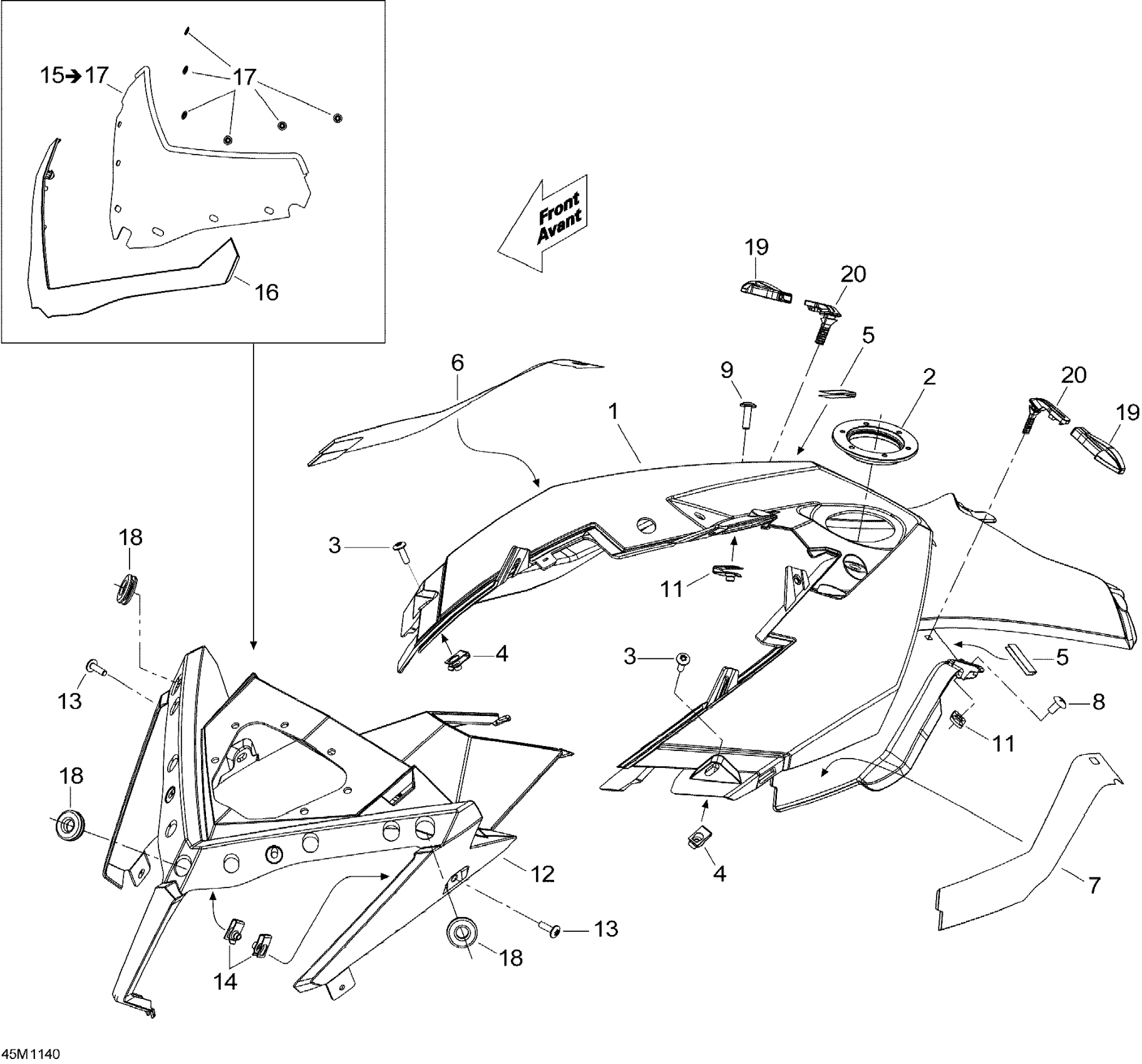

Ski-Doo MX Z X 600RS, 2011 Windshield And Console Diagram

#

Description
Price

1

YELLOW CONSOLE - Call your local BRP dealership

517304127

Unavailable

2

Console Nut

517304518

$13.37

3

Torx Screw M6 X 20

250000722

$1.54

4

Panel Nut M6 X 1.0

250100198

$1.99

5

Console Decal

517304105

$10.42

6

RH Decal

517304103

$16.39

7

LH Decal

517304104

$16.39

8

Torx Truss Screw M6 X 16

250000721

$1.60

9

Torx Screw M6 X 20

250000722

$1.54

11

Panel Nut M6 X 1.0

250100198

$1.99

12

INDICATOR SUPPORT - Call your local BRP dealership

517304699

Unavailable

13

Torx Screw M6 X 20

250000722

$1.54

14

Panel Nut M6 X 1.0

250100198

$1.99

15

Low Windshield Ass'y (140)

517304226

$99.22

16

Windshield Support Kit

860200089

$23.85

17

Push Nut

732610072

$1.97

18

Grommet

517303756

$3.61

19

Black Latch Kit | Includes 390 to 400

860200239

$15.64

20

Panel Latch

517303981

$9.49
