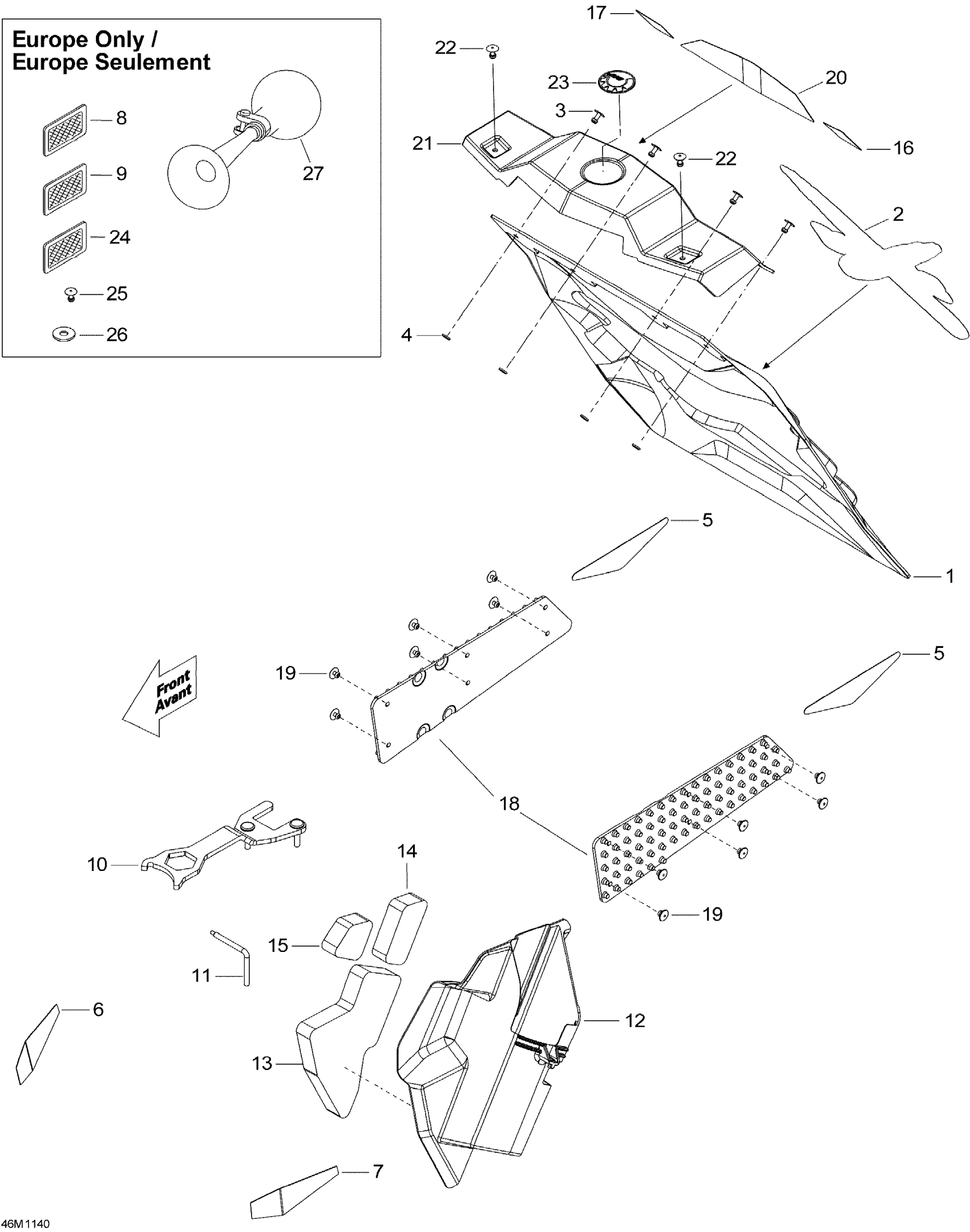

Ski-Doo MX Z X 600RS, 2011 09- Utilities Diagram

#

Description
Price

1

Snow Flap

520001441

$84.99

2

Decal X

516003647

$45.99

3

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

4

Flat Washer

517225900

$0.18

5

REAR REFLECTOR, RED - Call your local BRP dealership

520000237

Unavailable

5

Rear Reflector, Amber | Europe

520000311

Unavailable

6

Yellow, RH Front Reflector

520000718

$15.99

7

Yellow, LH Front Reflector

520000719

$15.99

8

Amber, Reflector

520000271

$19.99

9

White, Reflector

415037900

$22.99

10

WRENCH SUSPENSION - Call your local BRP dealership

520000988

Unavailable

11

Belt Installation Tool

417127044

$1.89

12

Tool Kit Rack

520000842

$15.99

13

Foam

520001059

$15.49

14

Foam

520001061

$12.99

15

Foam

520001062

$5.89

16

WARNING DECAL, SAFETY - Call your local BRP dealership

516005057

Unavailable

17

Warning Decal, Safety

516005058

Unavailable

18

Grip Plate Kit

860200164

$44.49

19

Pop Rivet 3/16"

293150103

$0.55

20

REFLECTOR - Call your local BRP dealership

520000764

$18.49

21

COVER - Call your local BRP dealership

520000750

Unavailable

22

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

23

BRP Logo 48 mm

219903305

$19.99

24

LENS - Call your local BRP dealership | Europe

510004350

Unavailable

25

Pop Rivet 3/16"

293150008

$0.50

26

Washer

517124300

$0.19

27

Horn

549011291

$35.99
