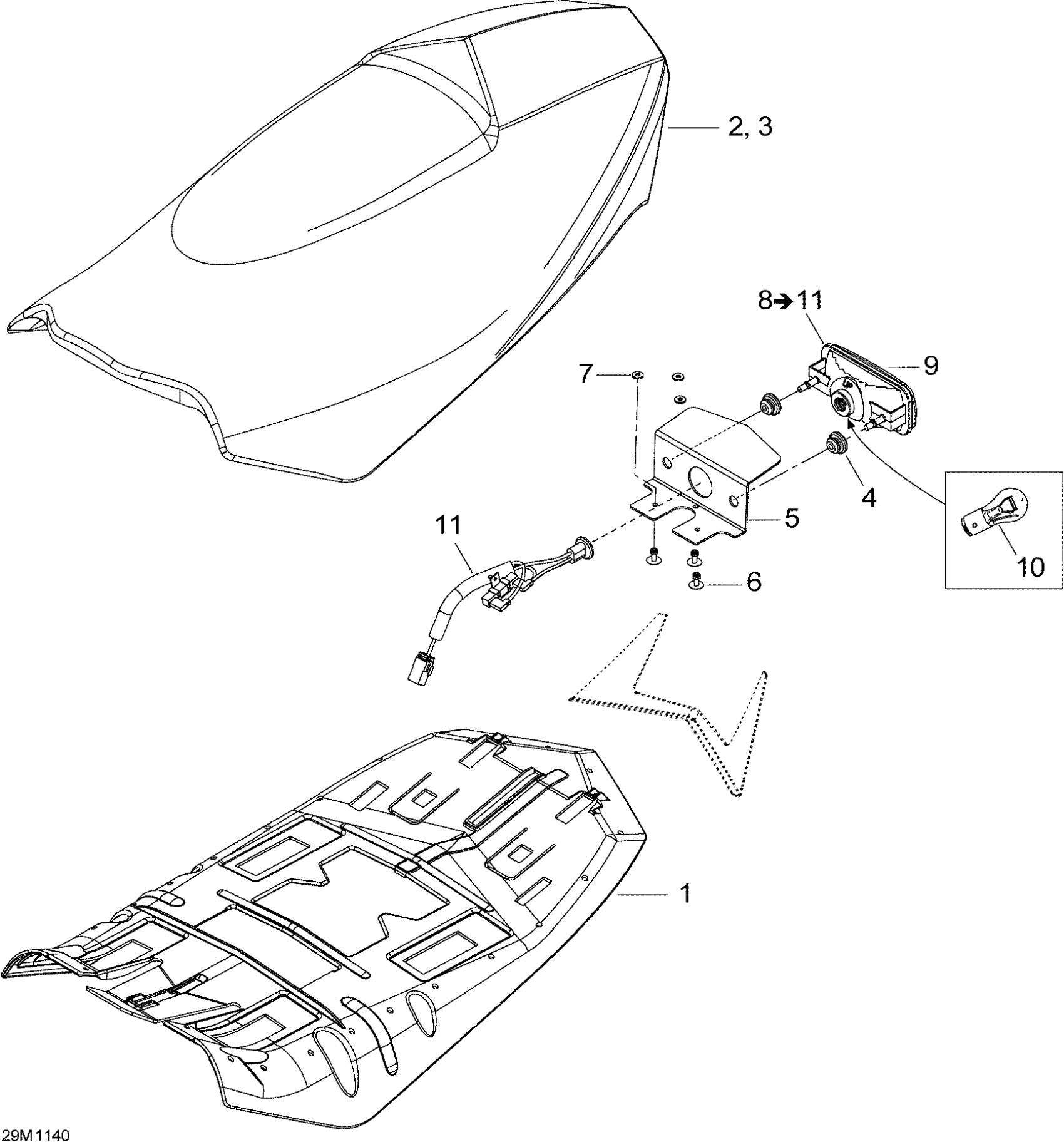

Ski-Doo MX Z X 600RS, 2011 09- Seat Diagram

#

Description
Price

1

Seat Base

510005407

$67.99

2

SEAT FOAM - Call your local BRP dealership

510005122

Unavailable

3

SEAT COVER - Call your local BRP dealership

510005123

Unavailable

4

Stopper Rubber

705014429

$5.95

5

SUPPORT - Call your local BRP dealership | MX Z X 600RS

520000890

Unavailable

6

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

7

WASHER - Call your local BRP dealership | MX Z X 600RS

517297900

Unavailable

8

REAR LIGHT ASS'Y - Call your local BRP dealership | MX Z X 600RS, Includes 20 to 23

511000507

Unavailable

9

Rear Lens Box | MX Z X 600RS

710000652

Unavailable

10

BULB - Call your local BRP dealership | MX Z X 600RS

710000653

Unavailable

11

WIRING HARNESS - Call your local BRP dealership | MX Z X 600RS

511000508

Unavailable
