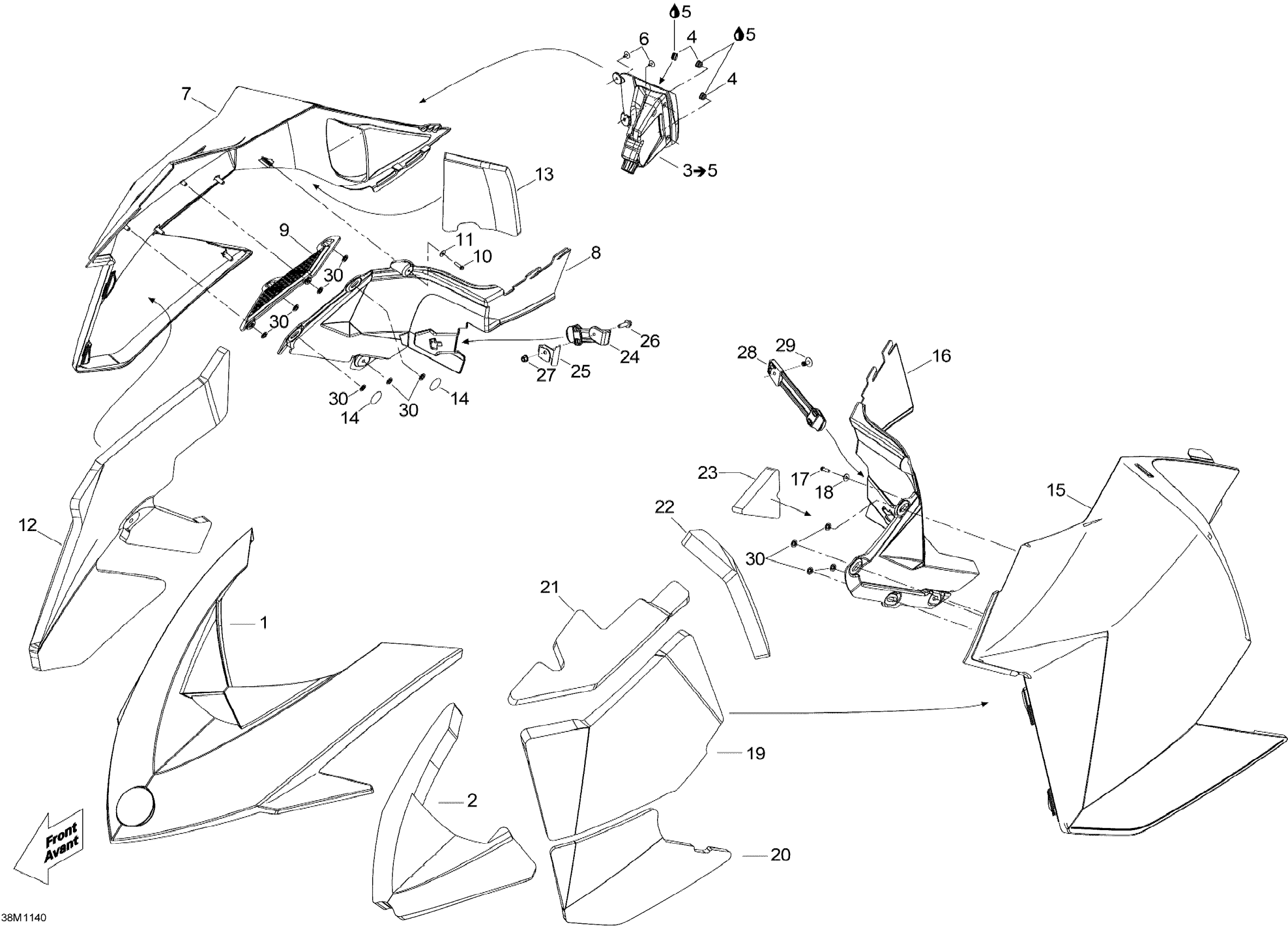

Ski-Doo MX Z X 600RS, 2011 Hood Diagram

#

Description
Price

1

Yellow Hood

517304529

$143.05

2

Hood Foam

517304913

$20.74

3

Black, RH Console | Includes 400 to 400b

517304322

$33.82

4

Black, Cap

275500241

$2.76

5

Loctite, Black Max, 3 ml

413408300

$24.58

6

Pop Rivet 5/32"

293150170

$3.02

7

Deep Black, RH Panel

517304029

$206.89

8

Deep Black RH Moulding Panel

517303671

$26.89

9

Grille

517303622

$29.20

10

Hex. Flange Screw K40 X 16

241141660

$1.25

11

Flat Washer 4 mm, Stainless

234042600

$0.92

12

RH Center Foam

517304883

$40.74

13

RH Panel Rear Foam

517304884

$15.35

14

Adhesive Patch

518325560

$4.34

15

Deep Black, LH Panel

517304030

$206.89

16

Deep Black, LH Moulding Panel

517303673

$26.89

17

Hex. Flange Screw K40 X 16

241141660

$1.25

18

Flat Washer 4 mm, Stainless

234042600

$0.92

19

LH Panel Center Foam

517304887

$26.12

20

LH Panel Lower Foam

517304888

$20.74

21

LH Panel Upper Foam

517304889

$18.43

22

LH Panel Rear Foam

517304890

$13.95

23

Foam

517304891

$18.43

24

RH Panel Latch

517303612

$9.49

25

Latch Support

517304221

$6.49

26

Hex.Flange Screw M5 X 20

207652044

$1.56

27

Hex. Flange Elastic Nut M5

233251414

$1.66

28

LH Panel Latch

517303808

$9.91

29

Pop Rivet 3/16”

293150108

$1.23

30

Push Nut

732610072

$1.72
