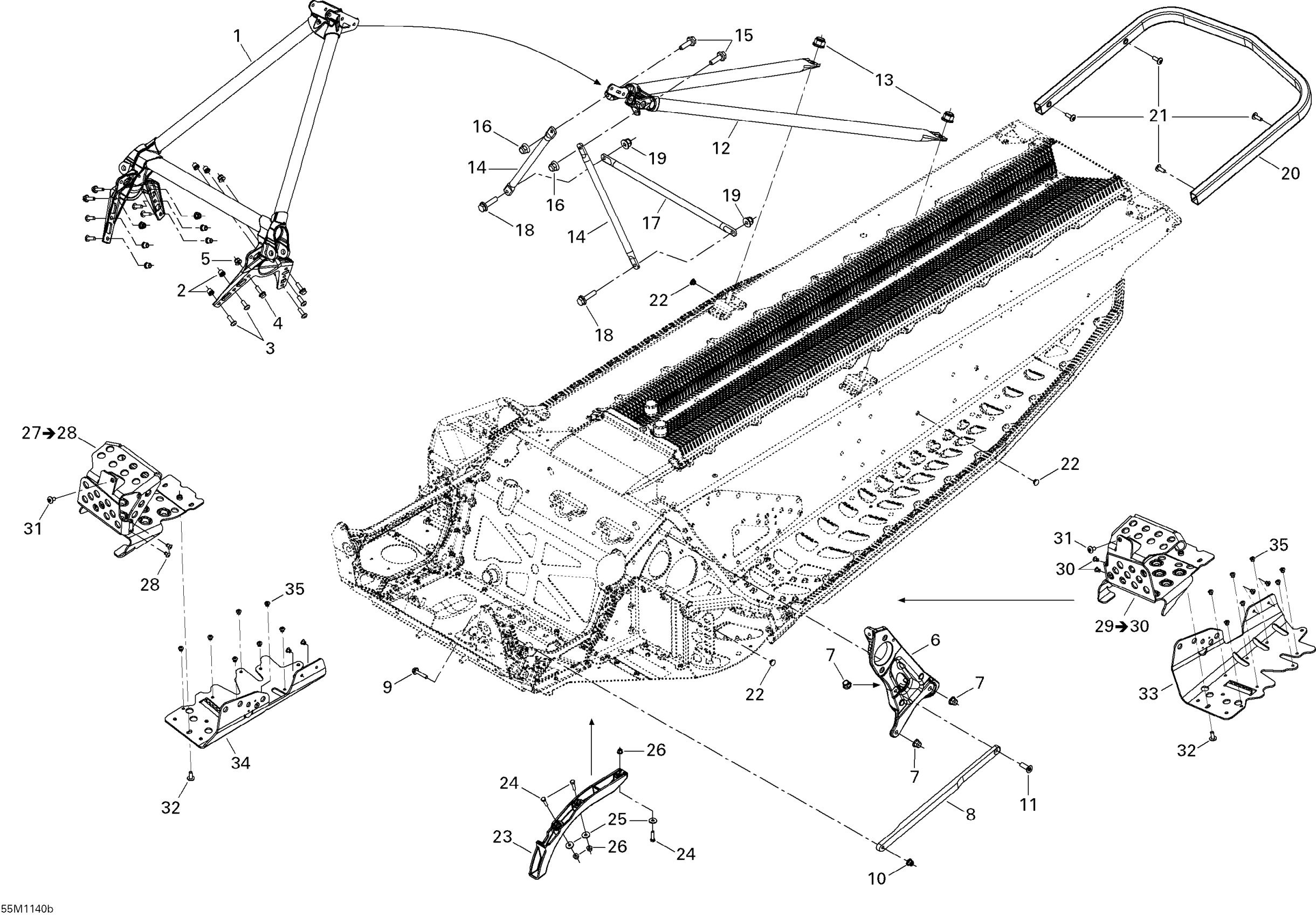

Ski-Doo MX Z X 600RS, 2011 Frame and Components 2 Diagram

#

Description
Price

1

Front Member

518327565

$306.69

2

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

3

Hex. Flange Screw M6 X 20

207662044

$1.91

4

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Pulley Support

518328346

$114.15

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

LINK - Call your local BRP dealership

518326118

Unavailable

9

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Torx Screw M8 X 25, Scotch Grip

250000143

$2.03

12

Rear Member

518326559

$237.28

13

Hex. Flange Elastic Nut M8

233281414

$1.31

14

Upper Lateral Column Support

518325114

$20.12

15

Hex. Flange Screw M6 X 20

207662044

$1.91

16

Elastic Flange Nut M6 X 1.0

233261416

$2.00

17

Center Column Support

518325115

$20.12

18

Hex. Flange Screw M6 X 25

207662544

$0.61

19

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

20

Clear Rear Bumper

518324980

$94.00

21

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

22

Full Moon Dart 8 mm

293730041

$2.06

23

Front Tunnel Protector | Includes 1700 to 1700a

518326973

$17.13

24

Hex. Screw M5 X 20

207152044

$0.85

25

Washer | DS 650 X

391301600

$0.46

26

Hex. Flange Elastic Nut M5

233251414

$1.91

27

FOOTREST RH - Call your local BRP dealership | Includes 27 to 28

518326396

Unavailable

28

Avex Rivet

390909100

$0.28

29

FOOTREST LH - Call your local BRP dealership | Includes 29 to 30

518326397

Unavailable

30

Avex Rivet

390909100

$0.28

31

Torx Truss Screw M6 X 12

250000767

$1.91

32

Torx Screw M6 X 16

250000365

$2.00

33

LH REINFORCEMENT - Call your local BRP dealership

518326522

Unavailable

34

RH REINFORCEMENT - Call your local BRP dealership

518326523

Unavailable

35

Pop Rivet 3/16"

390402200

$0.30
