Partiron

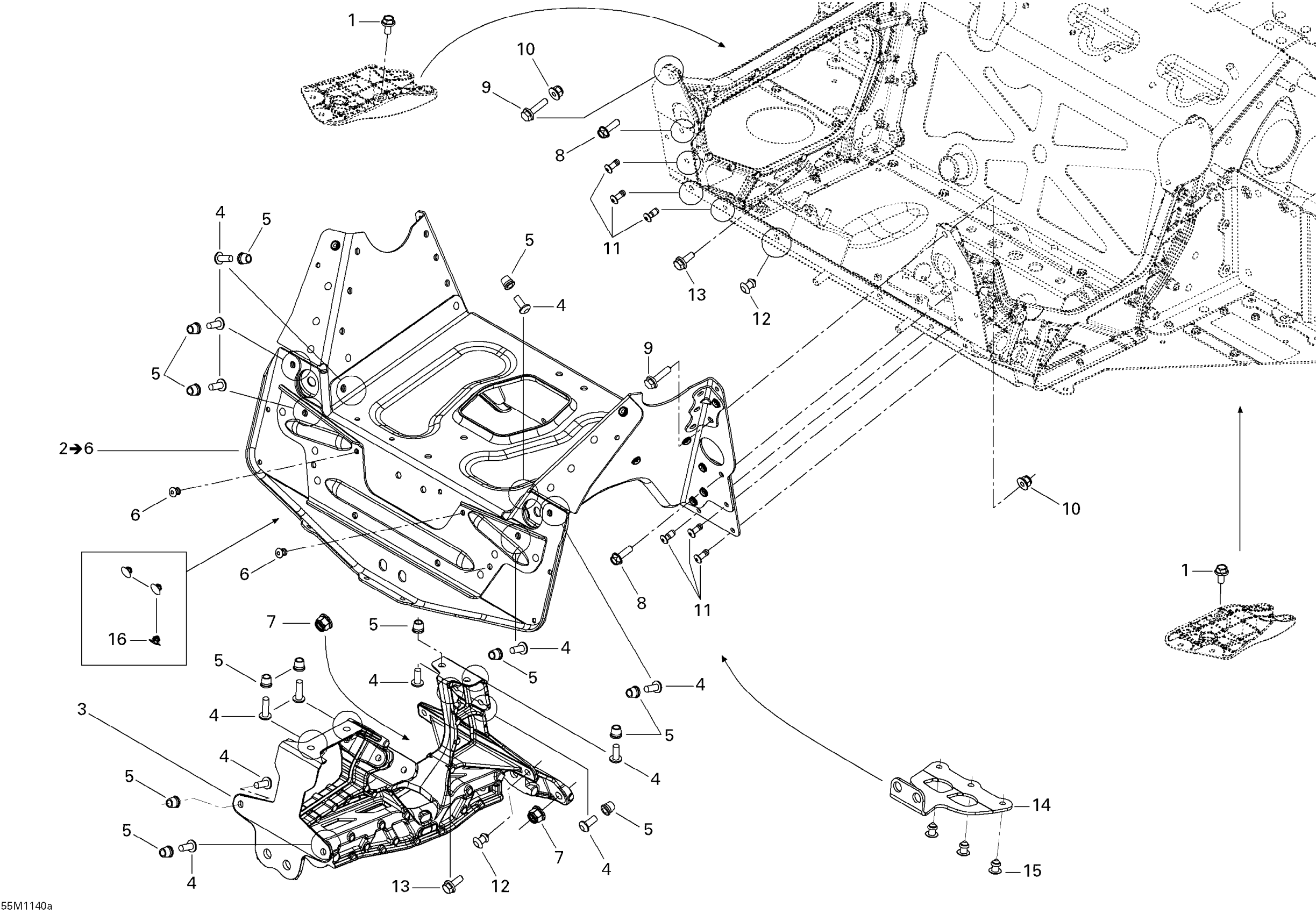

Ski-Doo MX Z X 600RS, 2011 Frame and Components 1 Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

2

S-MODULE ASS'Y - Call your local BRP dealership | Includes 300a to 300e

518327503

Unavailable

3

Front Suspension Support

518327487

$259.67

4

Hex. Flange Screw M6 X 20

207662044

$1.91

5

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

6

Stavex Rivet

293150144

$0.75

7

Hex. Flange Elastic Nut M8

233281414

$1.31

8

Hex. Flange Screw M6 X 16

210261650

$1.40

9

Hex. Flange Screw M6 X 25

207662544

$0.61

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

11

Monobolt Rivet, 4.8 mm

293150191

$0.93

12

Monobolt Rivet 6.4

293150182

$2.82

13

Hex. Flange Screw M6 X 16

207661644

$0.70

14

MODULE REINFORCEMENT - Call your local BRP dealership

518326466

Unavailable

15

Ornit Rivet 6,5 X 14.5

293150266

$1.88

16

Full Moon Dart 5 mm

293730042

$2.06
