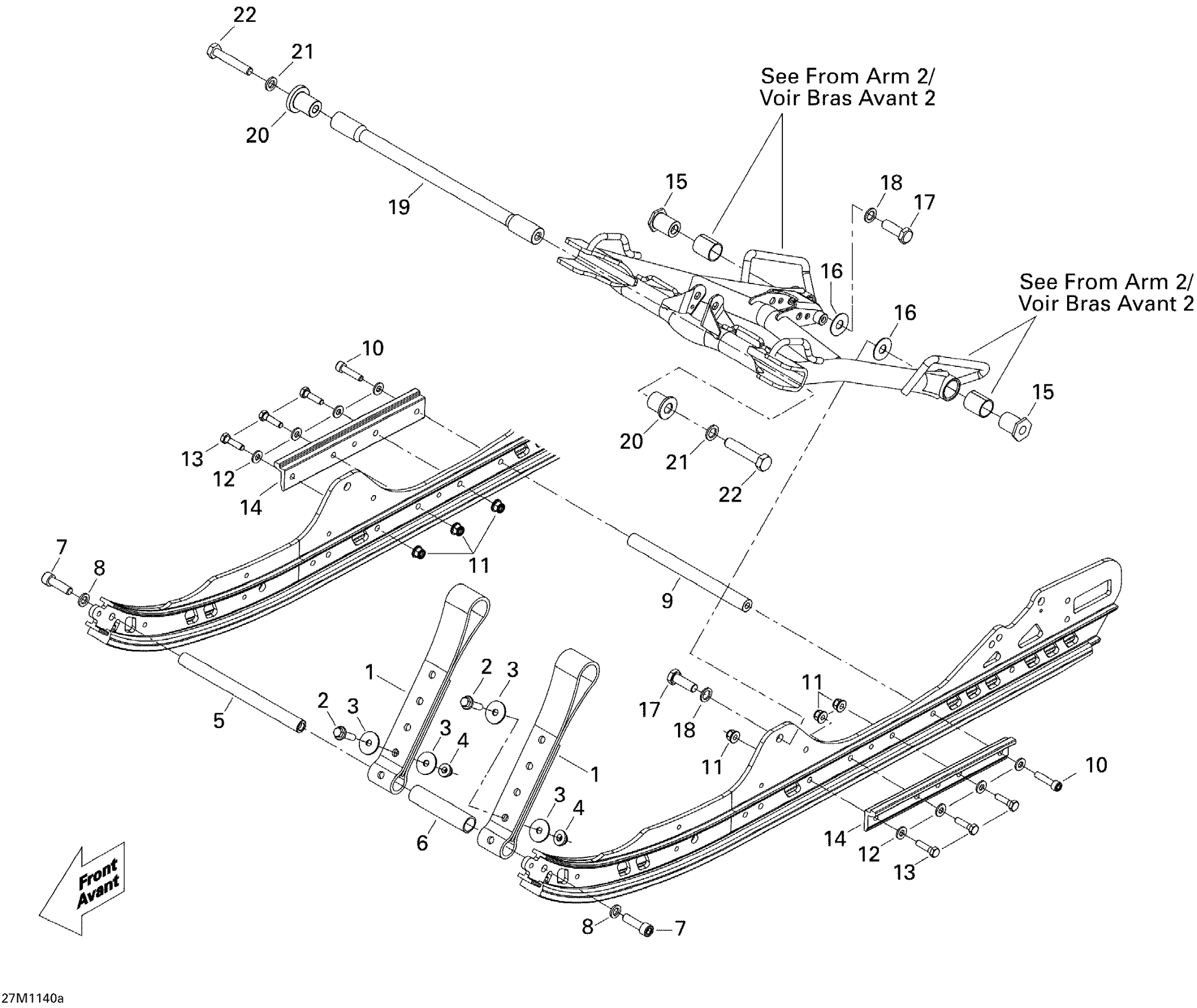

Ski-Doo MX Z X 600RS, 2011 Front Arm 1 Diagram

#

Description
Price

1

Stopper Strap

503192360

$19.37

2

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

$1.49

3

Flat Washer

224081301

$0.84

4

Hex. Flange Elastic Nut M8

233281414

$1.31

5

RUNNER AXEL - Call your local BRP dealership

503192115

Unavailable

6

Spacer

503189265

$4.61

7

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.60

8

Washer

503189564

$0.70

9

Axle

503151600

$14.90

10

Socket Head Screw M8 X 35, Scotch Grip

205583544

$2.48

11

Hex. Flange Elastic Nut M8

233281414

$1.31

12

Washer

503189157

$3.10

13

Hex. Screw M8 X 30

207183044

$1.06

14

RAIL REINFORCEMENT - Call your local BRP dealership

503191804

Unavailable

15

Lower Axle

503191966

$14.90

16

Washer

503190656

$2.82

17

Hex. Cap Screw M12 X 35

250000537

$3.01

18

Washer

503189276

$3.10

19

Slide Bushing

503192713

$91.01

20

Bushing

503192721

$33.55

21

Washer

503189564

$0.70

22

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.09
