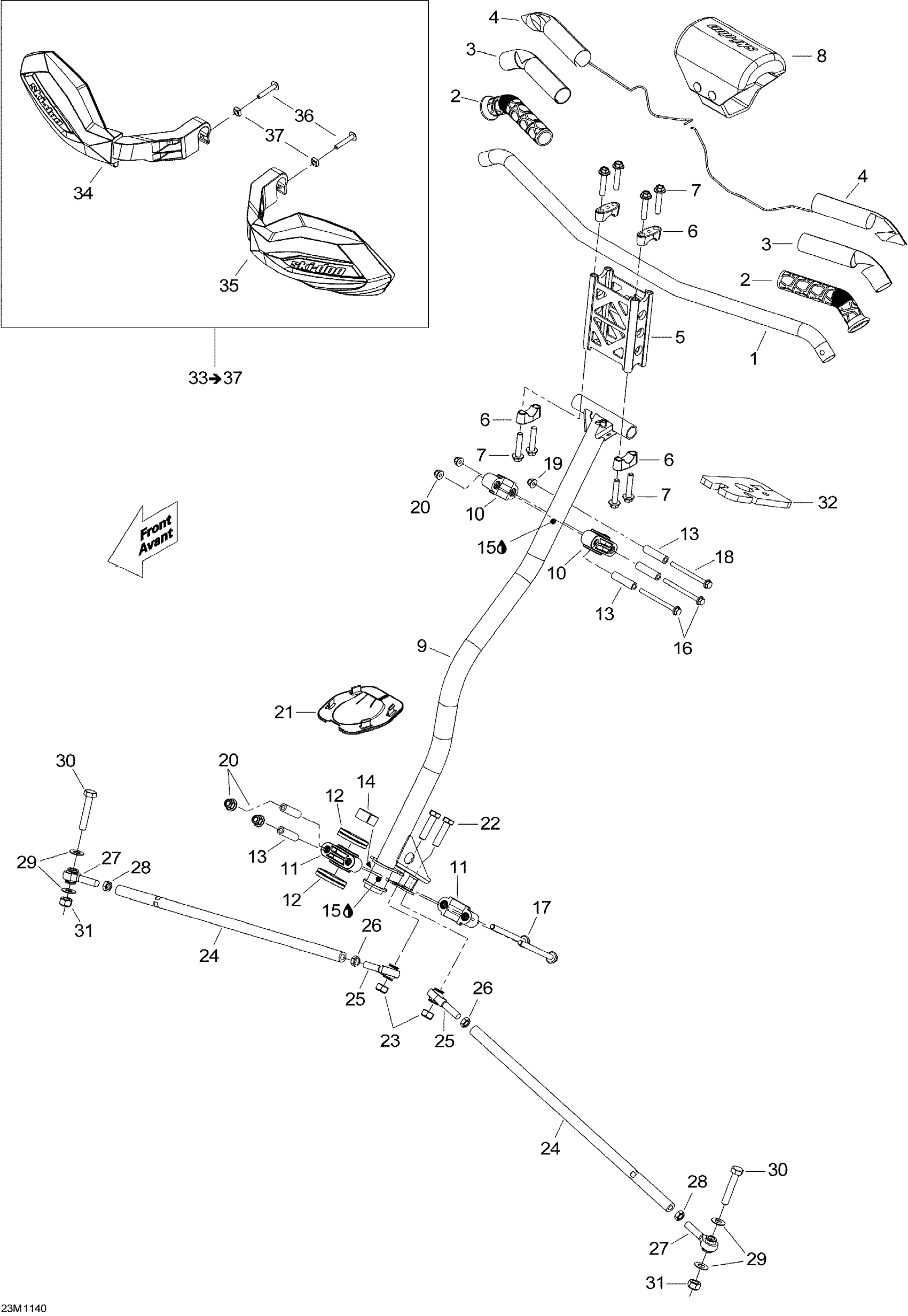

Ski-Doo MX Z X 600RS, 2011 Steering Diagram

#

Description
Price

1

BLACK HANDLE BAR - Call your local BRP dealership

506152087

Unavailable

2

Grip

506152486

$14.71

3

Heating Element 20W

506152484

Unavailable

4

Insulant

506152360

$5.89

5

Handle Bar Extension | X

506152457

Unavailable

6

Steering Support | Includes 40 to 40a

506152751

$10.09

7

Hex. Flange Screw M8 X 40

250000352

$3.26

8

STEERING PAD - Call your local BRP dealership

506152522

Unavailable

9

MAIN TUBE - Call your local BRP dealership

506152478

Unavailable

10

Half-Housing

506152293

$10.23

11

Lower Half-Housing

506152217

$5.57

12

Lower Vibration Ring

506152518

$4.52

13

Housing Bushing

506152297

$10.23

14

RETAINING RING - Call your local BRP dealership

506152440

Unavailable

15

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable

16

Hex. Flange Screw M6 X 70

207667056

$3.61

17

Hex. Flange Screw M6 X 70

207667044

$0.70

18

Hex. Flange Screw M6 X 70

207667056

$3.61

19

Elastic Flange Nut M6 X 1.0

233261416

$1.74

20

Elastic Flange Nut M6 X 1.0

233261416

$1.74

21

Plate

506152163

$10.23

22

Hex. Screw M10 X 1.5 X 40

207004034

$1.74

23

Elastic Stop Nut M10

232500416

$1.56

24

ROD_TIE ASSY - Call your local BRP dealership

506152499

Unavailable

25

LH Thread Ball Joint

506152081

$39.97

26

LH Threaded Hex. Jam Nut M10

250100016

$0.72

27

RH Threaded Ball Joint

506152019

$39.97

28

RH Threaded Hex. Jam Nut M10

732610010

$0.72

29

Washer

506152194

$4.42

30

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

31

Elastic Stop Nut M10

232500416

$1.56

32

Bushing

506152476

$9.98

33

Yellow Wind Deflector Kit

860200710

$98.99

34

Yellow Wind Deflector Kit

860200710

$98.99

35

Yellow Wind Deflector Kit

860200710

$98.99

36

PHILLIPS SCREW M6 X 35 - Call your local BRP dealership

250000501

Unavailable

37

SQUARE NUT M6 - Call your local BRP dealership

250000498

Unavailable
