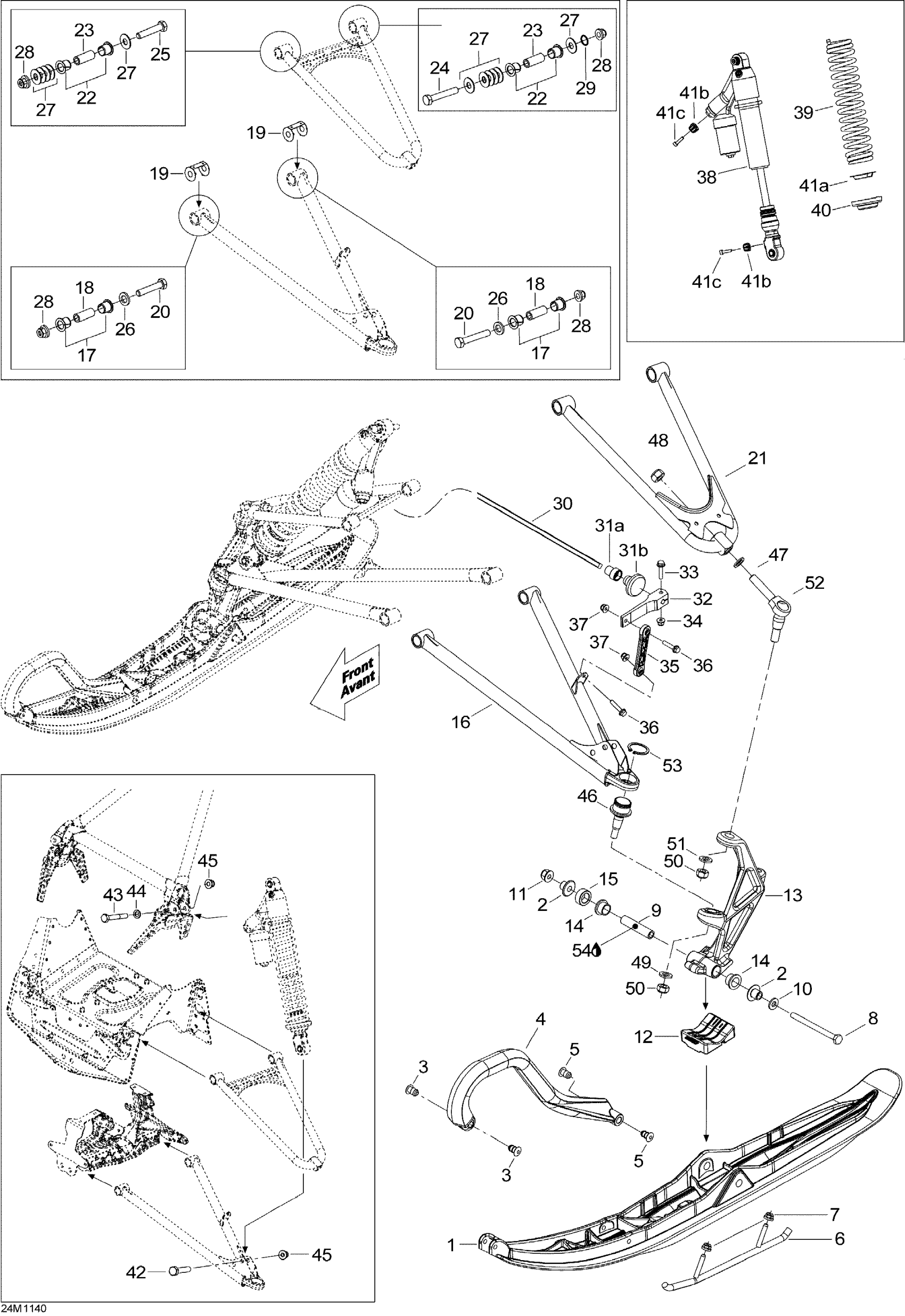

Ski-Doo MX Z X 600RS, 2011 07- Front Suspension And Ski Diagram

#

Description
Price

1

Black Pilot Ski 5.7X

505072205

$153.49

2

Ski Bushing

505071781

$16.18

3

Retainer 17mm long

505071812

$5.95

4

HANDLE_SKI - Call your local BRP dealership

505071674

Unavailable

5

Retainer 23mm Long

505072133

$6.78

6

Round Carbide Runner

860201043

$109.99

7

Hex. Flange Elastic Nut M8

233281414

$1.47

8

Hex. Screw M10 X 130 | Model-RT STD

250000703

$9.91

9

Spacer

506133300

$23.99

10

Washer

732900049

$0.58

11

Hex. Flange Elastic Nut M10

233201414

$1.58

12

Ski Stopper

505072594

$18.49

13

LH SKI LEG - Call your local BRP dealership

505073064

Unavailable

13

RH SKI LEG - Call your local BRP dealership

505073065

Unavailable

14

Leg Bushing

505072690

$12.49

15

Spacer

505072807

$19.49

16

RH LOWER ARM - Call your local BRP dealership

505072654

Unavailable

16

LH LOWER ARM - Call your local BRP dealership

505072655

$264.99

17

Cushion

503191766

$5.93

18

Aluminum Bushing

505072401

$18.73

19

Wear Plate

505072634

$6.29

20

Screw Hex. M10 X 70

250001024

$2.11

21

LH UPPER ARM - Call your local BRP dealership

505073188

Unavailable

21

RH UPPER ARM - Call your local BRP dealership

505073190

Unavailable

22

Bushing

505073018

$10.13

23

Sleeve

505072143

$9.00

24

Screw Hex. M10 X 70

250001024

$2.11

25

Screw Hex. M10 X 60

250001023

$2.11

26

Washer

503189564

$0.74

27

Washer

505072392

$4.76

28

Hex. Flange Elastic Nut M10

250100165

$0.85

29

O-Ring

505072448

$2.32

30

Stabilisator

505072602

$68.99

31a

Bushing

505072064

$2.32

31b

Cap

572091300

$12.99

32

Stabilisator Lever

505072394

$18.73

33

Hex. Flange Screw M6 X 30

207663046

$1.69

34

Elastic Flange Nut M6 X 1.0

233261416

$2.11

35

Sway Bar Double Joint Link

505072204

$21.99

36

Hex. Flange Screw M6 X 30

207663046

$1.69

37

Elastic Flange Nut M6 X 1.0

233261416

$2.11

38

RH FFRONT SHOCK - Call your local BRP dealership

505073084

Unavailable

38

LH FFRONT SHOCK - Call your local BRP dealership

505073083

Unavailable

39

DEEP BLACK SPRING - Call your local BRP dealership

505072845

Unavailable

40

Spring Stopper

505072635

$35.99

41a

Cap

706200793

$4.69

41b

Adjustment Knob

505072753

$2.19

41c

Allen Screw M3 X 0.5 X 10

250000644

$2.11

42

Hex. Screw M10 X 55

207005544

$2.22

43

Hex. Screw M10 X 1.5 X 65

207006544

$2.89

44

Washer

503189564

$0.74

45

Hex. Flange Elastic Nut M10

233201414

$1.58

46

Ball Joint

505073636

$51.99

47

Washer

503189276

$3.28

48

Hex. Elastic Hex. Nut M12

250100089

$0.46

49

Flat Washer 12 mm

234021410

$0.72

50

Hex. Elastic Hex. Nut M12

250100089

$0.46

51

Washer

503189276

$3.28

52

Upper Ball Joint

505072257

$17.58

53

Circlip

293370035

$2.64

54

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
